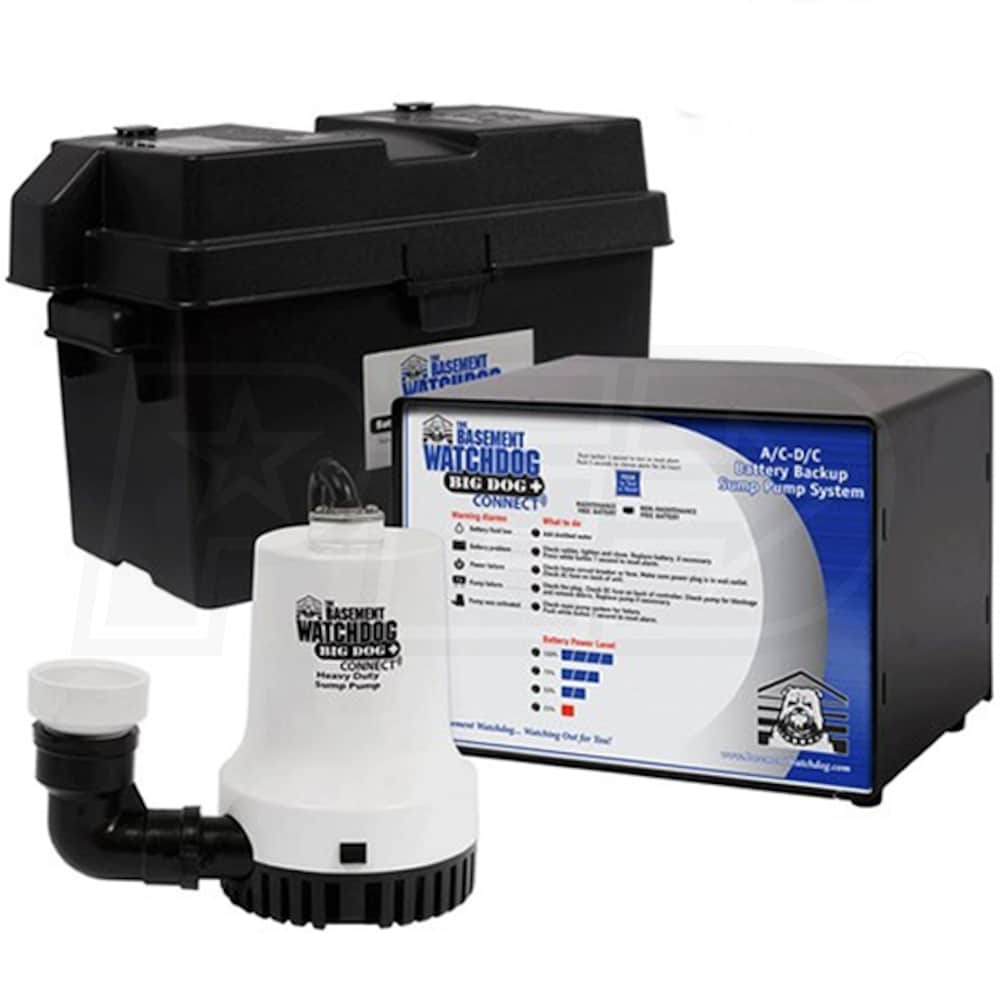

Basement Watchdog BWD12120C - BWD12120C - Big Dog Backup Sump Pump (2200 GPH @ 10')

Style	GPH 3500 Gallons
HP N/A Horse Power	Switch Type

Protect Your Basement from Flooding
•Automatically starts when your existing sump pump fails
•Senses power outages, malfunctions, stuck floats and more

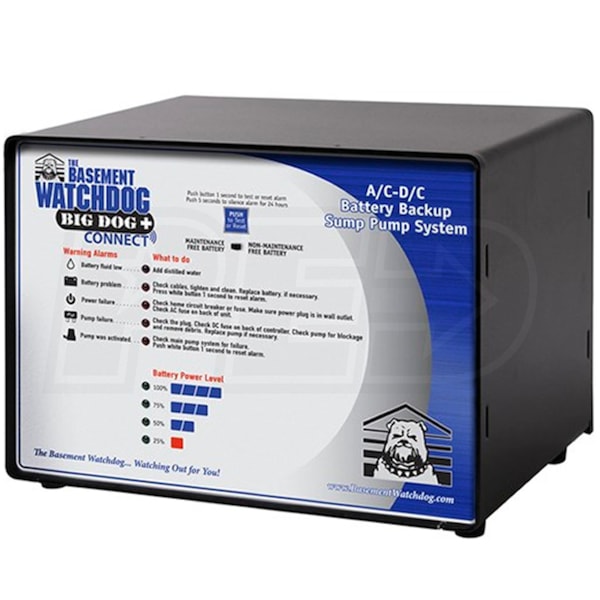

Exclusive Monitoring System w/ Weekly Self-Test
•Computer-controller monitors power conditions and battery level
•Sounds alarm & flashes during failure or required maintenance
•Indicator light displays remaining battery strength

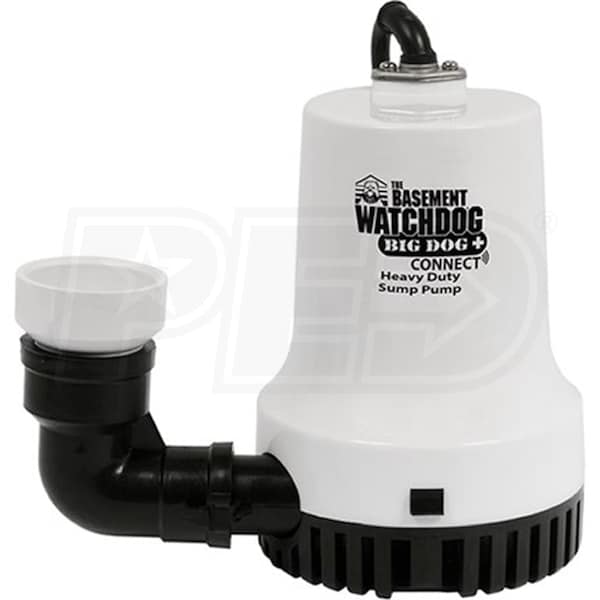

Backup Sump Pump
•Empties the sump pit in seconds after a malfunction or outage
•Pumps 3500 gallons-per-hour @ 0’ lift (or 2200 GPH @ 10’ lift)
•Runs on 120-volt AC power when power is on
•Switches to 12-volt DC battery power when AC power fails

20-Amp Battery Charger
•Quickly recharges battery when power is restored
•Shuts off completely to prolong the life of the battery

Dual Float Switch
•Turns on the pump to make sure its working
•Added redundancy for protection and piece of mind
•Only needs to move 1/4" to activate the pump

BATTERY & BATTERY ACID IS SOLD SEPARATELY

Model
Model Number:	BWD12120C
UPC:	717301121203
Manufacturer:	Basement Watchdog
Housing Material:	Thermoplastic
Motor
Motor Amps:	10-12 Amps
Battery Included:	No
Pump
Float Type:	Vertical Float
GPH @ 0 feet:	3500 GPH
GPH @ 10 feet:	2200 GPH
Overview
Gallons Per Hour:	3500
Battery Recharger:	20 Amps
Weight:	30 Lbs. (13.61 kilograms)
Dimensions:	L x W x H (0.00 x 0.00 x 0.00 cm)
Consumer Warranty:	2 Years

Download Documents

Owners Manual

*Ask Jim about this item. Sorry, no repair questions:

*Name:

*State:

*Email:

Receive Weekly How-To Tips & Specials

*Required Field

6 Questions

Q: Will the watchdog big dog bwd12120c pump out water at 20ft.
by Jim W. from Minnesota on March 24, 2012

A: The max vertical height the Big Dog can pump out is around 13-15’. Anything over 13', it will not be able to pump reliably. It can also usually do around 25’ sideways provided the horizontal run does not slant upwards at all.
by Jim, Product Expert

Q: Can this Big Dog System be run using 2 batteries in series for longer run time?
by Howard Mark from Pennsylvania on May 20, 2011

A: Yes, the Big Dog is the only Basement Watchdog backup system that will allow 2 batteries to be connected in PARALLEL to provide a longer run time.
by Jim, Product Expert

Q: I currently have the small emergency backup sump pump (watchdog), which no longer works. I am looking to replace it with watchdog big dog backup system. Would the discharge pipe have to be modified to accommodate the new pump? Also, I just replaced the (6 hour)battery last year and it seems fine. Would it be possible to use this battery with the more powerful pump?
by Bill from Ohio on March 05, 2011

A: All of the Basement Watchdog Backup Pumps we carry accept a 1 1/2" discharge pipe, incuding the Big Dog. The battery required for the Big Dog is the 30HDC140S
will run the Big Dog system for up to 7 1/2 hours.
by Jim, Product Expert

Q: I have pumps and only want the battery backup electronic system. can i buy just the battery backup without the pump?
by Bob Braga from Massachusetts on February 12, 2011

A: We only sell the complete systems. You might try contacting the manufacturer @ (800) 991-0466 for more information about individual parts.
by Jim, Product Expert

Q: Do I need to leave my battery backup system charging at all times?
by Patrick Mcclone from Wisconsin on January 03, 2011

A: To be completely sure your backup system is fully functional during a power outage or weather event, these systems need to stay plugged in at all times.

by Jim, Product Expert

Q: how many hours backup does this provide in case the power goes out. we are looking for a 24 hour back up pump.
by Diana from New Jersey on January 03, 2011

A: This system does not include a battery, and that is what determines the hours of backup a system can provide. There is also the factor of how often a system is running that determines the amount of backup time.

by Jim, Product Expert

Overall
Rating

5.0

(Based on 1 Reviews)

Sort By

June 07, 2008

Jon Hoch, Founder
Bolingbrook, IL

Why It Is Called the Big Dog

The "Emergency" and "Special" models contain some great features. But, the "Big Dog" takes the concept to a whole new level.

It features an extremely powerful 20-amp battery charger that can recharge while it's pumping. Plus, you can connect a second battery to the "Big Dog" to double its run time.

Best of all, it turns on weekly, actively looking for vulnerabilities. For example, the "Big Dog" can actually sense if the backup sump pump is clogged or broken.

While we don't recommend it, this bad f... more
