Protect Your Basement from Flooding •Provides both primary and backup pumping capabilities •Primary pump will operate as long as it is receiving A/C power •A/C fails or excessive water into sump than pump can handle •The backup sump pump will begin pumping automatically
Exclusive Monitoring System •Detects irregularities, sounds an alarm, & pinpoints problems •Maintains and recharges battery automatically •Alarm can be silenced during a power outage •Output terminals for connection to a security system/auto-dialer

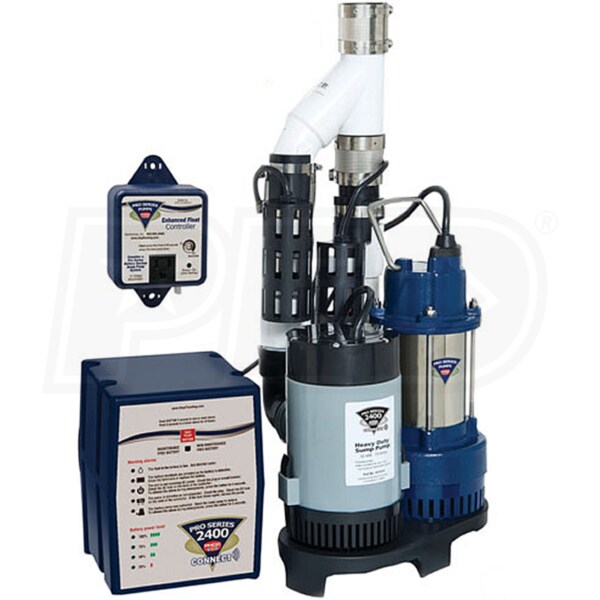

Combination System Includes: •1/3 HP-PSC Primary Pump (3000 GPH @ 10' Lift) •PHCC 2400 12V Backup Pump (2400 GPH @ 10' Lift) •Backup system controller/charger with fluid sensor •Primary pump controller (DFC1) with caged dual float switch •2 Check valves & 1-1/2" Rubber Union •Sump Foot™ - raised platform for both pumps •Battery Box & Battery Fill Bottle
Can accommodate 1 or 2 Batteries (Sold Separately)
Q: PS-C33: Will it fit in a 12" dia sump pit? Can I use a sealed battery? Thanks. by Gregg Larson from Washington on July 29, 2011
A: The Pro Series Pair of Pumps combination system is compact and will fit in a sump pit as small as 12” wide. It measures 23¾” inches from the bottom of the pump stand to the top of the Yconnector where it will be attached to the discharge pipe. The battery fluid sensor is designed to fit the Pro Series Standby batteries. Measuring the battery fluid is one of the most important features of the system, since about 80% of backup sump pump failures are the result of a battery that has dried out. For this reason, obviously a sealed battery is not recommended. by Jim, Product Expert
Q: what type of switch does the backup pump in the pro seriespsc33 use? Is the obove system a very good system? I don't need a wet basement when returning home. Jim by Jim Follon from Minnesota on June 21, 2011
A: Each pump on this system utilizes a dual float switch.
The dual float switch on the primary pump contains two large floating rings enclosed within a protective cage. Water will lift the bottom float by ¼”, which will activate the pump. If for any reason the lower float does not activate the pump, the water will rise to the second float, and it will activate the pump. As the pump evacuates the water from the pit, the floats will drop. The pump will run for an additional 10 seconds to extend the cycle after the lower float drops. The blue controller for the primary pump powers this switch.
During a power outage, or when more water is entering the sump than the primary pump can handle, the backup pump will automatically begin pumping. It also has a dual float switch, so if one float fails to activate the pump, the second float will activate the pump as soon as the water reaches that level. As the water recedes below the float switch, a timer in the control unit will run the pump an additional 25 seconds to empty the pit.
This is probably one of the better high output combo systems that we carry and I would highly recommend it. by Jim, Product Expert
