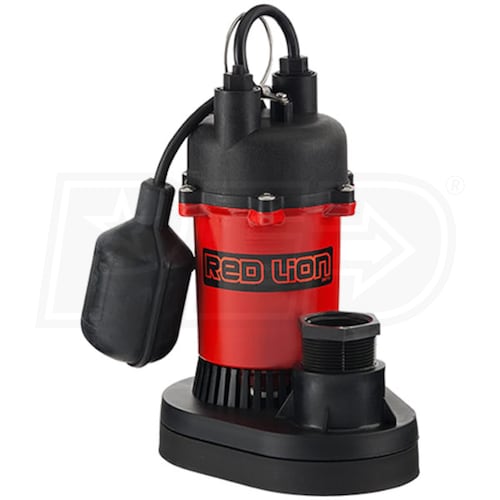

Automatic Submersible Sump Pump •Ideal for light water removal
1/4 HP PSC Motor w/ Closed Vane Impeller •Provides plenty of power to get the water moving
Reinforced, Engineered Thermoplastic Construction •Corrosion and rust-resistant
Piggyback Tethered Float Switch •Reliable automatic operation for basins 14" diameter or greater •Switch can be bypassed to run pump manually
Model
Model Number:
RL-SP25T
UPC:
010121118089
Manufacturer:
Red Lion
Made in USA:
No
Housing Material:
Thermoplastic
Min Sump Basin Size:
14 Inch
Motor
Motor Amps:
Running amps - 2 / Starting amps - 6
Thermal Protection:
Yes
Power Cord Length:
8 Feet
Oil Free Motor:
No
Pump
Float Type:
Piggy-Back Tether Switch

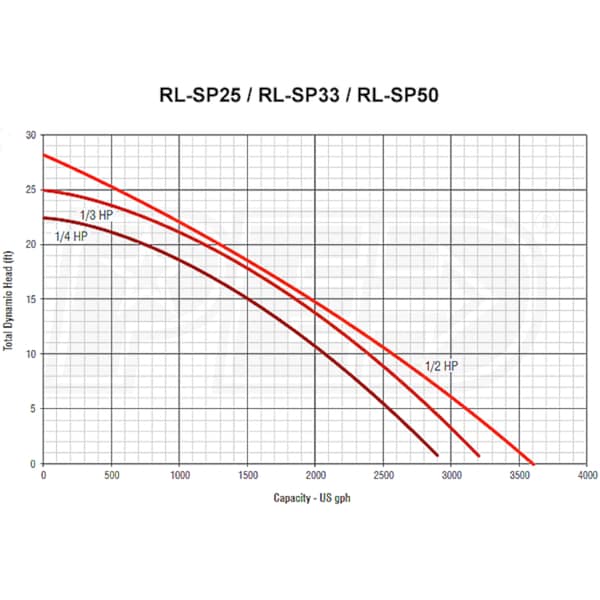

GPH @ 0 feet:
2900 GPH
GPH @ 5 feet:
2640 GPH
GPH @ 10 feet:
2100 GPH
GPH @ 15 feet:
1560 GPH
GPH @ 20 feet:
Off
Discharge Port Size:
1-1/2 Inch
Built-in check Valve:
No
Overview
Float On:
14.5 Inches
Manual Override:
Yes
Solid Handling:
None
Weight:
9 Lbs. (4.08 kilograms)
Dimensions:
L x W x H (0.00 x 0.00 x 0.00 cm)
Consumer Warranty:
2 Years
Download Documents
No documents available at this time
1 Question
Q: can a theter switch be replaced with afloat switch and what cost differance is there by Donna from Wisconsin on April 25, 2012
A: As long as the original switch utilizes a "piggyback" style plug and the pump and switch each have their own power cord, you can replace that tether switch with any other "piggyback" style Float Switch. Please note however that most "piggyback" style floats will only work for pumps that are rated at 1/2HP and 15 amps or less. by Jim, Product Expert
