Wayne CDUCAP850 - 1/2 HP Cast Iron Switch Genius Submersible Sump Pump
Your Online Wayne Backup Sump Pump Superstore.
|
 |
Wayne 1/2 HP Cast Iron Switch Genius Submersible Sump Pump
Switch Genius™ Technology
• The most reliable switch on the market today
• Lasts 5 times longer than standard float switches
• Electronic water sensor means no adjustments needed
Epoxy-Coated Cast Iron Construction
• Offers years of reliable, trouble-free operation
Thermally Protected Motor
• Oil-filled, prevents overheating
Reinforced Poly-Carbonate Impeller
• Offers reliable pumping
Top Suction Screen Filters
• Prevents debris from damaging motor
High Capacity 1½” NPT discharge
• Adaptable to 1¼” discharge
Designed for 11” diameter or larger sump basins
Will replace most submersible sumps without any plumbing changes
|
| Model |
| Model Number: | CDUCAP850 |
| UPC: | 040066212184 | | Manufacturer: | Wayne | | Housing Material: | Cast-Iron | | Min Sump Basin Size: | 11 Inch |
| Motor |
| Thermal Protection: | Yes | | Power Cord Length: | 8 Feet | | Oil Free Motor: | No |
| Pump |
| Float Type: | Intelli-Sense/Switch Genius | | GPH @ 0 feet: | 3900 GPH | | GPH @ 5 feet: | 3900 GPH | | GPH @ 10 feet: | 3150 GPH | | GPH @ 15 feet: | 2100 GPH | | GPH @ 20 feet: | 600 GPH | | Discharge Port Size: | 1-1/2 Inch | | Built-in check Valve: | No |
| Overview |
| Float On: | 8 Inches | | Float Off: | 3 Inches | | Manual Override: | No | | Solid Handling: | None | | Weight: | 16 Lbs. (7.26 kilograms) | | Dimensions: | L x 9.75W x 11.5H
(0.00 x 24.77 x 29.21 cm) | | Consumer Warranty: | 5 Years | | Spec Sheet: | View PDF  | |
|
Average Rating: 5.0 of 5.0
|
|
|
 |
 |
| Sump Pumps Direct Recommendation |
| By Sump Pumps Direct |
If you haven’t heard of Wayne Pumps before, you probably live in an area where sump pumps aren’t needed. They been making pumps for the last 7 decades, and if you haven’t owned one, you probably know somebody who has. Wayne is one of the largest manufacturers of pumps in the US. They stand behind their products and offer a wide selection of sump, sewage and utility pumps.
If you need to buy a pump, and you know that a 1/3 HP won't do the job, try the next step up. This 1/2 HP pump is a good option. If you’d like to know why we recommend this Wayne model, keep reading.
There are two main reasons we recommend this pump, the design and the switch.
If you want a pump to last for a long time, buy a pump that is designed well. This basically means purchasing a pump that is made out of cast iron, stainless or epoxy-coated steel. The CUDCAP850 is made out of both cast iron and epoxy-coated steel. Not only do these materials allow the pump to handle the heat build-up during operation, they also disperse the heat well, allowing the pump to run cooler. These materials offer better protection from debris that could damage the pump.
The second reason we recommend this pump is because of the switch. Switches often fail because there’s moving parts associated with them. The CUDCAP850 uses Switch Genius™ technology. Instead of a traditional vertical or tether float, this switch is electronic. There’s nothing that could get caught on the switch to make it stay on or not activate at all. Just remember clean the sensor bar on a regular basis and you should get years of operation from this pump.
|
 | |
Written July 10, 2010 |
| Great Sump Pump |
| By Brian Blauvelt (Branchburg, NJ) |
While I ordered the cast iron version of this pump, I was shipped the stainless steel version of the pump for no extra cost, due to an inventory issue at Wayne. That was a nice surprise. Shipping was quite quick also.

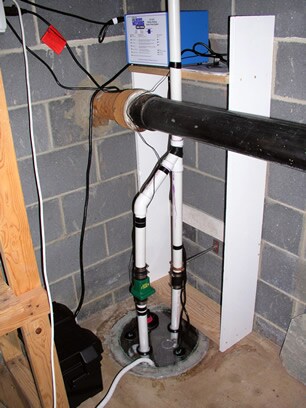

The pump install (with battery backup auxiliary pump and radon sump cover) went without a hitch and it looks to be a solid pump. Unfortunately, with the Cap Switch technology, I have been unable to test the pump as installed since the water level has to be high enough to trigger the switch.
In my area at the moment, it is dry, and I cannot get the water level in the sump pit to rise even filling it with a hose it drains as fast as it fills (the benefit of red slate under the foundation).
Given the 5 year warranty on the pump, there should be no issue if there is a problem with the pump when wet weather returns in the fall when I can test the sump pump. |
| |
Written May 12, 2010 |
| Working beautifully |
| By PATRICK CARRANO (Clark, NJ) |
My basement has a sump pump, but it failed... I began to panic ! The storm clouds were closing in, and I needed a new sump pump as of yesterday.
I remembered that a good friend told me about SUMP PUMPS DIRECT. I placed an order online, the pump was shipped to me, and it was placed in my hands just as fast as if I went in my truck and picked it up.
God bless you SUMP PUMPS DIRECT...Oh, and the check valve is working beautifully.
THANK YOU... THANK YOU VERY MUCH. |
|
|
