The Wayne spv800 - 1/2 hp cast iron pedestal pump w/ vertical float switch has been discontinued and is not available for purchase at this time.

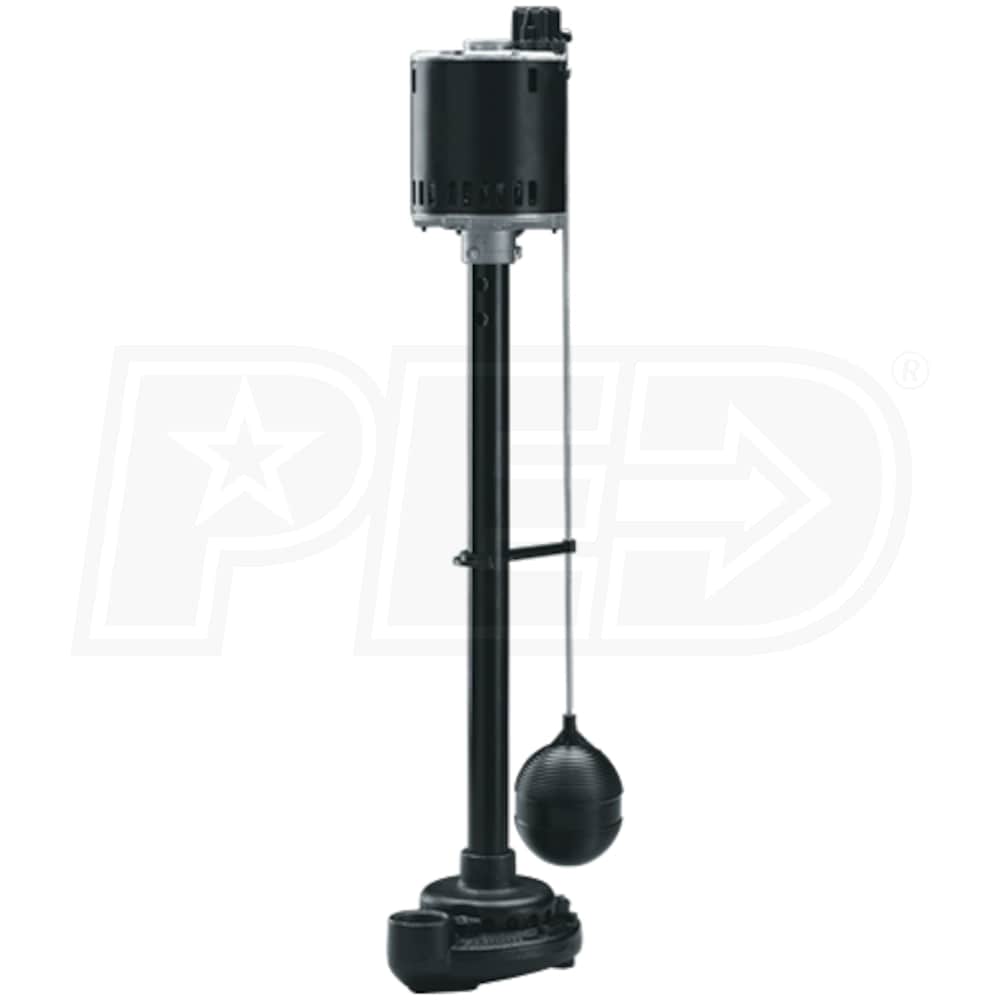

Wayne SPV800 - 1/2 HP Cast Iron Pedestal Pump w/ Vertical Float Switch

(Based on expert analysis, manufacturer ratings and customer reviews)

4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
42 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
StoreShippingPriceShop

Discontinued

$141.99
Sales Tax Extra
Visit Site

$149.95
Sales Tax Extra
Visit Site

$116.82
Sales Tax Extra
Visit Site
StoreShippingPriceShop

Discontinued

$141.99
Sales Tax Extra
Visit Site

$149.95
Sales Tax Extra
Visit Site

$116.82
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • 1
    Q&A
  • 42
    Reviews
  • Articles
  • Accessories
Style
Primary Sumps Pumps
GPH
4200
Gallons
HP
1/2
Horse Power
Switch Type
Vertical Float Switch
Offers Years of Reliable, Trouble-free Operation
Cast Iron housing
Corrosion-resistant steel column
Stainless steel fasteners

1/2 HP Heavy-Duty, Air-Cooled Motor
Thermally protected to prevent overheating

Reinforced Poly-Carbonate Impeller
Reliable pumping year after year

Adjustable Vertical Float
Easily change the operating cycle to fit your application

High Capacity 1 1/2" NPT discharge
Will replace most submersible sumps without any plumbing changes

Top Suction Design
Filters Debris and Prevents Clogging

2 Year Limited Warranty


Need Help? Ask Our Sump Pump Experts.
Model
Model Number:SPV800
UPC:040066100429
Manufacturer:Wayne
Housing Material:Cast-Iron
Min Sump Basin Size:14 Inch
Motor
Motor Amps:5.3 Amps
Thermal Protection:Yes
Power Cord Length:8 Feet
Oil Free Motor:Yes
Pump
Float Type:Vertical Float
GPH @ 0 feet:4200 GPH
GPH @ 5 feet:4200 GPH
GPH @ 10 feet:3800 GPH
GPH @ 15 feet:2900 GPH
GPH @ 20 feet:1500 GPH
Discharge Port Size:1-1/2 Inch
Built-in check Valve:No
Overview
Float On:Adjustable
Float Off:Adjustable
Manual Override:No
Solid Handling:None
Weight:27 Lbs. (12.25 kilograms)
Dimensions:8L x 8W x 34H
(20.32 x 20.32 x 86.36 cm)
Consumer Warranty:2 Years
Download Documents

Need Help? Ask Our Sump Pump Experts.
  1 Question
Q: Pedestal vs Non Pedestal sump pump??
by Jim Olson from California on January 03, 2011

A: Pedestal sump pumps have become less common and manufacturers are making fewer of them every year.

Here are some advantages of submersible pumps.

If you want a pump that's quiet, less likely to burn out, and can handle a high volume of water, a submersible pump is the style of pump to buy.

Noise Level - The motor and impeller are underwater, these pumps arenít as loud as a pedestal style pumps, that have their motor exposed above the sump pit.

Running Temperature Ė By having the motor below water, a submersible pump runs cooler especially during extended periods of use. Pedestal style pumps have no cooling fans, so their motor is cooled by the air around the pump, which is very ineffective during long run times.

Output & Solid Handling- Submersible sump pumps have higher outputs compared to Pedestal style sump pump. They're also able to handle solids that may be present that would otherwise clog a Pedestal pump.
by Jim, Product Expert
