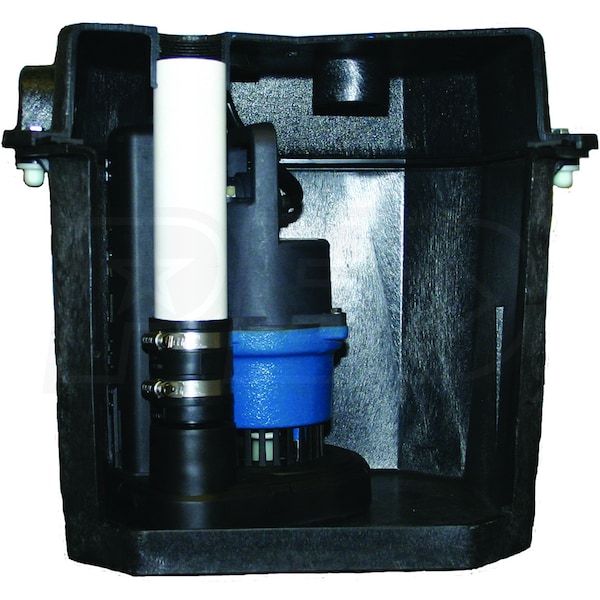

Barnes SU33LT - 1/3 HP Laundry Tray Pump System w/ SHUR-Switch™
Model: 131411
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2700
Gallons
Switch Type
Style
Primary
GPH
2700 Gallons
Switch Type
Vertical
Features
Features
- Barnes SU33LT - 1/3 HP Laundry Tray System w/ SHUR-Switch™
- Designed for residential laundry sinks, wet bars and other remote locations
- 6-Gallon Basin (15" x 15" x 14")
- Durable, corrosion-resistant polyethylene construction
- 1-1/2" Inlet & Discharge
- Makes it easy to connect to your current plumbing system
- Thermoplastic Pump Body, Strainer & Impeller
- Corrosion-resistant design provides long life in sump applications
- Cast Iron Motor Housing
- Allows for maximum heat dissipation for increased motor life
- 1/3 HP Permanent Split-Capacitor (PCS) Motor
- Thermally protected, energy-efficient design, only draws 3.4 FLA
- SHUR-Switch™, Patented Magnetic Vertical Float Switch
- Totally-enclosed design for maximum activation capability
- Oil-Lubricated, Single Row Ball Bearings
- Provides increased life-span and quieter operation
- Carbon/Ceramic/Buna-N Seal
- Assures maximum protection against pump failure
- High Capacity 1-1/2" Discharge
- Includes internal-check valve for easier installation
- Top-Suction Design w/ Built-In Strainer
- Helps prevent clogging and minimizes air lock
- 9-Foot, GFCI Compatible Power Cord
- For easier access to power outlets
- 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2520
GPH @ 10 feet
2040
GPH @ 15 feet
1380
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
19.5 Pounds
Consumer Warranty
2 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
14 Inches
Style
GPH
2700
Gallons
Switch Type
Style
Primary
GPH
2700 Gallons
Switch Type
Vertical
Features
Features
- Barnes SU33LT - 1/3 HP Laundry Tray System w/ SHUR-Switch™
- Designed for residential laundry sinks, wet bars and other remote locations
- 6-Gallon Basin (15" x 15" x 14")
- Durable, corrosion-resistant polyethylene construction
- 1-1/2" Inlet & Discharge
- Makes it easy to connect to your current plumbing system
- Thermoplastic Pump Body, Strainer & Impeller
- Corrosion-resistant design provides long life in sump applications
- Cast Iron Motor Housing
- Allows for maximum heat dissipation for increased motor life
- 1/3 HP Permanent Split-Capacitor (PCS) Motor
- Thermally protected, energy-efficient design, only draws 3.4 FLA
- SHUR-Switch™, Patented Magnetic Vertical Float Switch
- Totally-enclosed design for maximum activation capability
- Oil-Lubricated, Single Row Ball Bearings
- Provides increased life-span and quieter operation
- Carbon/Ceramic/Buna-N Seal
- Assures maximum protection against pump failure
- High Capacity 1-1/2" Discharge
- Includes internal-check valve for easier installation
- Top-Suction Design w/ Built-In Strainer
- Helps prevent clogging and minimizes air lock
- 9-Foot, GFCI Compatible Power Cord
- For easier access to power outlets
- 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2520
GPH @ 10 feet
2040
GPH @ 15 feet
1380
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
19.5 Pounds
Consumer Warranty
2 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
14 Inches
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2520
GPH @ 10 feet
2040
GPH @ 15 feet
1380
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
19.5 Pounds
Consumer Warranty
2 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
14 Inches
