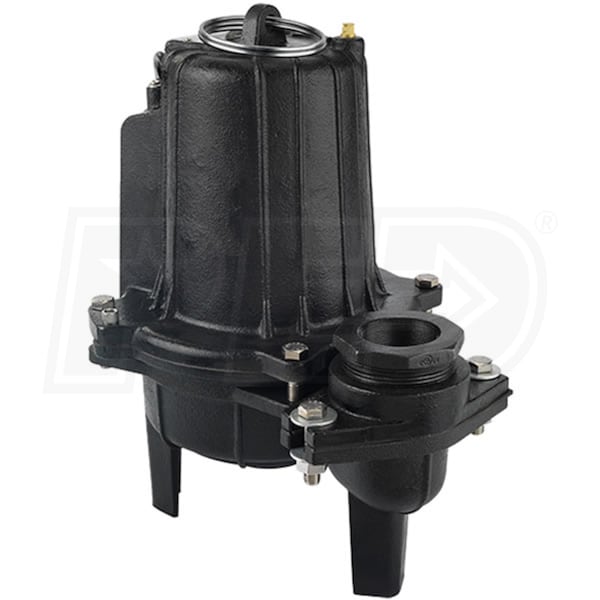

Blue Angel Pumps - 2 HP All Cast Iron Commercial-Grade Sewage Pump (2"/3") (Non-Automatic)

Blue Angel Pumps - 2 HP All Cast Iron Commercial-Grade Sewage Pump (2"/3") (Non-Automatic)
Our Price
Compare Prices
Shipping Info
Model: 200SW
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
$1,029.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Free Shipping$1,029.00Buy Now
$1,079.00Visit Site

(as of 09:52 CST - Details)Sales Tax Extra $1,010.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
12900
Gallons
Switch Type
None
Style
Sewage Pump
GPH
12900 Gallons
Switch Type
None
Features
Features
  • 200SW - Blue Angel 2 HP Commercial-Grade Submersible Sewage Pump (240V)
  • Assembled in the USA, with foreign and domestic parts
  • *Non-Automatic* - Requires Control Box or Float Switch
  • Cast Iron Motor Housing, Seal Plate & Volute
  • Provides maximum durability and longevity in harsh sewage applications
  • Stainless Steel Motor Shaft & Fasteners
  • Robust design for extended pump life in high-volume sewage applications
  • 2 HP Permanent Split Capacitor (PSC) Motor *240V*
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • 3-Inch NPT Discharge w/ 2-Inch Discharge Adapter
  • Capable of passing 2" spherical solids
  • For use in 18" Diam. or larger sewage basins
  • Heavy-Duty, 2-Vane Cast Iron Impeller
  • Allows for high-volume discharge of 230 GPM @ 15'
  • Carbon / Ceramic Shaft Seal
  • Helps ensure increased durability in demanding sewage applications
  • Heavy-Duty Upper/Lower Ball Bearings
  • Allows for smooth, quiet operation and longer pump life
  • 20 ft. SJTW Power Cord* w/ Neoprene Grommet (No Plug)
  • Oil and water resistant that won't degrade overtime
  • *Requires hardwired connection
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
12
Thermal Protection
Yes
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
12900
GPH @ 5 feet
12900
GPH @ 10 feet
12900
GPH @ 15 feet
11100
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
40 Feet
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Horsepower
2 hp
Overview
Weight
104 Pounds
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
Consumer Warranty
3 Years
UPC
040066216298
Style
Sewage Pumps
GPH
12900
Gallons
Switch Type
None
Style
Sewage Pump
GPH
12900 Gallons
Switch Type
None
Features
Features
  • 200SW - Blue Angel 2 HP Commercial-Grade Submersible Sewage Pump (240V)
  • Assembled in the USA, with foreign and domestic parts
  • *Non-Automatic* - Requires Control Box or Float Switch
  • Cast Iron Motor Housing, Seal Plate & Volute
  • Provides maximum durability and longevity in harsh sewage applications
  • Stainless Steel Motor Shaft & Fasteners
  • Robust design for extended pump life in high-volume sewage applications
  • 2 HP Permanent Split Capacitor (PSC) Motor *240V*
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • 3-Inch NPT Discharge w/ 2-Inch Discharge Adapter
  • Capable of passing 2" spherical solids
  • For use in 18" Diam. or larger sewage basins
  • Heavy-Duty, 2-Vane Cast Iron Impeller
  • Allows for high-volume discharge of 230 GPM @ 15'
  • Carbon / Ceramic Shaft Seal
  • Helps ensure increased durability in demanding sewage applications
  • Heavy-Duty Upper/Lower Ball Bearings
  • Allows for smooth, quiet operation and longer pump life
  • 20 ft. SJTW Power Cord* w/ Neoprene Grommet (No Plug)
  • Oil and water resistant that won't degrade overtime
  • *Requires hardwired connection
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
12
Thermal Protection
Yes
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
12900
GPH @ 5 feet
12900
GPH @ 10 feet
12900
GPH @ 15 feet
11100
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
40 Feet
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Horsepower
2 hp
Overview
Weight
104 Pounds
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
Consumer Warranty
3 Years
UPC
040066216298
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
12
Thermal Protection
Yes
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
12900
GPH @ 5 feet
12900
GPH @ 10 feet
12900
GPH @ 15 feet
11100
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
40 Feet
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Horsepower
2 hp
Overview
Weight
104 Pounds
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
Consumer Warranty
3 Years
UPC
040066216298
