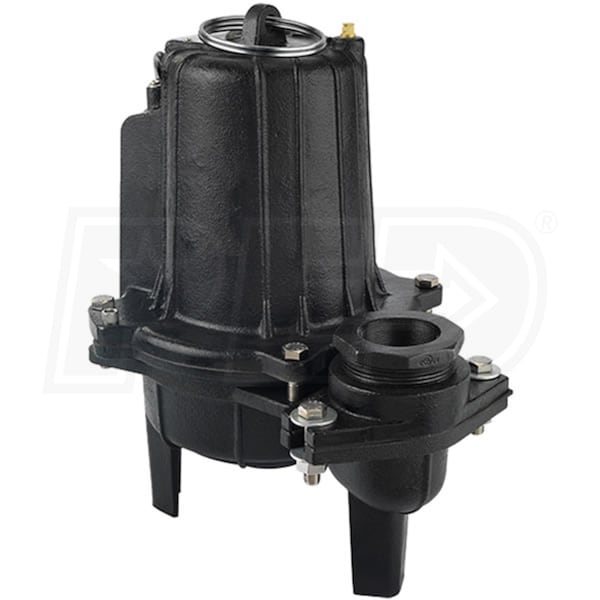

Blue Angel Pumps - 3/4 HP All Cast Iron Commercial-Grade Sewage Pump (2"/3") (Non-Automatic)

Blue Angel Pumps - 3/4 HP All Cast Iron Commercial-Grade Sewage Pump (2"/3") (Non-Automatic)
Our Price
Compare Prices
Shipping Info
Model: 75SW
$899.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$50.00
Free Shipping$899.00Buy Now
$949.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
10800
Gallons
Switch Type
None
Style
Sewage Pump
GPH
10800 Gallons
Switch Type
None
Features
Features
  • 75SW - Blue Angel 3/4 Commercial-Grade Submersible Sewage Pump (240V)
  • Assembled in the USA, with foreign and domestic parts
  • *Non-Automatic* - Requires Control Box or Float Switch
  • Cast Iron Motor Housing, Seal Plate & Volute
  • Provides maximum durability and longevity in harsh sewage applications
  • Stainless Steel Motor Shaft & Fasteners
  • Robust design for extended pump life in high-volume sewage applications
  • 3/4 HP Permanent Split Capacitor (PSC) Motor *240V*
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • 3-Inch NPT Discharge w/ 2-Inch Discharge Adapter
  • Capable of passing 2" spherical solids
  • For use in 18" Diam. or larger sewage basins
  • Heavy-Duty, 2-Vane Cast Iron Impeller
  • Allows for high-volume discharge of 180 GPM @ 10'
  • Carbon / Ceramic Shaft Seal
  • Helps ensure increased durability in demanding sewage applications
  • Upper/Lower Ball Bearings
  • Allows for smooth, quiet operation and longer pump life
  • 20 ft. SJTW Power Cord* w/ Neoprene Grommet (No Plug)
  • Oil and water resistant that won't degrade overtime
  • *Requires hardwired connection
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
No Switch
GPH @ 0 feet
10800
GPH @ 5 feet
10800
GPH @ 10 feet
10800
GPH @ 15 feet
9000
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Built-in check Valve
No
Manual Override
Yes
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.75 hp
Overview
Weight
104 Pounds
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
Consumer Warranty
3 Years
UPC
040066216311
Style
Sewage Pumps
GPH
10800
Gallons
Switch Type
None
Style
Sewage Pump
GPH
10800 Gallons
Switch Type
None
Features
Features
  • 75SW - Blue Angel 3/4 Commercial-Grade Submersible Sewage Pump (240V)
  • Assembled in the USA, with foreign and domestic parts
  • *Non-Automatic* - Requires Control Box or Float Switch
  • Cast Iron Motor Housing, Seal Plate & Volute
  • Provides maximum durability and longevity in harsh sewage applications
  • Stainless Steel Motor Shaft & Fasteners
  • Robust design for extended pump life in high-volume sewage applications
  • 3/4 HP Permanent Split Capacitor (PSC) Motor *240V*
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • 3-Inch NPT Discharge w/ 2-Inch Discharge Adapter
  • Capable of passing 2" spherical solids
  • For use in 18" Diam. or larger sewage basins
  • Heavy-Duty, 2-Vane Cast Iron Impeller
  • Allows for high-volume discharge of 180 GPM @ 10'
  • Carbon / Ceramic Shaft Seal
  • Helps ensure increased durability in demanding sewage applications
  • Upper/Lower Ball Bearings
  • Allows for smooth, quiet operation and longer pump life
  • 20 ft. SJTW Power Cord* w/ Neoprene Grommet (No Plug)
  • Oil and water resistant that won't degrade overtime
  • *Requires hardwired connection
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
No Switch
GPH @ 0 feet
10800
GPH @ 5 feet
10800
GPH @ 10 feet
10800
GPH @ 15 feet
9000
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Built-in check Valve
No
Manual Override
Yes
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.75 hp
Overview
Weight
104 Pounds
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
Consumer Warranty
3 Years
UPC
040066216311
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
240 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
No Switch
GPH @ 0 feet
10800
GPH @ 5 feet
10800
GPH @ 10 feet
10800
GPH @ 15 feet
9000
GPH @ 20 feet
6600
Discharge Port Size
3 Inch
Built-in check Valve
No
Manual Override
Yes
Min Head
10 Feet
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.75 hp
Overview
Weight
104 Pounds
Product Length
15.408 Inches
Product Width
11.957 Inches
Product Height
17.557 Inches
Consumer Warranty
3 Years
UPC
040066216311
