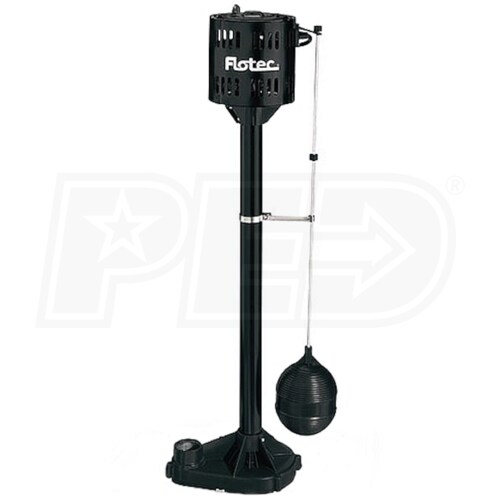

Flotec FPPM3600D - 1/3 HP Thermoplastic Pedestal Pump w/ Vertical Float Switch
Flotec FPPM3600D - 1/3 HP Thermoplastic Pedestal Pump w/ Vertical Float Switch
+
Share This Product
-
Product Description
-
8Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
3000
Gallons
Switch Type
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
- Thermoplastic Pedestal Sump Pump
- Replaces any existing brand of 1/3 HP pedestal pump
- Rugged Construction
- Designed for a high level of corrosion resistance
- Durable Motor
- Thermal overload protection
- Energy Efficient
- Low 3.5 amp draw
- Quick, Easy Installation
- Fits in a 12" diameter basin and offers a 1-1/4" discharge
- 1 Year Limited Warranty
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
6 Feet
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2460
GPH @ 15 feet
1620
GPH @ 20 feet
0
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
10.5
Float Off
2.5
Engine
Horsepower
.33 hp
Overview
Weight
12.8 Pounds
Consumer Warranty
1 Year
UPC
022315100084
Style
GPH
3000
Gallons
Switch Type
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
- Thermoplastic Pedestal Sump Pump
- Replaces any existing brand of 1/3 HP pedestal pump
- Rugged Construction
- Designed for a high level of corrosion resistance
- Durable Motor
- Thermal overload protection
- Energy Efficient
- Low 3.5 amp draw
- Quick, Easy Installation
- Fits in a 12" diameter basin and offers a 1-1/4" discharge
- 1 Year Limited Warranty
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
6 Feet
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2460
GPH @ 15 feet
1620
GPH @ 20 feet
0
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
10.5
Float Off
2.5
Engine
Horsepower
.33 hp
Overview
Weight
12.8 Pounds
Consumer Warranty
1 Year
UPC
022315100084
Product Specs
+−
Specifications
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
6 Feet
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2460
GPH @ 15 feet
1620
GPH @ 20 feet
0
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
10.5
Float Off
2.5
Engine
Horsepower
.33 hp
Overview
Weight
12.8 Pounds
Consumer Warranty
1 Year
UPC
022315100084
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
What does "thermal overload protection" mean?
Bill
from New York
April 08, 2017
Answer
Thermal overload protection means that there is a sensor built into the pump that senses heat. When the heat setting of that sensor is reached, the sensor shuts the pump off until the pump cools to a safe operating temperature, thereby saving the pump from a total burn out.
Was this answer helpful?
Yes
0
No
0
