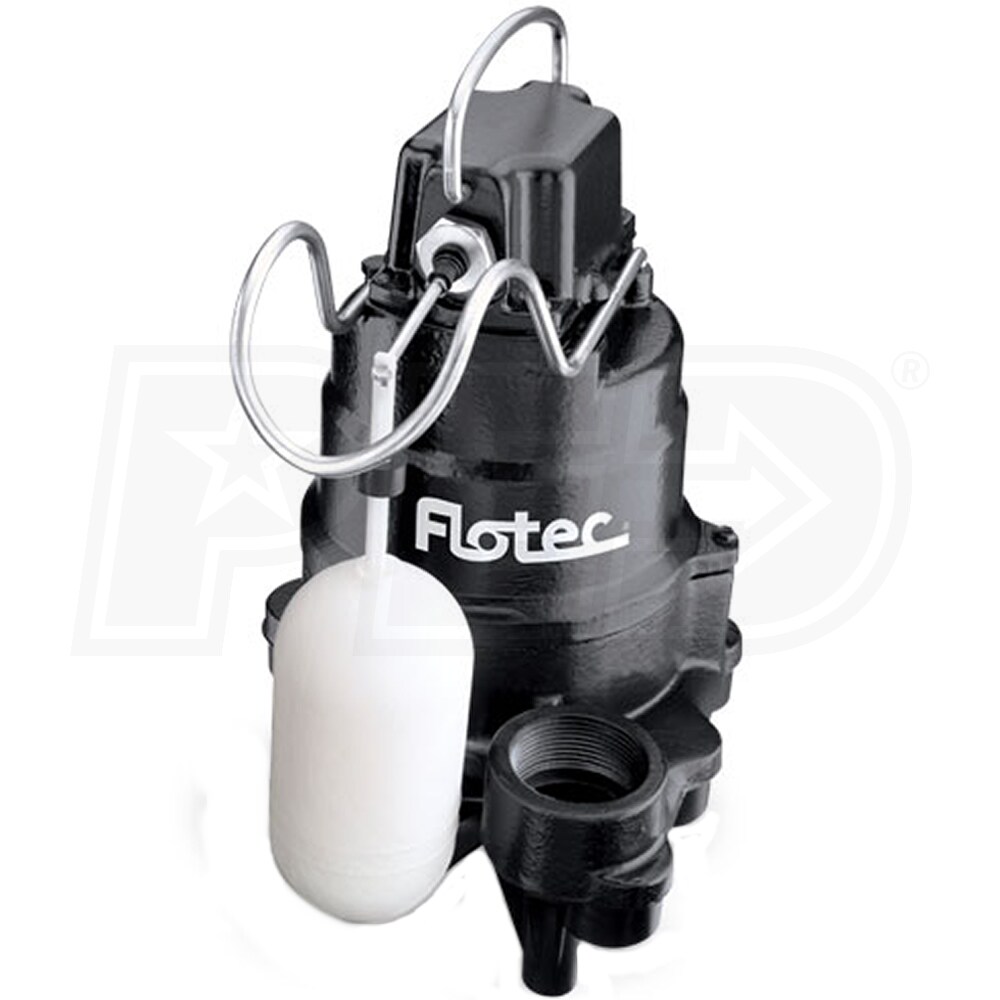

Flotec FPSC3350A - 1/3 HP Cast Iron Effluent Pump w/ Vertical Float Switch
Flotec FPSC3350A - 1/3 HP Cast Iron Effluent Pump w/ Vertical Float Switch
+
Share This Product
-
Product Description
-
3Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
3360
Gallons
Switch Type
Style
Effluent
GPH
3360 Gallons
Switch Type
Vertical
Features
Features
- Submersible Cast Iron 1/3 HP Effluent Pump
- Perfect for light effluent applications such as dishwashers, wet bars, showers, and more
- Rugged Cast Iron Construction
- Designed for years of trouble-free operation
- Recessed Vortex Impeller
- Resists clogging
- Heavy-Duty Integrated Vertical Switch
- 9" on, 4" off
- Great for Laundry Applications
- Passes up to 1/2" solids
- 1-1/2" NPT discharge
- 3 Year Limited Warranty
Specifications
Base
Min Sump Basin Size
11 x 15 Inch
Motor
Voltage
120 Volt
Running Amps
9.8
Power Cord Length
10 Feet
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Total Head Lift
24 Feet
Float Type
Vertical Float
GPH @ 0 feet
3360
GPH @ 5 feet
2880
GPH @ 10 feet
2400
GPH @ 15 feet
1740
GPH @ 20 feet
900
Float On
9"
Float Off
4"
Engine
Horsepower
.33 hp
Overview
Weight
24 Pounds
Consumer Warranty
3 Years
UPC
022315358133
Style
GPH
3360
Gallons
Switch Type
Style
Effluent
GPH
3360 Gallons
Switch Type
Vertical
Features
Features
- Submersible Cast Iron 1/3 HP Effluent Pump
- Perfect for light effluent applications such as dishwashers, wet bars, showers, and more
- Rugged Cast Iron Construction
- Designed for years of trouble-free operation
- Recessed Vortex Impeller
- Resists clogging
- Heavy-Duty Integrated Vertical Switch
- 9" on, 4" off
- Great for Laundry Applications
- Passes up to 1/2" solids
- 1-1/2" NPT discharge
- 3 Year Limited Warranty
Specifications
Base
Min Sump Basin Size
11 x 15 Inch
Motor
Voltage
120 Volt
Running Amps
9.8
Power Cord Length
10 Feet
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Total Head Lift
24 Feet
Float Type
Vertical Float
GPH @ 0 feet
3360
GPH @ 5 feet
2880
GPH @ 10 feet
2400
GPH @ 15 feet
1740
GPH @ 20 feet
900
Float On
9"
Float Off
4"
Engine
Horsepower
.33 hp
Overview
Weight
24 Pounds
Consumer Warranty
3 Years
UPC
022315358133
Product Specs
+−
Specifications
Base
Min Sump Basin Size
11 x 15 Inch
Motor
Voltage
120 Volt
Running Amps
9.8
Power Cord Length
10 Feet
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Handles Solids
Yes
Total Head Lift
24 Feet
Float Type
Vertical Float
GPH @ 0 feet
3360
GPH @ 5 feet
2880
GPH @ 10 feet
2400
GPH @ 15 feet
1740
GPH @ 20 feet
900
Float On
9"
Float Off
4"
Engine
Horsepower
.33 hp
Overview
Weight
24 Pounds
Consumer Warranty
3 Years
UPC
022315358133
