Product Description
+−
Style

GPH
1860
Gallons
Switch Type
Style
Primary
GPH
1860 Gallons
Features
Features
- Utility Sink Pump System
- Attaches directly to underside of sink
- Complete Compact System
- Allows for installation of bar or utility sink without direct access to drain plumbing
- Easy To Install
- Eliminates need for traps, vents, and costly labor charges
- Easily mounts underneath your sink
- Energy Efficient
- Low 2.2 amp draw
- Quick Clean Out
- Remove six housing screws to clean out pump
- Makes easy work of maintenance
- 1-1/2” Pump Inlet Port
- 1-1/4” Pump Discharge
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
2.2
Power Cord Length
8 Feet
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/4"
Quick Clean Out
Yes
Housing Material
Thermoplastic
Solids Handling Size
.06 inch
Total Head Lift
12 Feet
Float Type
Internal Switch

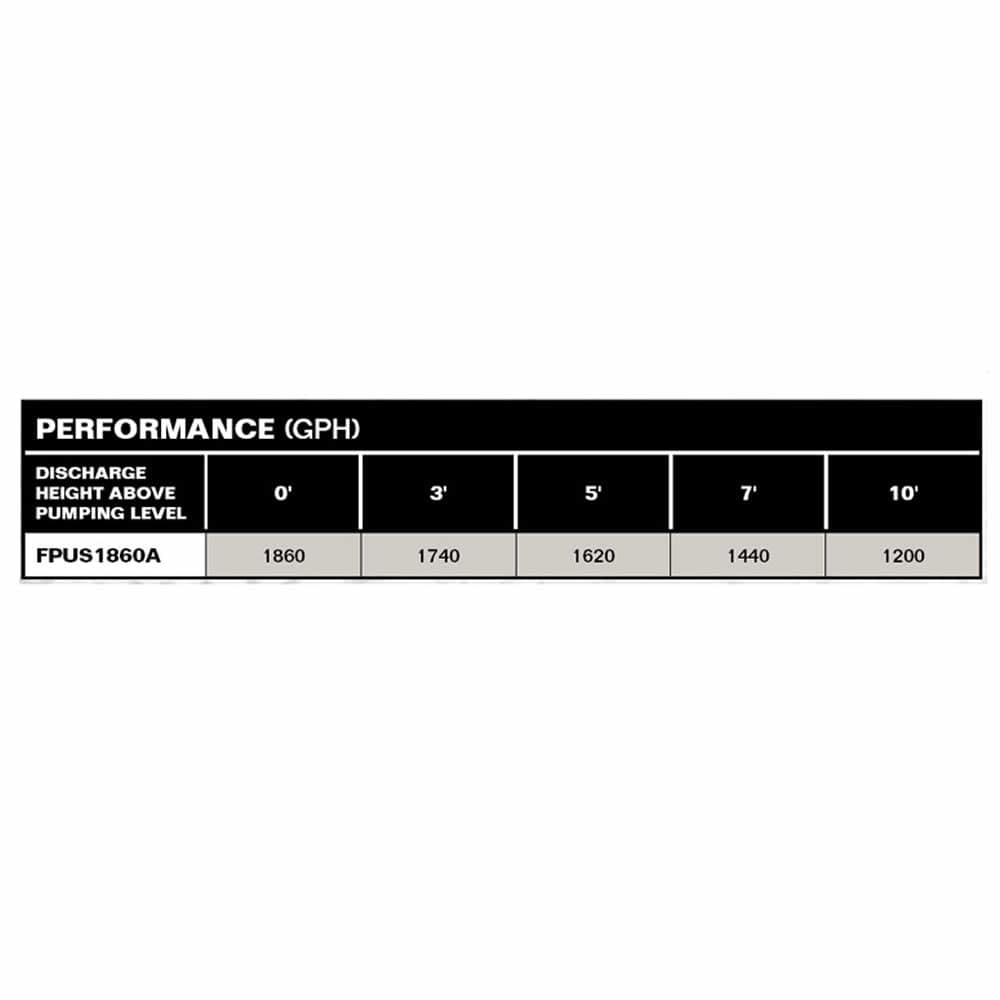

GPH @ 0 feet
1860
GPH @ 10 feet
1200
Built-in check Valve
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
1 Year
UPC
022315327092
Style

GPH
1860
Gallons
Switch Type
Style
Primary
GPH
1860 Gallons
Features
Features
- Utility Sink Pump System
- Attaches directly to underside of sink
- Complete Compact System
- Allows for installation of bar or utility sink without direct access to drain plumbing
- Easy To Install
- Eliminates need for traps, vents, and costly labor charges
- Easily mounts underneath your sink
- Energy Efficient
- Low 2.2 amp draw
- Quick Clean Out
- Remove six housing screws to clean out pump
- Makes easy work of maintenance
- 1-1/2” Pump Inlet Port
- 1-1/4” Pump Discharge
- 1 Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
2.2
Power Cord Length
8 Feet
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/4"
Quick Clean Out
Yes
Housing Material
Thermoplastic
Solids Handling Size
.06 inch
Total Head Lift
12 Feet
Float Type
Internal Switch
GPH @ 0 feet
1860
GPH @ 10 feet
1200
Built-in check Valve
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
1 Year
UPC
022315327092
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
2.2
Power Cord Length
8 Feet
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/2"
Outlet Diameter
1-1/4"
Quick Clean Out
Yes
Housing Material
Thermoplastic
Solids Handling Size
.06 inch
Total Head Lift
12 Feet
Float Type
Internal Switch
GPH @ 0 feet
1860
GPH @ 10 feet
1200
Built-in check Valve
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
1 Year
UPC
022315327092
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
How far can you run the horizontal discharge before installing a vertical to tie into the waste water system?
Tony
from Pennsylvania
February 15, 2017
Answer
Typically, you want to run a minimum 5 foot vertical head directly off the pump before you start your horizontal run. The reason is that the pump manufacturers design the pumps for this direct vertical lift and reducing or eliminating that head, puts more strain on the pump, which could equate to a shorter pump life. If you must run a minimum lift, distance and more lift, you are still really just counting all of the vertical head lift and the horizontal distance separately. As long as you are not exceeding the pump's rated capacity and piping is sized appropriately, you will be fine. As far as a maximum horizontal distance capability of this or any pump, that would depend on the discharge piping type & diameter and the pump used.
Was this answer helpful?
Yes

0
No

1
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

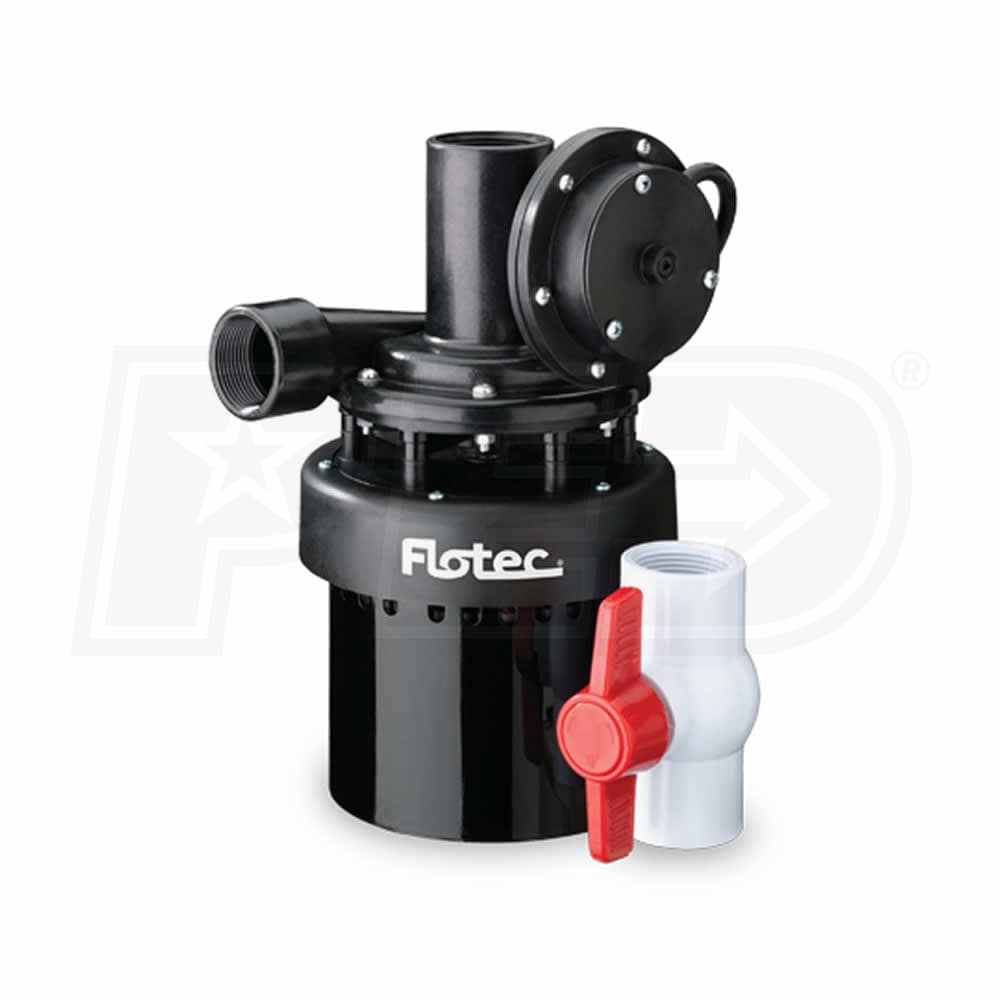

Flotec FPUS1860A - 31 GPM 1/3 HP Utility Sink Pump


×
