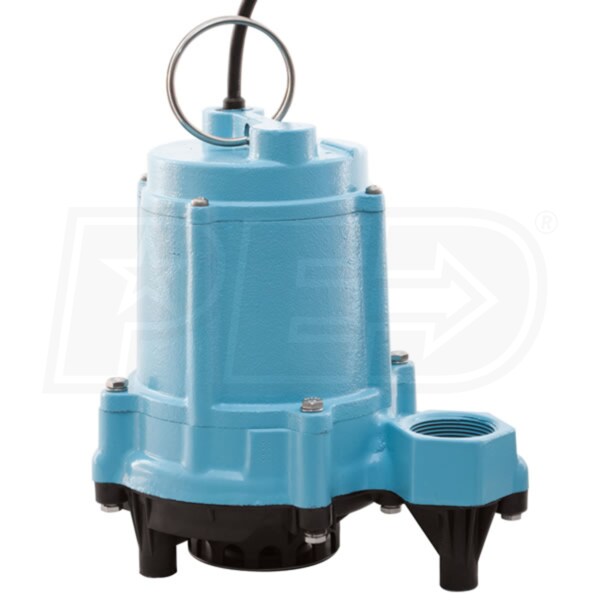

Little Giant 6EN-CIM - 1/3 HP Cast Iron Sump/Effluent Pump w/ 20' Cord (Non-Automatic) (230V)

Little Giant 6EN-CIM - 1/3 HP Cast Iron Sump/Effluent Pump w/ 20' Cord (Non-Automatic) (230V)
Model: 506616
$169.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$169.00Buy Now
No Sales Tax* (Except IL)$169.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping
Free Shipping
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
3000
Gallons
Switch Type
None
Features
Features
  • * 230V NON-AUTOMATIC - Float Switch Req'd For Auto Operation *
  • Submersible Cast Iron Effluent Pump
  • Continuous duty rated for sump & effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection (230-Volt)
  • Energy saving design w/ low amp draw (3-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 22' Max Shutoff Head
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
240 Volt
Running Amps
3
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Maximum PSI
9.5
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2520
GPH @ 15 feet
1800
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
27 Pounds
Product Length
8.75 Inches
Product Width
8.50 Inches
Product Height
9.87 Inches
Consumer Warranty
2 Years
UPC
010121139701
Style
Effluent Sumps Pumps
GPH
3000
Gallons
Switch Type
None
Features
Features
  • * 230V NON-AUTOMATIC - Float Switch Req'd For Auto Operation *
  • Submersible Cast Iron Effluent Pump
  • Continuous duty rated for sump & effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection (230-Volt)
  • Energy saving design w/ low amp draw (3-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 22' Max Shutoff Head
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
240 Volt
Running Amps
3
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Maximum PSI
9.5
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2520
GPH @ 15 feet
1800
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
27 Pounds
Product Length
8.75 Inches
Product Width
8.50 Inches
Product Height
9.87 Inches
Consumer Warranty
2 Years
UPC
010121139701
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
240 Volt
Running Amps
3
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
.33 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
1/2 inch
Maximum PSI
9.5
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2520
GPH @ 15 feet
1800
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Overview
Weight
27 Pounds
Product Length
8.75 Inches
Product Width
8.50 Inches
Product Height
9.87 Inches
Consumer Warranty
2 Years
UPC
010121139701
