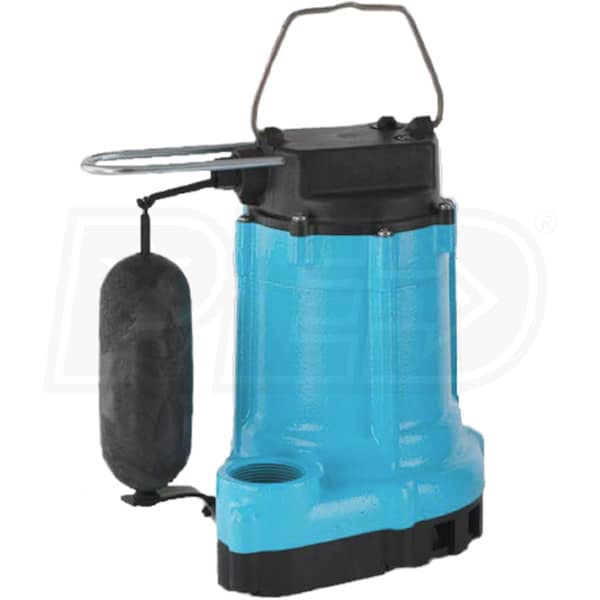

Little Giant 10ENH-CIA-SFS - 1/2 HP Thermoplastic / Cast Iron Submersible Effluent Pump w/ Vertical Float Switch

Little Giant 10ENH-CIA-SFS - 1/2 HP Thermoplastic / Cast Iron Submersible Effluent Pump w/ Vertical Float Switch
Our Price
Compare Prices
Shipping Info
Model: 511602
$459.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Shipping$459.00Buy Now
$459.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
3600
Gallons
Switch Type
Vertical Float Switch
Style
Effluent
GPH
3600 Gallons
Switch Type
Vertical
Features
Features
  • 10ENH-CIA-SFS - Designed For High Head Applications
  • Capable of delivering heads up to 60-feet
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (8-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Turns On at 9"- 14" and turns Off at 2"-6"
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Designed to handle liquids up to 140F
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
3/4 inch
Handles Solids
Yes
Total Head Lift
60 Feet
Maximum PSI
15.6
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3180
GPH @ 15 feet
2880
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9-14 Inches
Float Off
2-6 Inches
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
27.5 Pounds
Product Length
10.45 Inches
Product Width
8.07 Inches
Product Height
12.9 Inches
Consumer Warranty
2 Years
UPC
010121144019
Style
Effluent Sumps Pumps
GPH
3600
Gallons
Switch Type
Vertical Float Switch
Style
Effluent
GPH
3600 Gallons
Switch Type
Vertical
Features
Features
  • 10ENH-CIA-SFS - Designed For High Head Applications
  • Capable of delivering heads up to 60-feet
  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (8-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Turns On at 9"- 14" and turns Off at 2"-6"
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Designed to handle liquids up to 140F
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
3/4 inch
Handles Solids
Yes
Total Head Lift
60 Feet
Maximum PSI
15.6
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3180
GPH @ 15 feet
2880
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9-14 Inches
Float Off
2-6 Inches
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
27.5 Pounds
Product Length
10.45 Inches
Product Width
8.07 Inches
Product Height
12.9 Inches
Consumer Warranty
2 Years
UPC
010121144019
Product Specs
+
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Outlet Diameter
1-1/2"
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
3/4 inch
Handles Solids
Yes
Total Head Lift
60 Feet
Maximum PSI
15.6
Float Type
Vertical Float
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3180
GPH @ 15 feet
2880
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9-14 Inches
Float Off
2-6 Inches
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
27.5 Pounds
Product Length
10.45 Inches
Product Width
8.07 Inches
Product Height
12.9 Inches
Consumer Warranty
2 Years
UPC
010121144019
