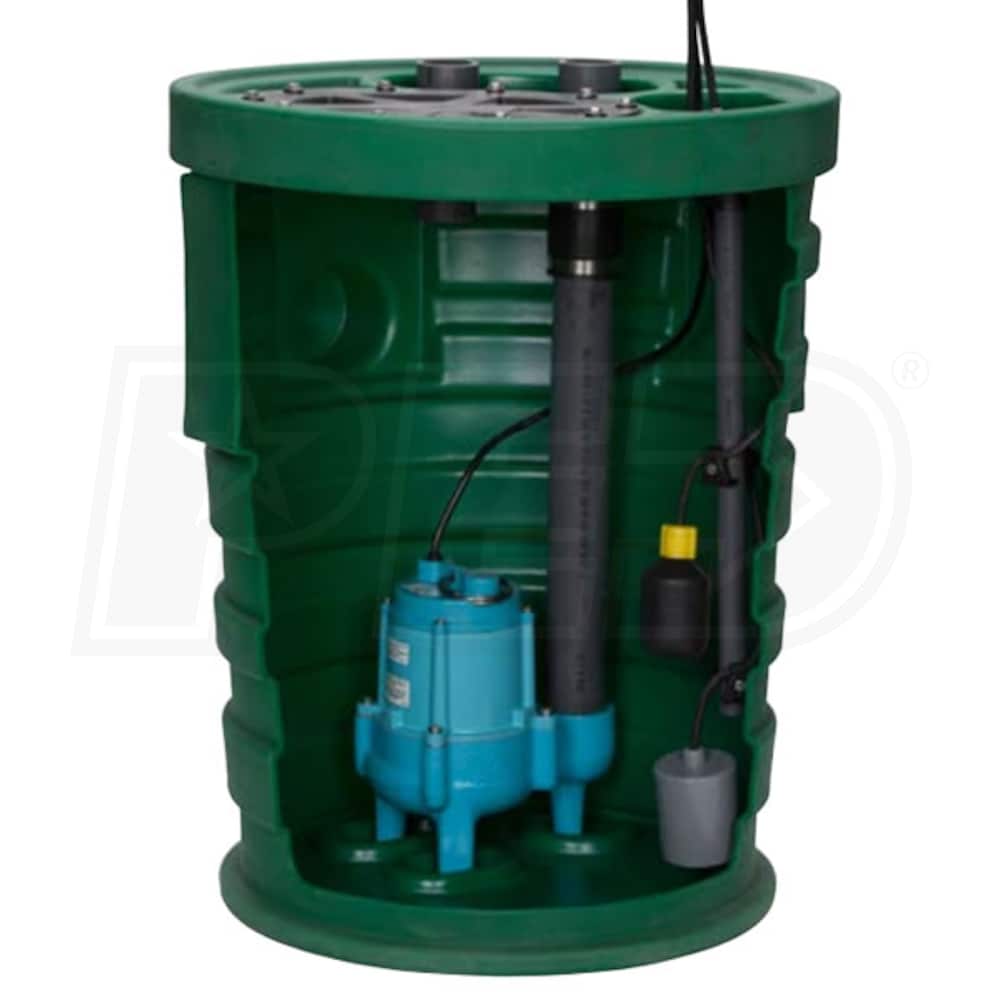

Little Giant 10JP2V2DA1 - Pit Plus® Jr. 1/2 HP Premium Simplex Sewage System w/ ECM Switch & Indoor Alarm (2" Vent, 2" Discharge)

Little Giant 10JP2V2DA1 - Pit Plus® Jr. 1/2 HP Premium Simplex Sewage System w/ ECM Switch & Indoor Alarm (2" Vent, 2" Discharge)
Our Price
Compare Prices
Shipping Info
Model: 511688
$729.00

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
7200
Gallons
Switch Type
Style
Sewage Pump
GPH
7200 Gallons
Features
Features
  • Pit+Plus® Jr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • ECM™ (External Control Module) Switch
  • Monitor liquid level for operation of a switch outside the basin to prevent failure
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 24" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 10SN-CIM Cast Iron Sewage Pump
  • 1/2 HP - PSC motor with thermal overload protection
  • High Water Alarm Included (Indoor Enclosure)
  • Check Valve Sold Separately
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
9.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Maximum PSI
9.5
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
5700
GPH @ 15 feet
4200
GPH @ 20 feet
1800
Built-in check Valve
No
Float On
15
Float Off
8
Engine
Horsepower
.5 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
Consumer Warranty
2 Years
UPC
010121148017
Style
Sewage Pumps
GPH
7200
Gallons
Switch Type
Style
Sewage Pump
GPH
7200 Gallons
Features
Features
  • Pit+Plus® Jr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • ECM™ (External Control Module) Switch
  • Monitor liquid level for operation of a switch outside the basin to prevent failure
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 24" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 10SN-CIM Cast Iron Sewage Pump
  • 1/2 HP - PSC motor with thermal overload protection
  • High Water Alarm Included (Indoor Enclosure)
  • Check Valve Sold Separately
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
9.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Maximum PSI
9.5
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
5700
GPH @ 15 feet
4200
GPH @ 20 feet
1800
Built-in check Valve
No
Float On
15
Float Off
8
Engine
Horsepower
.5 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
Consumer Warranty
2 Years
UPC
010121148017
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
9.5
Pump
Outlet Diameter
2"
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Maximum PSI
9.5
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
5700
GPH @ 15 feet
4200
GPH @ 20 feet
1800
Built-in check Valve
No
Float On
15
Float Off
8
Engine
Horsepower
.5 hp
Overview
Assembly Required
No
Product Length
24 Inches
Product Width
24 Inches
Product Height
24 Inches
Consumer Warranty
2 Years
UPC
010121148017
