ProFlo PF92017 - 3/10 HP Compact Remote Sink/Drain Pump System (1-1/2")
ProFlo PF92017 - 3/10 HP Compact Remote Sink/Drain Pump System (1-1/2")
+
Share This Product
-
Product Description
-
30Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
2760
Gallons
Switch Type
Style
Primary
GPH
2760 Gallons
Switch Type
Vertical
Features
Features
- PROFLO Complete Remote Sink/Drain Pump System
- Everything you need in one box
- Submersible Sump Pump w/ Vertical Float Switch
- Great for a below grade washing machine or sink
- 3/10 HP Permanent Split Capacitor Motor
- Thermally Protected, Continuous duty design, only draws 4.1A
- Corrosion-Resistant Thermoplastic Construction
- Designed to maximize pump life
- Non-Clogging Impeller & Bottom Suction Design w/ Intake Screen
- Able to pass up to 3/8" solids, passes laundry lint
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 15" x 13.5" Structural Foam Basin - 6 Gallon Capacity
- Includes cover w/ 1-1/2" inlet, discharge & vent
- 1-1/2" Full Flow Check Valve
- Prevents back flow of water into basin
- Pre-Assembled With an 8” Length of PVC Pipe
- Just connect drain, discharge and vent pipe
- 5-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Solids Handling Size
.375 inch
Float Type
Vertical Float
GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
Yes
Engine
Horsepower
.30 hp
Overview
Weight
50 Pounds
Consumer Warranty
5 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
13.5 Inches
UPC
781889170472
Style
GPH
2760
Gallons
Switch Type
Style
Primary
GPH
2760 Gallons
Switch Type
Vertical
Features
Features
- PROFLO Complete Remote Sink/Drain Pump System
- Everything you need in one box
- Submersible Sump Pump w/ Vertical Float Switch
- Great for a below grade washing machine or sink
- 3/10 HP Permanent Split Capacitor Motor
- Thermally Protected, Continuous duty design, only draws 4.1A
- Corrosion-Resistant Thermoplastic Construction
- Designed to maximize pump life
- Non-Clogging Impeller & Bottom Suction Design w/ Intake Screen
- Able to pass up to 3/8" solids, passes laundry lint
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 15" x 13.5" Structural Foam Basin - 6 Gallon Capacity
- Includes cover w/ 1-1/2" inlet, discharge & vent
- 1-1/2" Full Flow Check Valve
- Prevents back flow of water into basin
- Pre-Assembled With an 8” Length of PVC Pipe
- Just connect drain, discharge and vent pipe
- 5-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Solids Handling Size
.375 inch
Float Type
Vertical Float

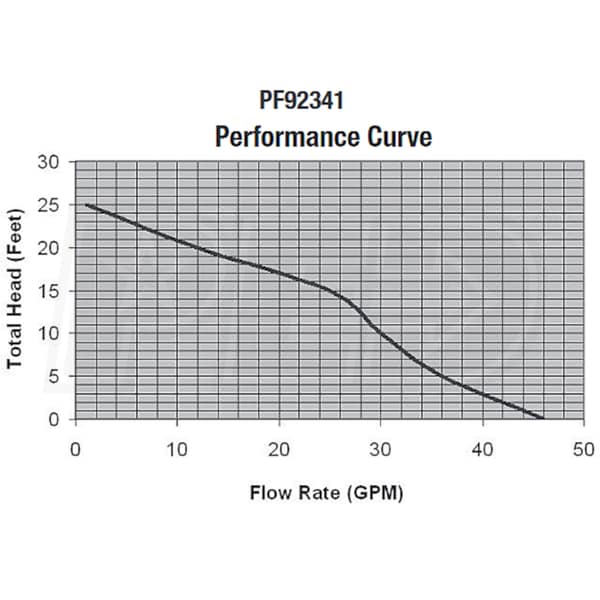

GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
Yes
Engine
Horsepower
.30 hp
Overview
Weight
50 Pounds
Consumer Warranty
5 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
13.5 Inches
UPC
781889170472
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Solids Handling Size
.375 inch
Float Type
Vertical Float
GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Built-in check Valve
Yes
Engine
Horsepower
.30 hp
Overview
Weight
50 Pounds
Consumer Warranty
5 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
13.5 Inches
UPC
781889170472
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
can you hook up the clothes washer directly to the basin
Ben
from Georgia
March 25, 2016
Answer
Thank you for your interest in Sump Pumps Direct. Yes, these systems are designed for direct connection from your washer. Just make sure that you follow all INSTALLATION INSTRUCTIONS ans the system is vented per local code.
