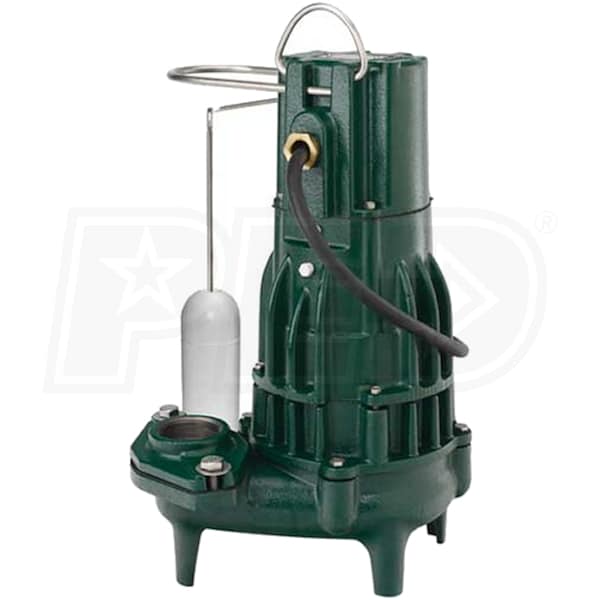

Zoeller M292 - 1/2 HP High Head Waste-Mate Cast Iron Sewage Pump w/ Vertical Float (Scratch & Dent)

Model:

292-0001-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Zoeller M292 - 1/2 HP High Head Waste-Mate Cast Iron Sewage Pump w/ Vertical Float (Scratch & Dent)
Zoeller M292 - 1/2 HP High Head Waste-Mate Cast Iron Sewage Pump w/ Vertical Float (Scratch & Dent)
Model: 292-0001-SD
Was $790.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

8400 Gallons

Switch Type

Vertical

  • *Scratch & Dent Model*
  • Item was ONLY packaged in new box
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • Zoeller M292 High Head Waste-Mate Automatic Sewage Pump
  • Ideal for average to above average sewage removal in high-head applications
  • Durable Cast Iron Construction (Base, Pump & Motor Housing)
  • Corrosion-resistant powder coated epoxy finish
  • Reliable, Float-Operated Vertical 2-Pole Mechanical Switch
  • Provides an 'On' point of 15-3/4" and an 'Off' point of 5-1/4"
  • 1/2 HP Thermally Protected PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • High Head Design (42' Shut-Off Head)
  • Can pump up to 3000 GPH @ 30' head
  • Non-Clogging Cast Iron Vortex Impeller
  • Capable of passing 2" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL listed, 3-wire neoprene cord and plug
  • Added Features:
  • 1117 Carbon Steel Motor Shaft; Neoprene square ring & gasket
  • Industry Leading Quality Control
  • 100% Pressure-tested, submerged and run to ensure quality and reliability
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

292-0001-SD
specs product image PID-105200
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
8400
GPH @ 5 feet
8400
GPH @ 10 feet
7260
GPH @ 15 feet
6540
GPH @ 20 feet
5400
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
15.75
Float Off
5
Manual Override
No
Max Head
42 Feet
Min Head
5 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
86 Pounds
Consumer Warranty
1 Year
Product Length
12.875 Inches
Product Height
19.3125 Inches
