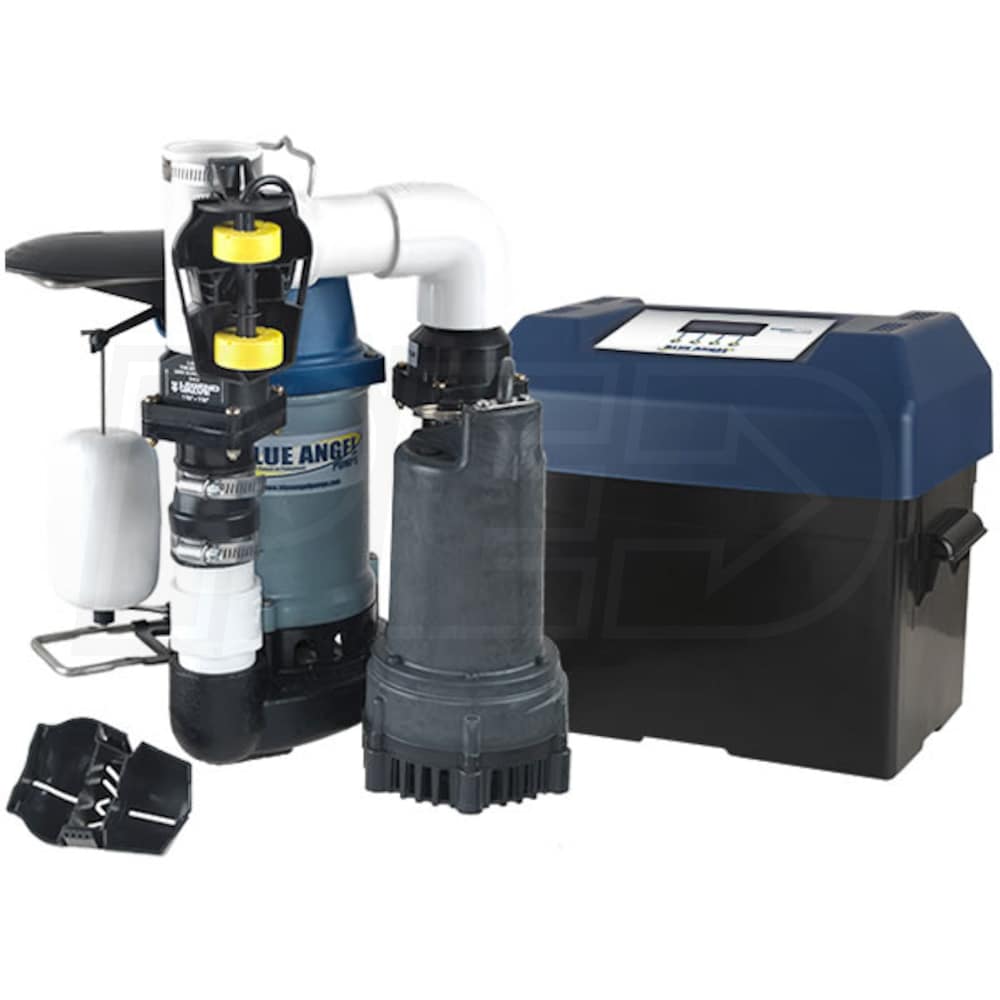

Blue Angel Pumps - 1/2 HP Pre-Assembled Combination Primary & Sump Minder® Backup Sump Pump System

Blue Angel Pumps - 1/2 HP Pre-Assembled Combination Primary & Sump Minder® Backup Sump Pump System
Model: DF50SMS
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Combo Sumps Pumps
GPH
4200
Gallons
Switch Type
Vertical Float Switch
Style
Combo
GPH
4200 Gallons
Switch Type
Vertical
Features
Features
  • DF50SMS - Blue Angel 1/2 HP Combination Primary & Sump Minder® Backup System
  • Assembled in the USA, with foreign and domestic parts
  • Job-Ready, Pre-Assembled Design
  • Reduces installation time, simplifies installation for DIYers
  • Sump Minder® Microprocessor Controlled System
  • Self-tests pump, float switch and battery status every 7 days
  • Voice alerts let you know before a problem occurs
  • Auto Dialer Notification - Calls Up To (5) Numbers
  • Provides piece of mind knowing you'll be alerted when trouble occurs
  • Requires standard telephone service, landline or digital (DSL/Cable)
  • 12V DC Backup Sump Pump
  • Corrosion-resistant thermoplastic construction for maximum pump life
  • Powerful DC motor provides the pumping capacity of an AC/Primary pump
  • LCD Screen Display
  • Provides easy programming and simple user-friendly operation
  • Dual-Vertical Float Switch w/ Float Cage
  • Adjustable On/Off levels provide reliable automatic pump operation
  • Cage protects float from debris that may be present in sump pits
  • Cast Iron Professional Series Primary Submersible Sump Pump (F50S)
  • Corrosion-resistant, epoxy-coated Cast Iron construction for maximum pump life
  • 1/2 HP Permanent Split Capacitor (PSC) Motor 120V
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • Corrosion-Resistant Thermoplastic Impeller
  • Open design, easily pass up to 1/2" solids
  • Integrated Snap-Action Vertical Float Switch
  • For use in 11" Diam. or larger sump basins
  • Tested to 1 million cycles* for reliable automatic operation
  • Top Suction Design
  • Won't clog from debris at bottom of sump pit; Helps prevent air-lock
  • 1-1/2-Inch NPT Discharge - Includes (2) 1-1/2" Check Valves
  • Simplifies installation and complies with building codes
  • Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
  • 3-Year Limited Warranty
  • *WAYNE Water Systems Exceed an Average 1 Million Test Cycles
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3480
GPH @ 15 feet
2640
GPH @ 20 feet
1560
Backup GPH @ 0 feet
2940
Backup GPH @ 5 feet
2820
Backup GPH @ 10 feet
2280
Backup GPH @ 15 feet
1500
Backup GPH @ 20 feet
Off
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
9
Float Off
4
Manual Override
No
Overview
Weight
32 Pounds
Product Length
10.421 Inches
Product Width
12.039 Inches
Product Height
20.188 Inches
Consumer Warranty
3 Years
UPC
040066216250
Style
Combo Sumps Pumps
GPH
4200
Gallons
Switch Type
Vertical Float Switch
Style
Combo
GPH
4200 Gallons
Switch Type
Vertical
Features
Features
  • DF50SMS - Blue Angel 1/2 HP Combination Primary & Sump Minder® Backup System
  • Assembled in the USA, with foreign and domestic parts
  • Job-Ready, Pre-Assembled Design
  • Reduces installation time, simplifies installation for DIYers
  • Sump Minder® Microprocessor Controlled System
  • Self-tests pump, float switch and battery status every 7 days
  • Voice alerts let you know before a problem occurs
  • Auto Dialer Notification - Calls Up To (5) Numbers
  • Provides piece of mind knowing you'll be alerted when trouble occurs
  • Requires standard telephone service, landline or digital (DSL/Cable)
  • 12V DC Backup Sump Pump
  • Corrosion-resistant thermoplastic construction for maximum pump life
  • Powerful DC motor provides the pumping capacity of an AC/Primary pump
  • LCD Screen Display
  • Provides easy programming and simple user-friendly operation
  • Dual-Vertical Float Switch w/ Float Cage
  • Adjustable On/Off levels provide reliable automatic pump operation
  • Cage protects float from debris that may be present in sump pits
  • Cast Iron Professional Series Primary Submersible Sump Pump (F50S)
  • Corrosion-resistant, epoxy-coated Cast Iron construction for maximum pump life
  • 1/2 HP Permanent Split Capacitor (PSC) Motor 120V
  • Oil-Filled, thermally protected to prevent overheating and burnout
  • Corrosion-Resistant Thermoplastic Impeller
  • Open design, easily pass up to 1/2" solids
  • Integrated Snap-Action Vertical Float Switch
  • For use in 11" Diam. or larger sump basins
  • Tested to 1 million cycles* for reliable automatic operation
  • Top Suction Design
  • Won't clog from debris at bottom of sump pit; Helps prevent air-lock
  • 1-1/2-Inch NPT Discharge - Includes (2) 1-1/2" Check Valves
  • Simplifies installation and complies with building codes
  • Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
  • 3-Year Limited Warranty
  • *WAYNE Water Systems Exceed an Average 1 Million Test Cycles
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3480
GPH @ 15 feet
2640
GPH @ 20 feet
1560
Backup GPH @ 0 feet
2940
Backup GPH @ 5 feet
2820
Backup GPH @ 10 feet
2280
Backup GPH @ 15 feet
1500
Backup GPH @ 20 feet
Off
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
9
Float Off
4
Manual Override
No
Overview
Weight
32 Pounds
Product Length
10.421 Inches
Product Width
12.039 Inches
Product Height
20.188 Inches
Consumer Warranty
3 Years
UPC
040066216250
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Power Cord Length
10 Feet
Oil Free Motor
No
Engine
Oil-Cooled
Yes
Shaft Seal
Ceramic Carbon
Horsepower
.5 hp
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3480
GPH @ 15 feet
2640
GPH @ 20 feet
1560
Backup GPH @ 0 feet
2940
Backup GPH @ 5 feet
2820
Backup GPH @ 10 feet
2280
Backup GPH @ 15 feet
1500
Backup GPH @ 20 feet
Off
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
9
Float Off
4
Manual Override
No
Overview
Weight
32 Pounds
Product Length
10.421 Inches
Product Width
12.039 Inches
Product Height
20.188 Inches
Consumer Warranty
3 Years
UPC
040066216250
