Product Description
+−
Style

GPH
1400
Gallons
Switch Type

Style
Primary
GPH
1400 Gallons
Switch Type
Electronic
Features
Features
- 1/3 HP Automatic Laundry Tub Pump
- Designed to handle normal waste water w/ no solids present
- Automatic Switch
- Motor starts when water enters the pump body
- Noryl Pump Body
- Corrosion resistant design extends the life of the pump
- Thermal & Overload Protection
- Provides added protection
- Versatile Design
- Fits under wet bars, vanities and utility sinks
- Designed For Easy Installation
- Allows for sink installation without breaking cement
- Mounts directly to tail pipe of laundry tub
- No trap, inlet piping or vent connection required
- 2 Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Starting Amps
8
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Electronic
GPH @ 0 feet
1400
GPH @ 10 feet
500
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Max Head
10 Feet
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
2 Years
Product Length
9.75 Inches
Product Width
8 Inches
Product Height
12.75 Inches
UPC
772910005146
Additional Model Numbers
300514W, 300514WH
Style

GPH
1400
Gallons
Switch Type

Style
Primary
GPH
1400 Gallons
Switch Type
Electronic
Features
Features
- 1/3 HP Automatic Laundry Tub Pump
- Designed to handle normal waste water w/ no solids present
- Automatic Switch
- Motor starts when water enters the pump body
- Noryl Pump Body
- Corrosion resistant design extends the life of the pump
- Thermal & Overload Protection
- Provides added protection
- Versatile Design
- Fits under wet bars, vanities and utility sinks
- Designed For Easy Installation
- Allows for sink installation without breaking cement
- Mounts directly to tail pipe of laundry tub
- No trap, inlet piping or vent connection required
- 2 Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Starting Amps
8
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Electronic
GPH @ 0 feet
1400
GPH @ 10 feet
500
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Max Head
10 Feet
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
2 Years
Product Length
9.75 Inches
Product Width
8 Inches
Product Height
12.75 Inches
UPC
772910005146
Additional Model Numbers
300514W, 300514WH
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
4
Thermal Protection
Yes
Starting Amps
8
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Electronic
GPH @ 0 feet
1400
GPH @ 10 feet
500
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Max Head
10 Feet
Engine
Horsepower
.33 hp
Overview
Weight
19 Pounds
Consumer Warranty
2 Years
Product Length
9.75 Inches
Product Width
8 Inches
Product Height
12.75 Inches
UPC
772910005146
Additional Model Numbers
300514W, 300514WH
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Can i install the bur-cam laundry tub pump model 300514W in a horizontal position rather than vertical position?
Steven B
from Vermont
January 02, 2013
Answer
Thank you for visiting Sump Pumps Direct. The Bur-Cam Automatic Laundry Tub Pump can only be operated in a vertical position.
Was this answer helpful?
Yes

0
No

0
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Jim
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Jim O.
Manuals
+−
+
Ask Jim, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

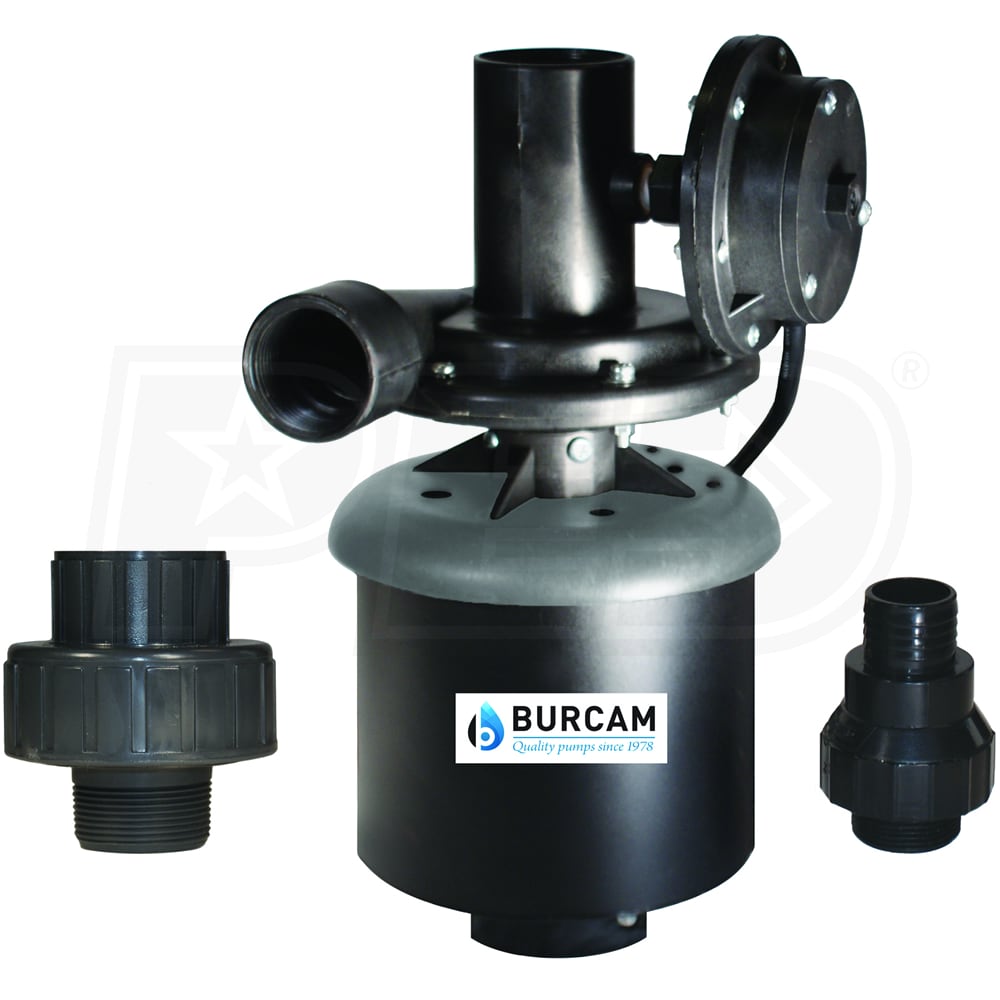

Burcam Pumps 300514WH - 1/3 HP Automatic Laundry Tub Pump


×
