How to Easily Size a Primary Sump Pump
How to Easily Size a Primary Sump Pump

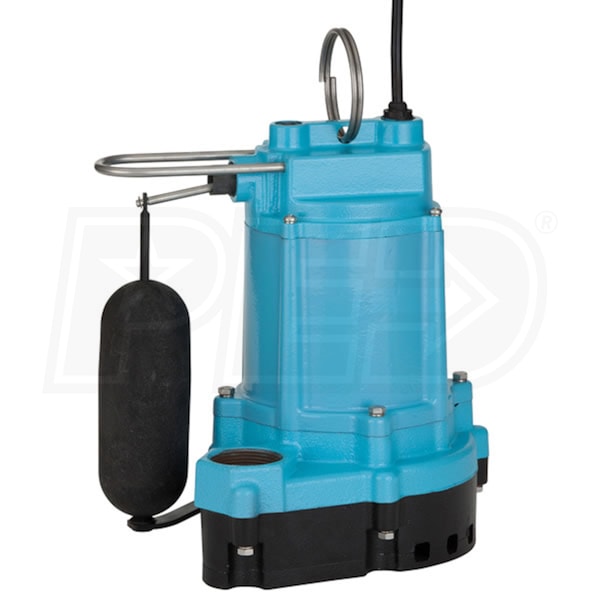

Little Giant 6EC-CIA-SFS - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Little Giant 6EC-CIA-SFS - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Our Price
Compare Prices
Shipping Info
Model: 506855
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (3)
Write A Review
$159.00
Only 4 In-Stock
Ships Friday, Jan 25th
Free Shipping
In-Stock Free Shipping$159.00Buy Now
$199.00Visit Site
Only 4 In-Stock
Ships Friday, Jan 25th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3180 Gallons
Switch Type
Vertical
Features
Features
  • Automatic Cast Iron Submersible Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warrranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Total Head Lift
28 Feet
Maximum PSI
12.1
Float Type
Vertical Float

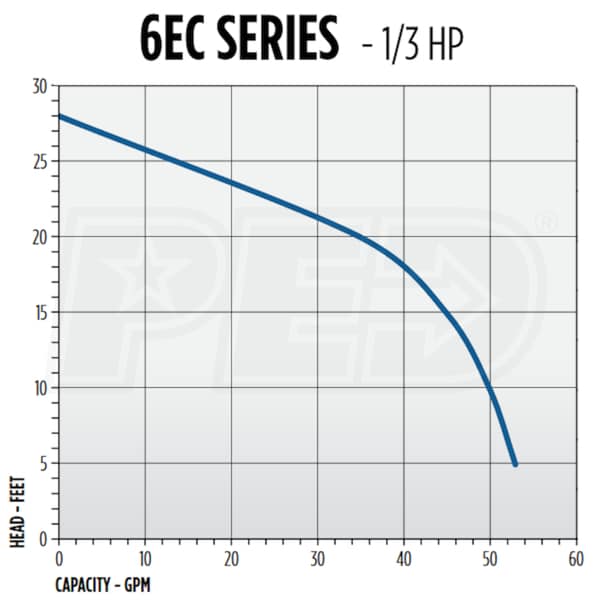

GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Certification
cCSAus
Weight
34 Pounds
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149120
Style
Primary Sumps Pumps
GPH
3180
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
3180 Gallons
Switch Type
Vertical
Features
Features
  • Automatic Cast Iron Submersible Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warrranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Total Head Lift
28 Feet
Maximum PSI
12.1
Float Type
Vertical Float
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Certification
cCSAus
Weight
34 Pounds
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149120
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Total Head Lift
28 Feet
Maximum PSI
12.1
Float Type
Vertical Float
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Certification
cCSAus
Weight
34 Pounds
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
Consumer Warranty
2 Years
UPC
010121149120
Reviews
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
(3)
+−
Little Giant 506855 Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+−
Will the pump be damaged if it sits completely submerged for an extended period of time without running?
Jeff V.
from Vermont
July 22, 2017
Answer
Not at all Jeff. In fact it's recommended so that the pump seals do not dry out.
