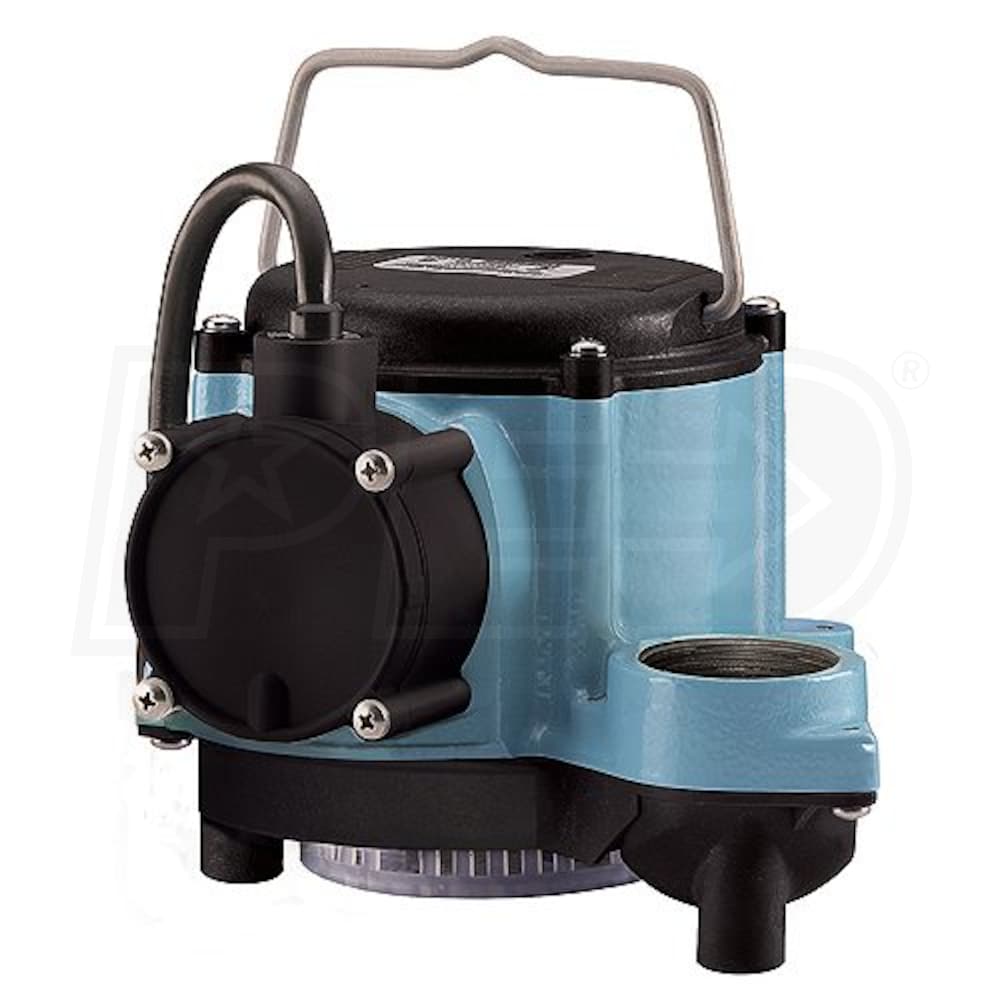

Little Giant 8-CIA - 4/10 HP Cast Iron Submersible Sump Pump w/ Diaphragm Switch
Model: 508157
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
3240
Gallons
Switch Type

Style
Primary
GPH
3240 Gallons
Switch Type
Diaphragm
Features
Features
- 4/10 HP Submersible Sump Pump
- Continuous duty rated for residential & light commercial use
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- Integral Diaphragm Pressure Switch
- Provides reliable automatic operation
- 4/10 HP Shaded Pole Motor w/ Thermal Overload Protection
- Oil-filled motor housing provides lower operating temperatures
- Vortex Style Polypropylene Impeller
- Corrosion resistant design minimizes clogging
- Stainless Steel Fasteners
- Protects against corrosion in harsh sump pits
- Upper Sintered-Sleeve Bearing & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Carbon/Ceramic Mechanical Seal
- Assures maximum protection against pump failure
- 2-Year Limited Warranty
Specifications
Base
Base Material
Polypropylene
Motor
Voltage
120 Volt
Running Amps
10
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
3240
GPH @ 5 feet
3240
GPH @ 10 feet
2520
GPH @ 15 feet
1560
GPH @ 20 feet
480
Discharge Port Size
1-1/2 Inch
Float On
7-10
Float Off
1-4
Manual Override
Yes
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
19 Pounds
Consumer Warranty
2 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
6 Inches
UPC
010121081574
