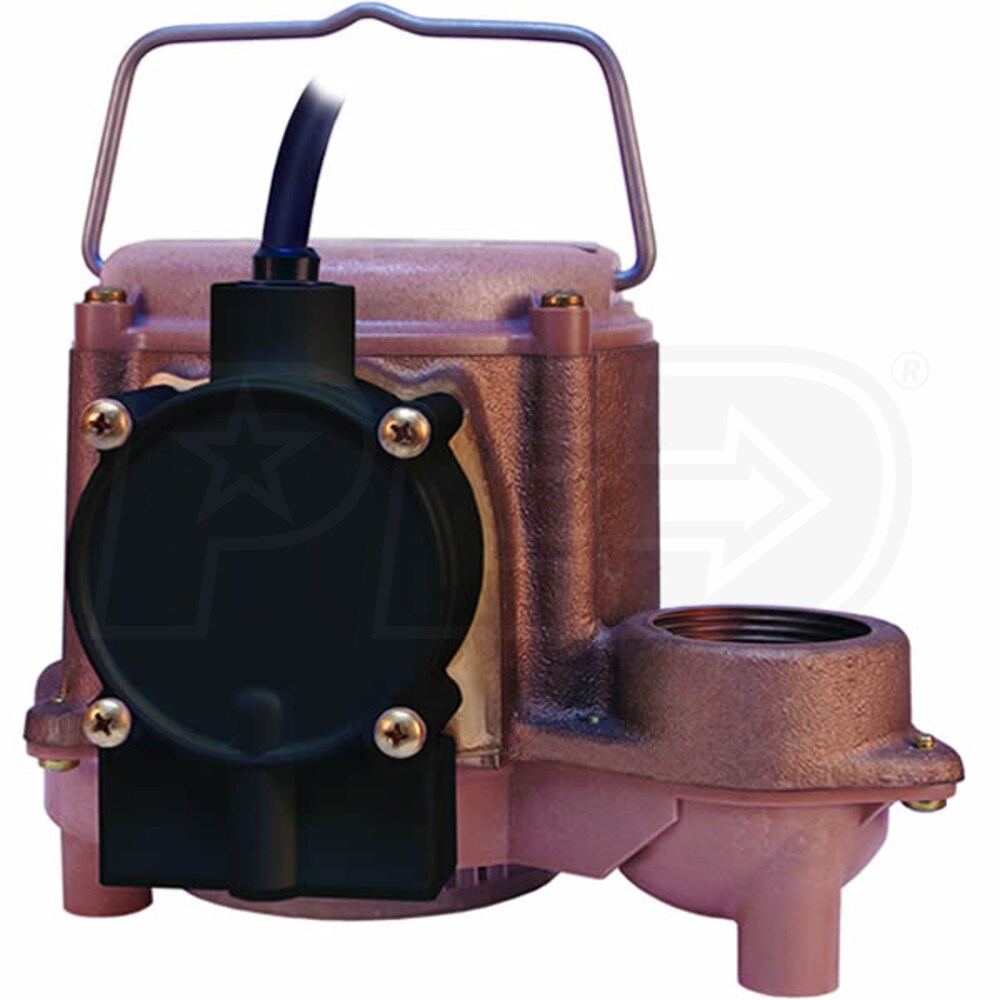

Little Giant 8-CBA - 4/10 HP Cast Bronze Submersible Sump Pump w/ Diaphragm Switch

Model:

508357

Write a Review
$374.00
Free Shipping
  Learn More About Free Freight
Backordered
Estimated Availability September 15, 2021
Shipping to60601

Little Giant 8-CBA - 4/10 HP Cast Bronze Submersible Sump Pump w/ Diaphragm Switch
Little Giant 8-CBA - 4/10 HP Cast Bronze Submersible Sump Pump w/ Diaphragm Switch
Model: 508357
$374.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

3240 Gallons

Switch Type

Diaphragm

  • Big John Submersible Sump Pump
  • Continuous duty rated for residential & light commercial use
  • Polypropylene Base w/ Epoxy Coated Cast Bronze Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • A great option for sump pits w/ brine water (water softener)
  • Integral Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 4/10 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Corrosion resistant design minimizes clogging
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper Sintered-Sleeve Bearing & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

508357
specs product image PID-10815
Motor
Voltage
120 Volt
Running Amps
10
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Pump
Housing Material
Cast-Bronze
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
3240
GPH @ 5 feet
3240
GPH @ 10 feet
2520
GPH @ 15 feet
1560
GPH @ 20 feet
360
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7-10
Float Off
1-4
Manual Override
No
Engine
Horsepower
.4 hp
Overview
Weight
21 Pounds
Consumer Warranty
2 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
6 Inches
UPC
010121083578

Reviews

(2)
Little Giant 508357 Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Sump Pump Expert
Will the brine during a regeneration harm this pump if the water softener is drained directly to the sump pit?
Will F.
from Illinois
March 21, 2017
