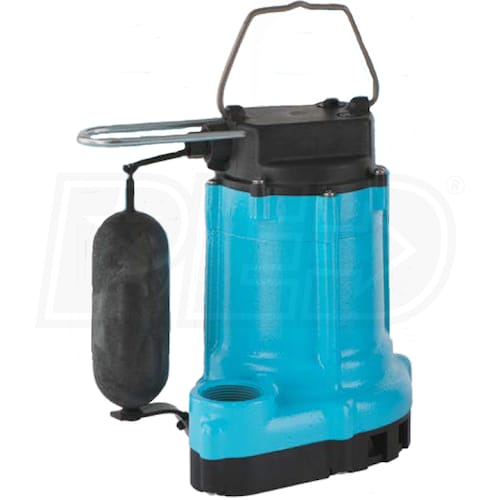

Little Giant 9EC-CIA-SFS 4/10-HP Thermoplastic / Cast Iron Submersible Effluent Pump w/ Vertical Float Switch

Model:

509804

Write a Review
$300.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability June 18, 2021
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Little Giant 9EC-CIA-SFS 4/10-HP Thermoplastic / Cast Iron Submersible Effluent Pump w/ Vertical Float Switch
Little Giant 9EC-CIA-SFS 4/10-HP Thermoplastic / Cast Iron Submersible Effluent Pump w/ Vertical Float Switch
Model: 509804
$300.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Style

Effluent

GPH

4200 Gallons

Switch Type

Vertical

  • Continuous Duty Rated Automatic Submersible Effluent Pump
  • Continuous duty rated for sump & effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (7.5-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 30-Foot Power Cord
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509804
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Float On
7-10
Float Off
2-5
Max Head
40 Feet
Engine
Horsepower
.4 hp
Overview
Weight
27.5 Pounds
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
11.8 Inches
UPC
010121003170
