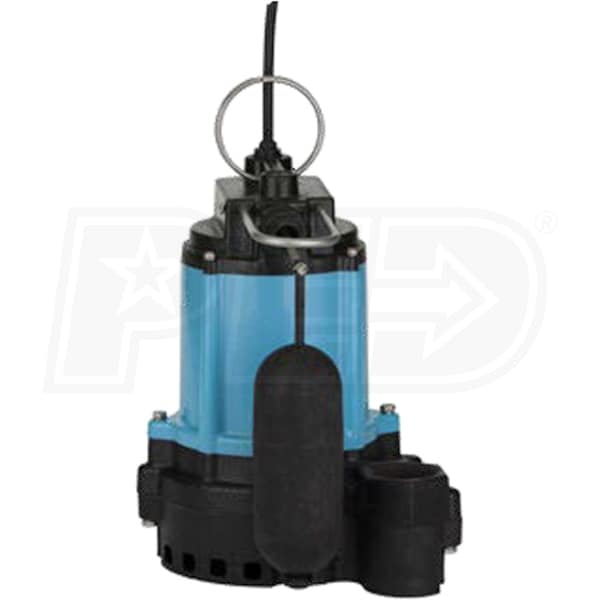

Little Giant 10EC-CIA-SFS - 1/2 HP Cast Iron Sump / Effluent Pump w/ Vertical Float (20' Cord) (230V)

Model:

510856

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant 10EC-CIA-SFS - 1/2 HP Cast Iron Sump / Effluent Pump w/ Vertical Float (20' Cord) (230V)
Little Giant 10EC-CIA-SFS - 1/2 HP Cast Iron Sump / Effluent Pump w/ Vertical Float (20' Cord) (230V)
Model: 510856
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4020 Gallons

Switch Type

Vertical

  • 230V Automatic Submersible Cast Iron Sump / Effluent Pump
  • Continuous duty rated for sump & light effluent applications
  • Cast Iron Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection (230V)
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 36' Max Shutoff Head
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

510856
specs product image PID-80198
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Outlet Diameter
1-1/2 Inch
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Handles Solids
Yes
Maximum PSI
15.6
Total Head Lift
36 Feet
Float Type
Vertical Float

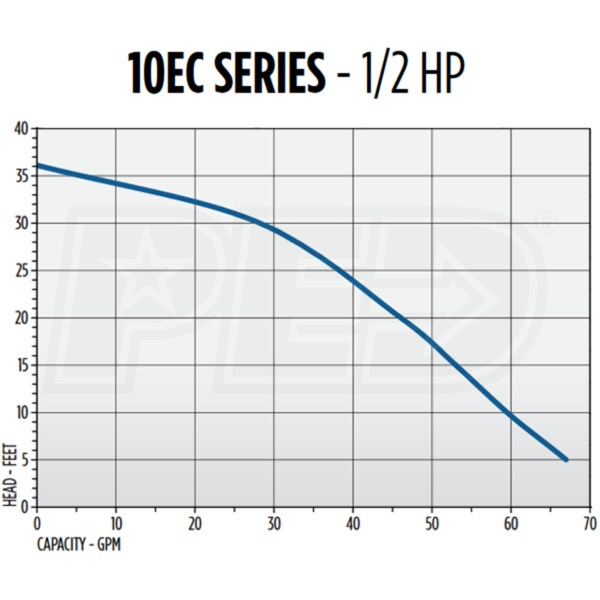

GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 15 feet
3120
GPH @ 20 feet
1680
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.5 hp
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Product Length
8.48 Inches
Product Width
10.66 Inches
Product Height
11.07 Inches
