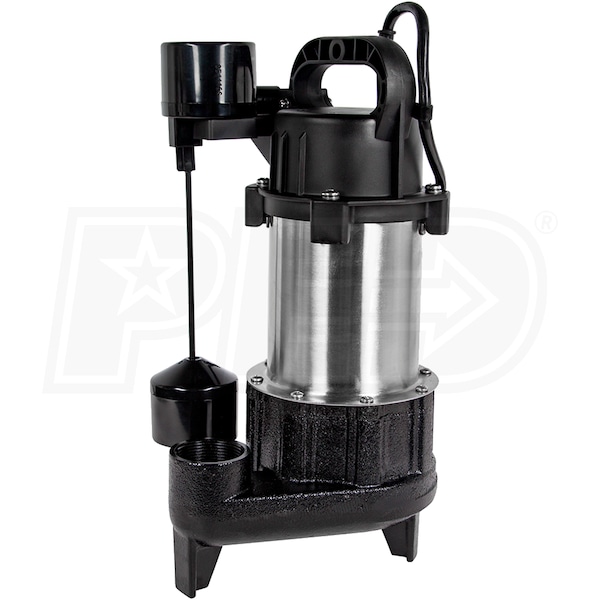

Little Giant Select Series LG-SS100V
Little Giant Select Series LG-SS100V
Hover to zoom
1 Of 5

Little Giant Select Series LG-SS100V - 1 HP Cast Iron & Stainless Steel Submersible Sump Pump w/ Vertical Float Swtich

Model:

LG-SS100V

Write A Review
Coming Soon
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant Select Series LG-SS100V - 1 HP Cast Iron & Stainless Steel Submersible Sump Pump w/ Vertical Float Swtich
Little Giant Select Series LG-SS100V - 1 HP Cast Iron & Stainless Steel Submersible Sump Pump w/ Vertical Float Swtich
Model: LG-SS100V
Coming Soon
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

5300 Gallons

Switch Type

Vertical

  • Little Giant Select Series Automatic Submersible Sump Pump
  • For high volume clear water applications in sump basins & life stations
  • Stainless Steel & Cast Iron Construction
  • Heavy-duty design for long life in harsh sump pit applications
  • Oil-Filled, 1 HP Permanent Split Capacitor Motor (PSC)
  • Thermally-protected, with automatic reset for extended motor life
  • Piggyback Vertical Float Switch
  • Versatile design allows for automatic or manual operation
  • Cast Iron Impeller
  • Non-clogging design passes up to 3/4" spherical solids
  • Professional Grade Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 300 Stainless Steel Hardware
  • Prevents rust and corrosion that's common with sheet metal parts
  • 1-1/2" FNPT Discharge
  • Easily connect to your current discharge without any changes
  • 10-Foot Power Cord
  • Ideal for use in residential applications
  • 2-Year Limited Warranty

Specifications

LG-SS100V
specs product image PID-82408
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
5300
GPH @ 5 feet
4800
GPH @ 10 feet
4300
GPH @ 15 feet
3700
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9.5-11.5
Float Off
3.5-5.5
Manual Override
Yes
Max Head
35 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Weight
40 Pounds
Consumer Warranty
2 Years
Product Length
14 Inches
Product Width
11 Inches
Product Height
16 Inches
UPC
010121001084
Additional Model Numbers

14942676, LG-SS100V
