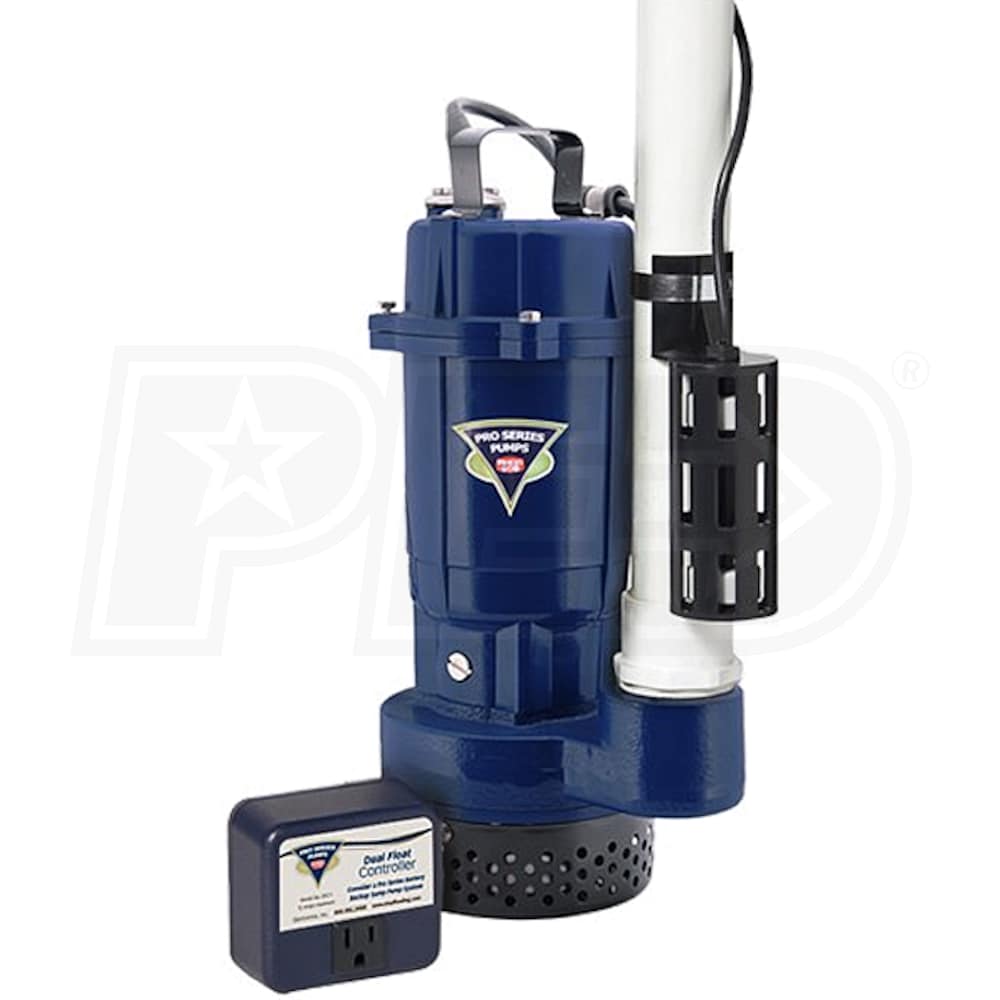

Pro Series ST1033 1/3 HP Cast Iron Submersible Sump Pump w/ Dual Float Switch
Model:
ST1033-DFC1
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
4100 Gallons
Switch Type
Dual Vertical Sensor
- Cast Iron/Cast Aluminum Construction
- Energy Efficient Permanent Split Capacitor (PSC) Motor
- Permanent split capacitor (PSC) motor and dual ball bearings
- Allow for lower amp draw
- Piggy-back Dual Float Switch with Protective Cage
- Continuous Duty Rated
- Stainless Steel Shaft
- Dual Carbon/Ceramic Seals
- 10’ Cord
- Will Fit in 10” Diameter Sump Pit
- Water Cooled (No Oil)
- 18 Month Warranty (1 year for Continuous Duty)
Specifications
ST1033-DFC1
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
7.6
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
4100
GPH @ 10 feet
2770
Discharge Port Size
1-1/2 Inch
Float Cord
10 Feet
Check Valve Included
No
Float On
Adjustable
Float Off
Timer Based
Manual Override
Yes
Max Head
29 Feet
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Weight
17 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
7.5 Inches
Product Width
5 Inches
Product Height
13.75 Inches
UPC
717301121968
Additional Model Numbers
ST1033, ST1033-DFC1
Reviews
(29)
Pro Series ST1033-DFC1 Reviews & Ratings
Product Q&A
(4)
Product Questions
Answered by Jim, the Sump Pump Expert
What does min. sump basin size mean?
John D
from Massachusetts
February 02, 2013
I would like to know how many watts a 1/3 or 1/2 hp sump pump has, because i was think of buying a portable generator in case the power goes off.
Tom B.
from New York
September 03, 2012
Looking for a pump that will run continuously for a water fall. Pumping about 7 vertical feet and 20 horizontal feet. Waterfall is about 15 feet long and one and a half to two feet wide.
Todd Wragge
from Iowa
January 04, 2012
I need a small sump pump that will withstand pumping 15% sodium hypochlorite (bleach).
Tim Fitzgerald
from North Carolina
April 28, 2011
