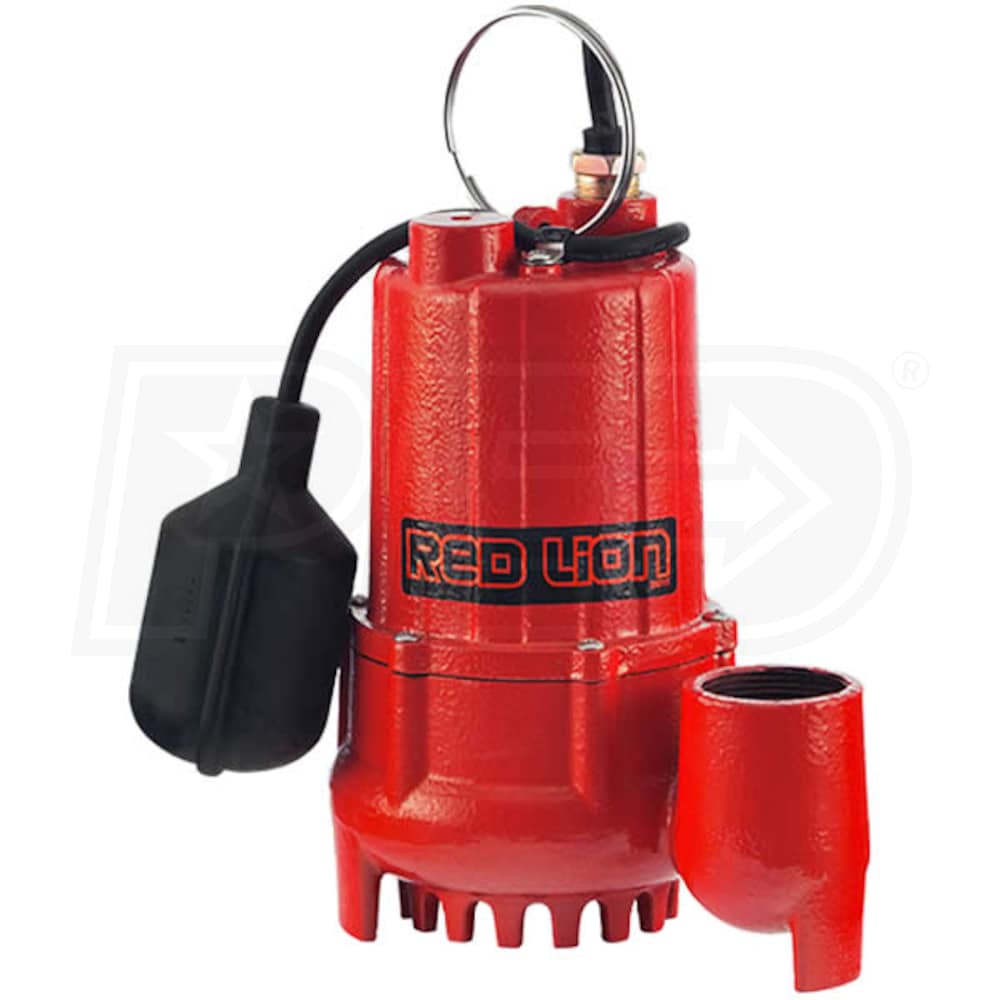

Red Lion RL-SC33T - 1/3 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Red Lion RL-SC33T - 1/3 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
+
Share This Product
-
Product Description
-
3Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
3350
Gallons
Switch Type
Style
Primary
GPH
3350 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Automatic Submersible Sump Pump
- Ideal for high-volume water removal
- Heavy-Duty Cast Iron Construction
- For rapid heat dissipation and extended life
- 1/3 HP PSC Motor
- An energy-efficient motor for maximum performance
- Piggyback Tethered Float Switch
- For use in basins 18" diameter or larger
- Clog-Resistant Design
- Capable of passing 3/8" diameter solids
- Professional-Grade Double Shaft Seal
- Assures maximum protection for extended pump life
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3350
GPH @ 5 feet
2870
GPH @ 10 feet
2390
GPH @ 15 feet
1550
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13
Float Off
5
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
29 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141674
Additional Model Numbers
RL-SC33T, 14942744
Style
GPH
3350
Gallons
Switch Type
Style
Primary
GPH
3350 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Automatic Submersible Sump Pump
- Ideal for high-volume water removal
- Heavy-Duty Cast Iron Construction
- For rapid heat dissipation and extended life
- 1/3 HP PSC Motor
- An energy-efficient motor for maximum performance
- Piggyback Tethered Float Switch
- For use in basins 18" diameter or larger
- Clog-Resistant Design
- Capable of passing 3/8" diameter solids
- Professional-Grade Double Shaft Seal
- Assures maximum protection for extended pump life
- 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3350
GPH @ 5 feet
2870
GPH @ 10 feet
2390
GPH @ 15 feet
1550
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13
Float Off
5
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
29 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141674
Additional Model Numbers
RL-SC33T, 14942744
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3350
GPH @ 5 feet
2870
GPH @ 10 feet
2390
GPH @ 15 feet
1550
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
13
Float Off
5
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
29 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141674
Additional Model Numbers
RL-SC33T, 14942744
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
can a theter switch be replaced with afloat switch and what cost differance is there
Donna
from Wisconsin
April 25, 2012
Answer
As long as the original switch utilizes a "piggyback" style plug and the pump and switch each have their own power cord, you can replace that tether switch with any other "piggyback" style Float Switch. Please note however that most "piggyback" style floats will only work for pumps that are rated at 1/2HP and 15 amps or less.
