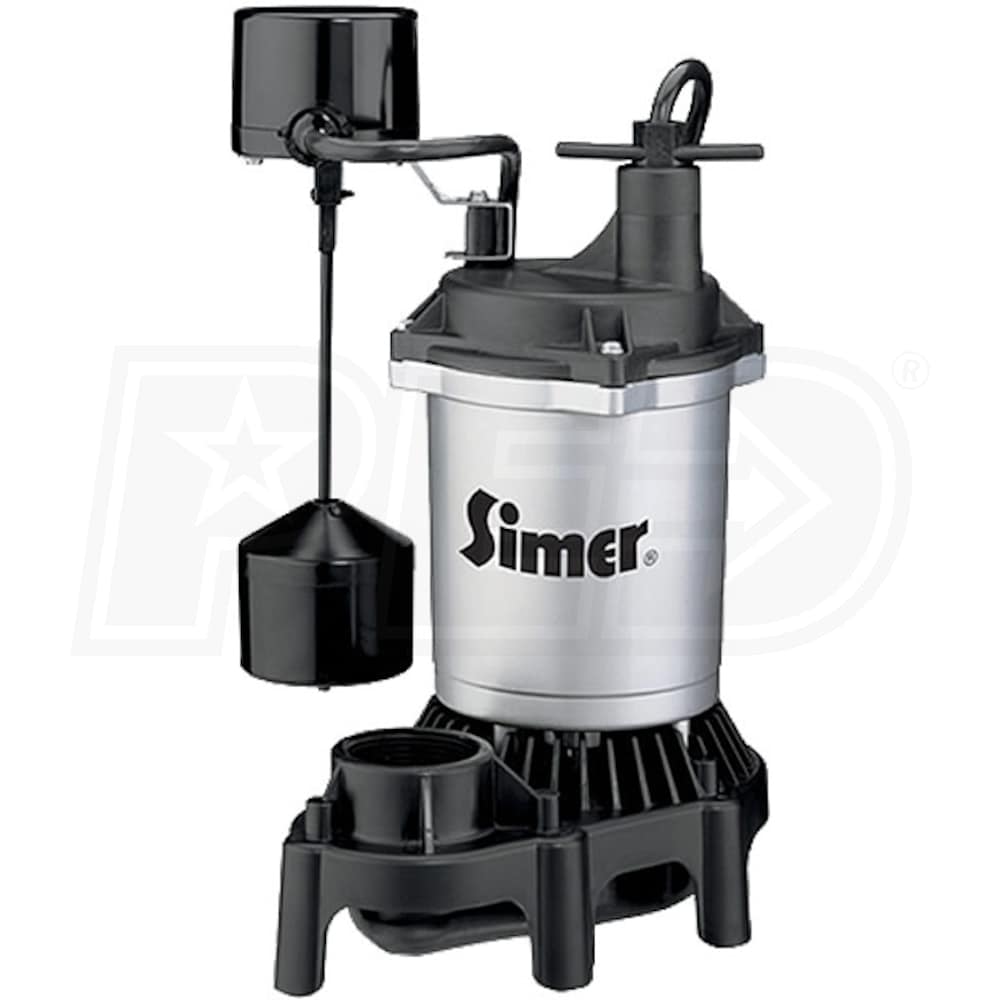

Simer 2168 - 3/4 HP Zinc & Thermoplastic Sump Pump w/ Vertical Float Switch
Model: 2168
+
Share This Product
-
Product Description
-
10Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
4700
Gallons
Switch Type

Style
Primary
GPH
4700 Gallons
Switch Type
Vertical
Features
Features
- Automatic Submersible Sump Pump
- Designed for high output residential sump applications
- Zinc Motor Housing
- Superior heat dissipation, for cooler operation that extends pump life
- 3/4 HP 115V Motor w/ Thermal Overload Protection
- Energy efficient design w/ low amp draw (5.5-Amps @ full load)
- Composite Base Construction
- Minimizes corrosion in areas that are normally submerged
- Piggyback Vertical Float Switch - For Sump Basins 10" or Larger
- Provides reliable, automatic operation and provides easy service
- Also allows running the pump manually during an emergency
- Smooth Flow Hydraulics™
- Delivers high performance for demanding applications
- Stainless Steel Hardware & Fasteners
- Protects the pump from rust and corrosion for increased longevity
- 1-1/2" NPT Discharge - Can Handle Solids up to 3/16"
- Provides easy connection to your existing discharge line
- 8-Foot Grounded Power Cord
- Allows for easy connection in residential applications
- 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.5
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Zinc
Solids Handling Size
.1875 inch
Float Type
Vertical Float
GPH @ 0 feet
4700
GPH @ 5 feet
4200
GPH @ 10 feet
3540
GPH @ 15 feet
2820
GPH @ 20 feet
1800
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.5 Inches
Float Off
3 Inches
Manual Override
Yes
Engine
Horsepower
.75 hp
Overview
Assembly Required
Yes
Weight
10 Pounds
Consumer Warranty
2 Years
UPC
022315377783
Style

GPH
4700
Gallons
Switch Type

Style
Primary
GPH
4700 Gallons
Switch Type
Vertical
Features
Features
- Automatic Submersible Sump Pump
- Designed for high output residential sump applications
- Zinc Motor Housing
- Superior heat dissipation, for cooler operation that extends pump life
- 3/4 HP 115V Motor w/ Thermal Overload Protection
- Energy efficient design w/ low amp draw (5.5-Amps @ full load)
- Composite Base Construction
- Minimizes corrosion in areas that are normally submerged
- Piggyback Vertical Float Switch - For Sump Basins 10" or Larger
- Provides reliable, automatic operation and provides easy service
- Also allows running the pump manually during an emergency
- Smooth Flow Hydraulics™
- Delivers high performance for demanding applications
- Stainless Steel Hardware & Fasteners
- Protects the pump from rust and corrosion for increased longevity
- 1-1/2" NPT Discharge - Can Handle Solids up to 3/16"
- Provides easy connection to your existing discharge line
- 8-Foot Grounded Power Cord
- Allows for easy connection in residential applications
- 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
5.5
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Zinc
Solids Handling Size
.1875 inch
Float Type
Vertical Float
GPH @ 0 feet
4700
GPH @ 5 feet
4200
GPH @ 10 feet
3540
GPH @ 15 feet
2820
GPH @ 20 feet
1800
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.5 Inches
Float Off
3 Inches
Manual Override
Yes
Engine
Horsepower
.75 hp
Overview
Assembly Required
Yes
Weight
10 Pounds
Consumer Warranty
2 Years
UPC
022315377783
