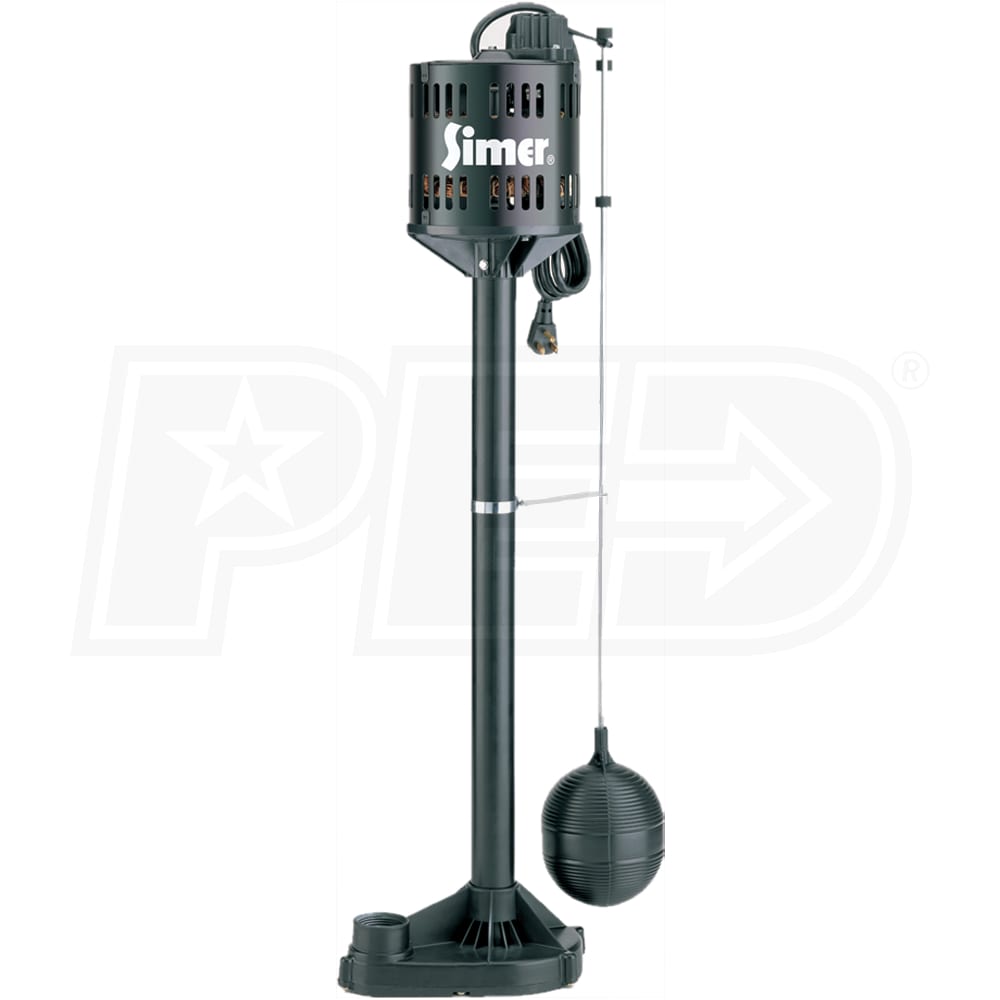

Simer 5020B - 1/3 HP Thermoplastic Pedestal Pump w/ Vertical Float Switch

Model:

5020B-04

Write a Review
$93.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Simer 5020B - 1/3 HP Thermoplastic Pedestal Pump w/ Vertical Float Switch
Simer 5020B - 1/3 HP Thermoplastic Pedestal Pump w/ Vertical Float Switch
Model: 5020B-04
$93.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

3480 Gallons

Switch Type

Vertical

  • Automatic Pedestal Sump Pump
  • Ideal for sump basins 12" and larger
  • Durable Thermoplastic Construction
  • Corrosion and rust-resistant
  • Energy Efficient 3.5A Motor
  • Automatic thermal overload protection provides added protection
  • Fully-Adjustable Vertical Float Switch w/ Metal Switch Arm
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

5020B-04
Base
Min Sump Basin Size
12 Inch
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
Yes
Starting Amps
9.8
Pump
Housing Material
Thermoplastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3480
GPH @ 5 feet
3000
GPH @ 10 feet
2460
GPH @ 15 feet
1620
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Float On
11 Inches
Float Off
5 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
15 Pounds
Consumer Warranty
1 Year
UPC
017561910235
Additional Model Numbers

5020B, 5020B-04

Reviews

(4)
Simer 5020B-04 Reviews & Ratings

Product Q&A

(2)
Product Questions Answered by Jim, the Sump Pump Expert
Question
+
Pedestal vs Non Pedestal sump pump??
Jim Olson
from California
January 03, 2011
Answer
Pedestal sump pumps have become less common and manufacturers are making fewer of them every year.

Here are some advantages of submersible pumps.

If you want a pump that's quiet, less likely to burn out, and can handle a high volume of water, a submersible pump is the style of pump to buy.

Noise Level - The motor and impeller are underwater, these pumps aren’t as loud as a pedestal style pumps, that have their motor exposed above the sump pit.

Running Temperature – By having the motor below water, a submersible pump runs cooler especially during extended periods of use. Pedestal style pumps have no cooling fans, so their motor is cooled by the air around the pump, which is very ineffective during long run times.

Output & Solid Handling- Submersible sump pumps have higher outputs compared to Pedestal style sump pump. They're also able to handle solids that may be present that would otherwise clog a Pedestal pump.
Was this answer helpful?
Yes
1
No
0
Question
+
What is a Vertical Float Switch?
Jon
from Illinois
December 29, 2010
Answer
A vertical float switch is a ball that floats above the water. As the water level rises so does the float which, at some point, it will trigger the switch to turn the pump on. This float has limited movement up and down and side to side, giving it less freedom of movement and less of a chance to get stuck as a tethered float would.
Was this answer helpful?
Yes
1
No
0
