Features
- Slimline Automatic Submersible Utility Pump w/ 2" Discharge
- Allows pump to operate in spaces 8-3/4" diameter or larger
- Molded Resin, Rubber Protected EL-1 Relay (Req. 4.5" - On)
- No control panel/float, electrodes detect water to start pump
- Internal timer eliminates frequent on/off in rough conditions
- 2/3-HP 6.1-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3744 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 32' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
LB-480A
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
6.1
Power Cord Length
32 Feet
Pump
Gallons Per Minute
62.4 Gallons
Outlet Diameter
2 Inch
Mechanical Seal Material
Silicon Carbide
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
39.5 Feet
Float Type
Electronic
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
0.66 hp
Accessories
Float Switch
Yes
Overview
Product Category
Water Pump
Weight
30 Pounds
Consumer Warranty
2 Years
Product Width
8.75 Inches
Product Height
11.25 Inches
UPC
894787000380
Additional Model Numbers
LB480A, LB-480A
Reviews
(7)
Tsurumi Pump LB-480A Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Sump Pump Expert
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

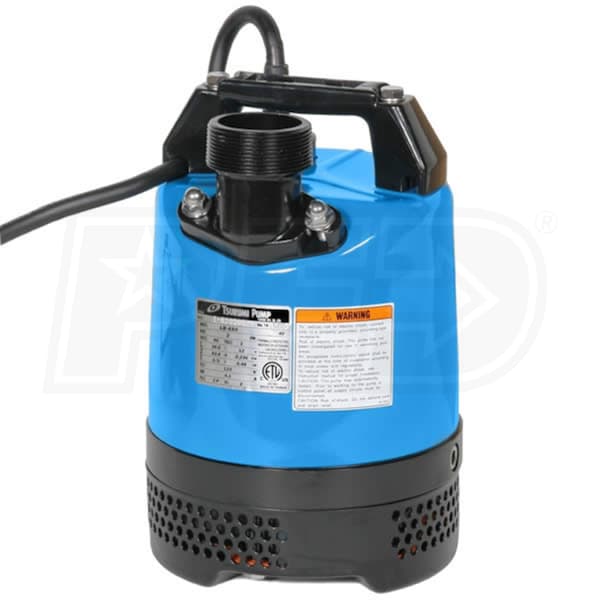

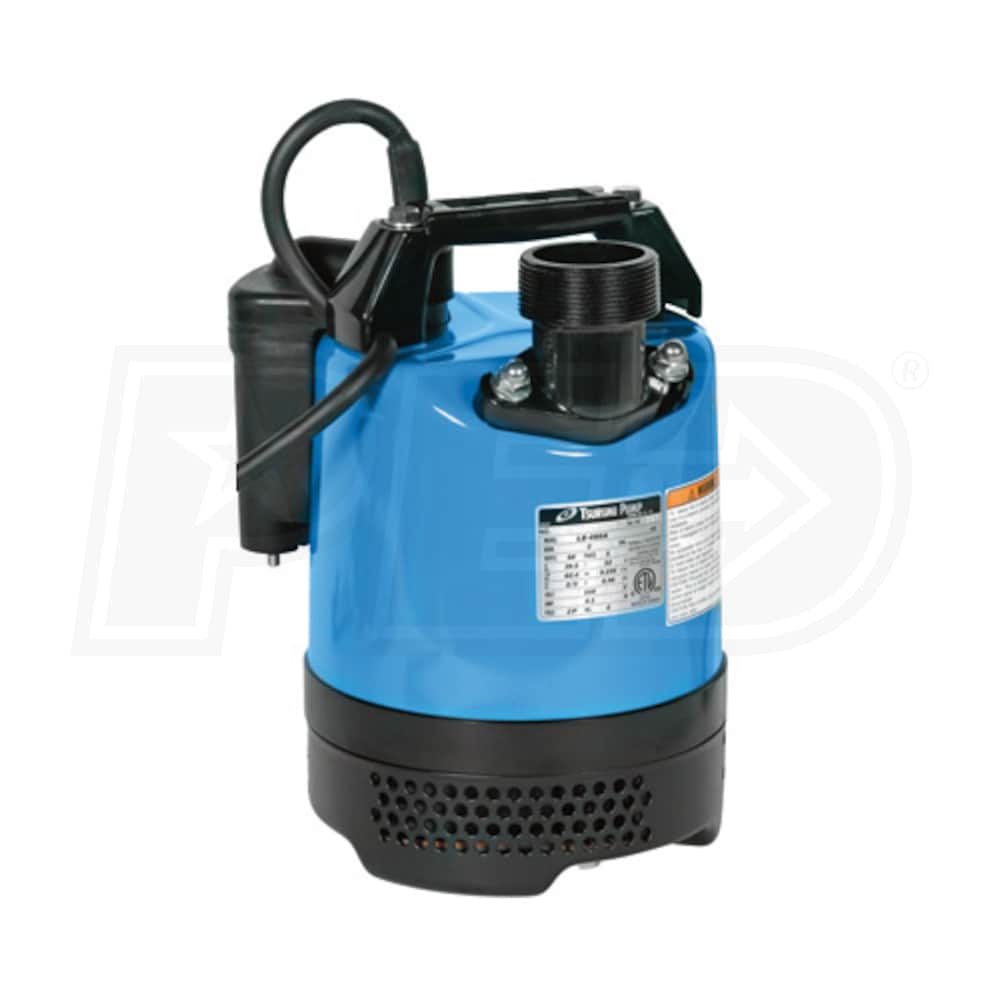

Tsurumi LB-480A - 62.4 GPM (2") Automatic Submersible Utility Pump
