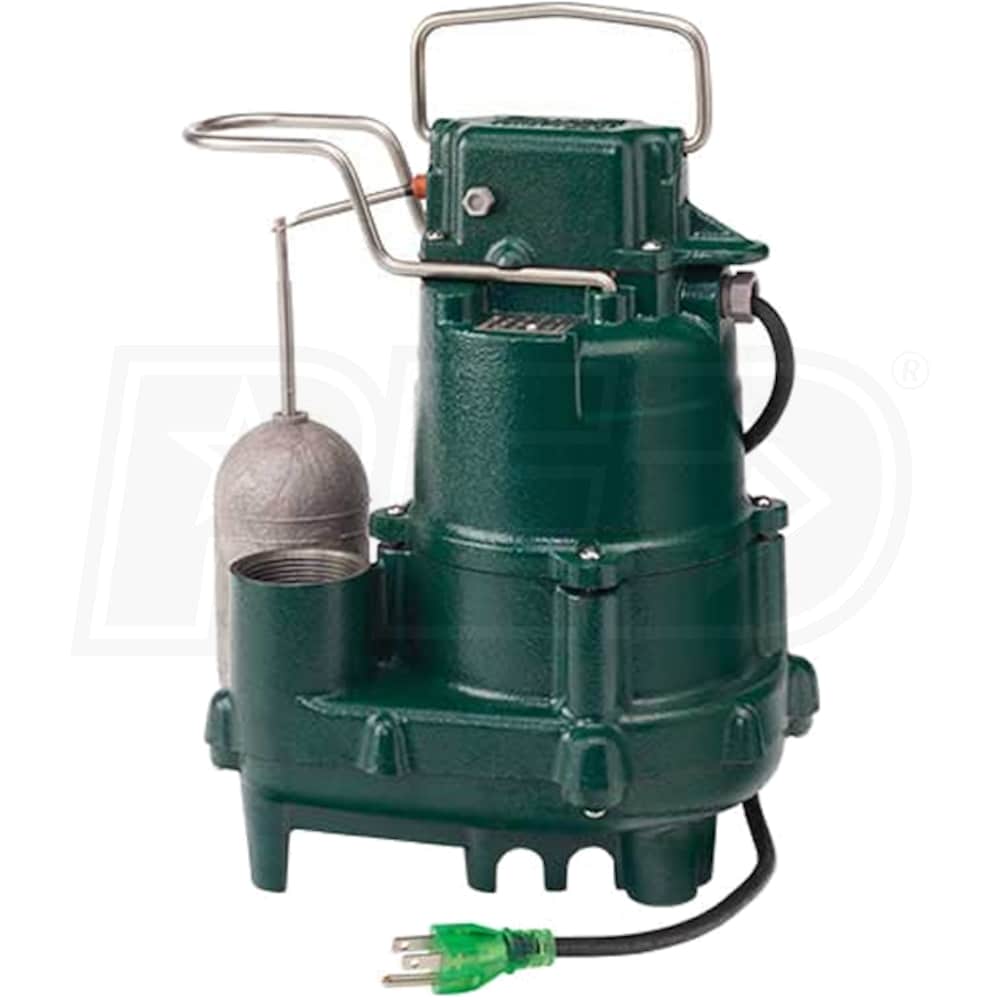

Zoeller M95 - 1/2 HP Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Zoeller M95 - 1/2 HP Premium Cast Iron Submersible Sump Pump w/ Vertical Float Switch
+
Share This Product
-
Product Description
-
16Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4800
Gallons
Switch Type
Style
Primary
GPH
4800 Gallons
Switch Type
Vertical
Features
Features
- Zoeller M95 Premium Series Automatic Submersible Sump Pump
- For residential / light commercial dewatering, groundwater transfer & effluent
- NEW For 2017 *5-Year Limited Warranty*
- Attention to detail in this series for total reliability & trouble free performance
- ALL CAST IRON (Motor / Pump Housing, Switch Case & Base)
- Powder-coated epoxy finish for superior corrosion-resistance
- Maximizes heat dissipation for cooler operation during extended periods
- Polypropylene Float Operated Vertical Switch w/ Viton® Switch Boot
- Zoeller's newest & longest lasting 2-pole mechanical switch
- 1/2 HP Permanent Split Capacitor 115V Motor (3450 RPM)
- Energy efficient, only draws 10.5-Amps
- Thermally Protected Motor w/ Automatic Reset
- Oil-filled, hermetically-sealed design reduces chance of motor damage
- Non-Clogging Engineered Thermoplastic Vortex Impeller
- Screenless, bottom intake designed to pass solids up to 1/2"
- Upper/Lower Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
- Provides increased durability & less heat for extended protection
- 1-½" NPT Discharge
- Compatible with most residential & light commercial applications
- 15-Foot Power Cord (UL Listed) w/ LED Lighted Plug End
- Easily see when there is power available to the the pump
- Industry Leading Quality Control
- Entire unit is 100% pressure tested after assembly
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float

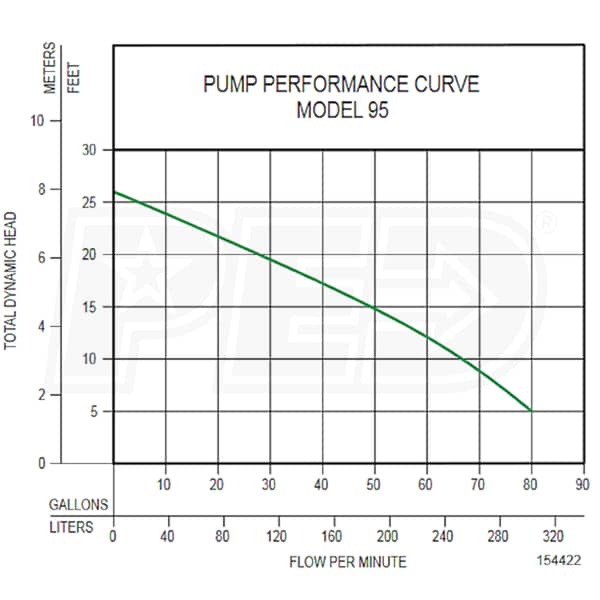

GPH @ 0 feet
4800
GPH @ 5 feet
4800
GPH @ 10 feet
3960
GPH @ 15 feet
3000
GPH @ 20 feet
1620
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9.5
Float Off
2.5
Manual Override
No
Max Head
26 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
34 Pounds
Consumer Warranty
5 Years
Product Length
10.09 Inches
Product Width
7.875 Inches
Product Height
12.125 Inches
UPC
053514399573
Additional Model Numbers
M95, 95-0001
Style
GPH
4800
Gallons
Switch Type
Style
Primary
GPH
4800 Gallons
Switch Type
Vertical
Features
Features
- Zoeller M95 Premium Series Automatic Submersible Sump Pump
- For residential / light commercial dewatering, groundwater transfer & effluent
- NEW For 2017 *5-Year Limited Warranty*
- Attention to detail in this series for total reliability & trouble free performance
- ALL CAST IRON (Motor / Pump Housing, Switch Case & Base)
- Powder-coated epoxy finish for superior corrosion-resistance
- Maximizes heat dissipation for cooler operation during extended periods
- Polypropylene Float Operated Vertical Switch w/ Viton® Switch Boot
- Zoeller's newest & longest lasting 2-pole mechanical switch
- 1/2 HP Permanent Split Capacitor 115V Motor (3450 RPM)
- Energy efficient, only draws 10.5-Amps
- Thermally Protected Motor w/ Automatic Reset
- Oil-filled, hermetically-sealed design reduces chance of motor damage
- Non-Clogging Engineered Thermoplastic Vortex Impeller
- Screenless, bottom intake designed to pass solids up to 1/2"
- Upper/Lower Oil Fed Cast Iron Bearings & Carbon/Ceramic Shaft Seal
- Provides increased durability & less heat for extended protection
- 1-½" NPT Discharge
- Compatible with most residential & light commercial applications
- 15-Foot Power Cord (UL Listed) w/ LED Lighted Plug End
- Easily see when there is power available to the the pump
- Industry Leading Quality Control
- Entire unit is 100% pressure tested after assembly
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4800
GPH @ 5 feet
4800
GPH @ 10 feet
3960
GPH @ 15 feet
3000
GPH @ 20 feet
1620
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9.5
Float Off
2.5
Manual Override
No
Max Head
26 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
34 Pounds
Consumer Warranty
5 Years
Product Length
10.09 Inches
Product Width
7.875 Inches
Product Height
12.125 Inches
UPC
053514399573
Additional Model Numbers
M95, 95-0001
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4800
GPH @ 5 feet
4800
GPH @ 10 feet
3960
GPH @ 15 feet
3000
GPH @ 20 feet
1620
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
9.5
Float Off
2.5
Manual Override
No
Max Head
26 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
34 Pounds
Consumer Warranty
5 Years
Product Length
10.09 Inches
Product Width
7.875 Inches
Product Height
12.125 Inches
UPC
053514399573
Additional Model Numbers
M95, 95-0001
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Is the Zoeller M95 a new pump?
Michael
from Connecticut
April 07, 2017
Answer
YES, it is Michael! The M95 was just recently introduced by Zoeller as an upgrade to their flagship M98 pump. The new M95 offers an improved switch, pumping capacity, a 15-foot power cord (UL Listed) w/ LED lighted plug end and a FIVE year warranty.
+−
What is the difference between the M98 and M95?
Dino
from Illinois
March 31, 2017
Answer
The M95 is Zoeller's latest, greatest and updated version to the flagship M98 pump. Same dimensions as the M98 but with the following upgrades: Higher pumping capacity, 4800GPH @ 0'hd (compared to M98's 4320GPH @ 0'hd), improved switch for longer life, lighted plug, polypropylene made, a float-operated vertical switch w/ Viton® Switch Boot, and a FIVE Year warranty.
