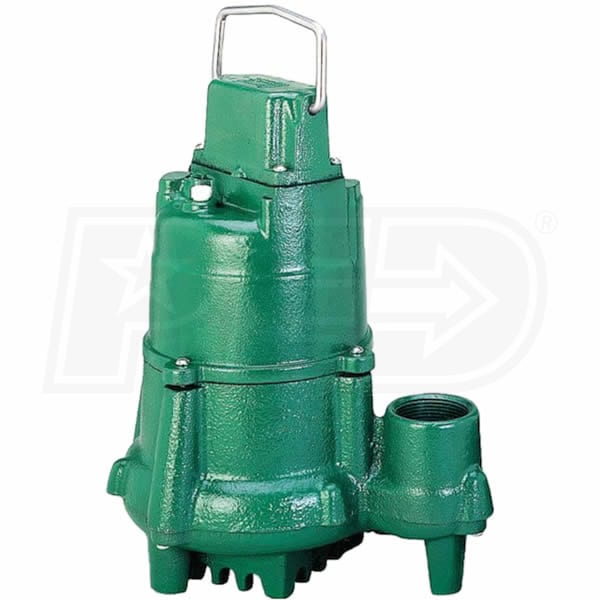

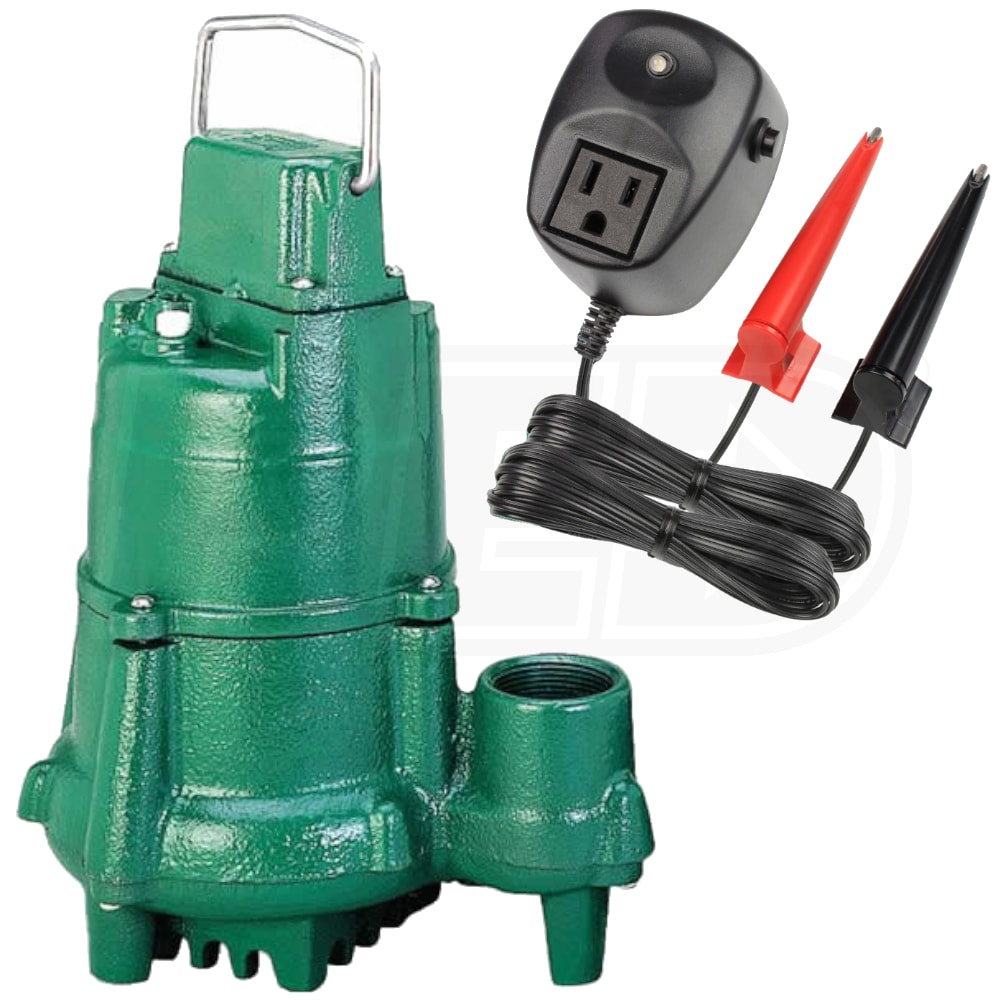

Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump & HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms

Model:

SPD-N98-HC6000v2

Write a Review
$371.49
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601

Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump & HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms
Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump & HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms
Model: SPD-N98-HC6000v2
$371.49
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4320 Gallons

Switch Type

Electronic



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Includes HydroCheck HC6000v2

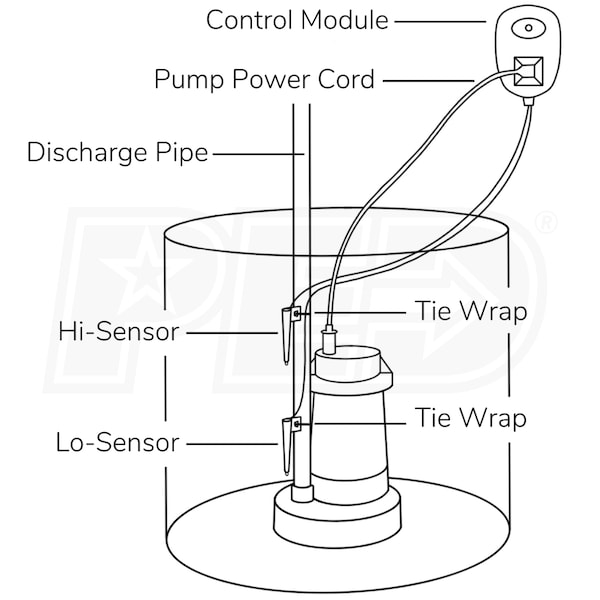

  • Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms
  • Submersible Cast Iron Sump Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Thermally Protected, Permanent Split Capacitor Motor
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • Product Includes
    • (1) Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic) (N98)
    • (1) HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms (HC6000)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Zoeller N98 - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic) (N98)
  • (1) HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms (HC6000)
SPD-N98-HC6000v2
specs product image PID-117046
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Electronic

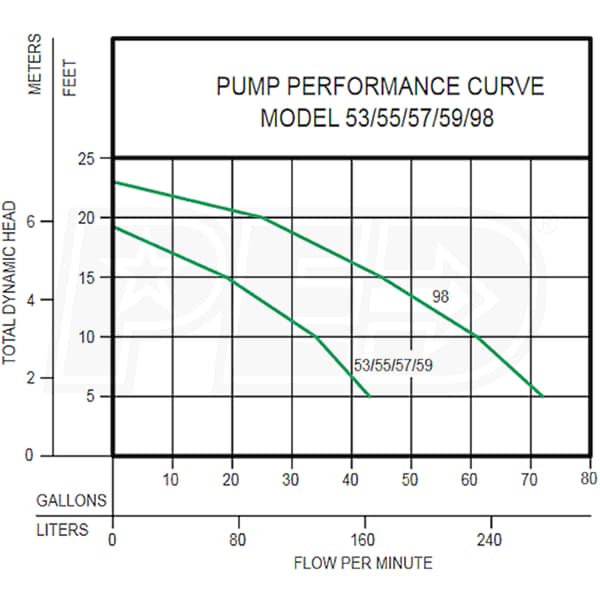

GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
29.2
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
HC6000v2
Motor
Voltage
120 Volt
Power Cord Length
12 Feet
Rated Capacity
14
Nominal Voltage
120 Volt
Pump
Float Type
Electronic
Overview
Consumer Warranty
5 Years
