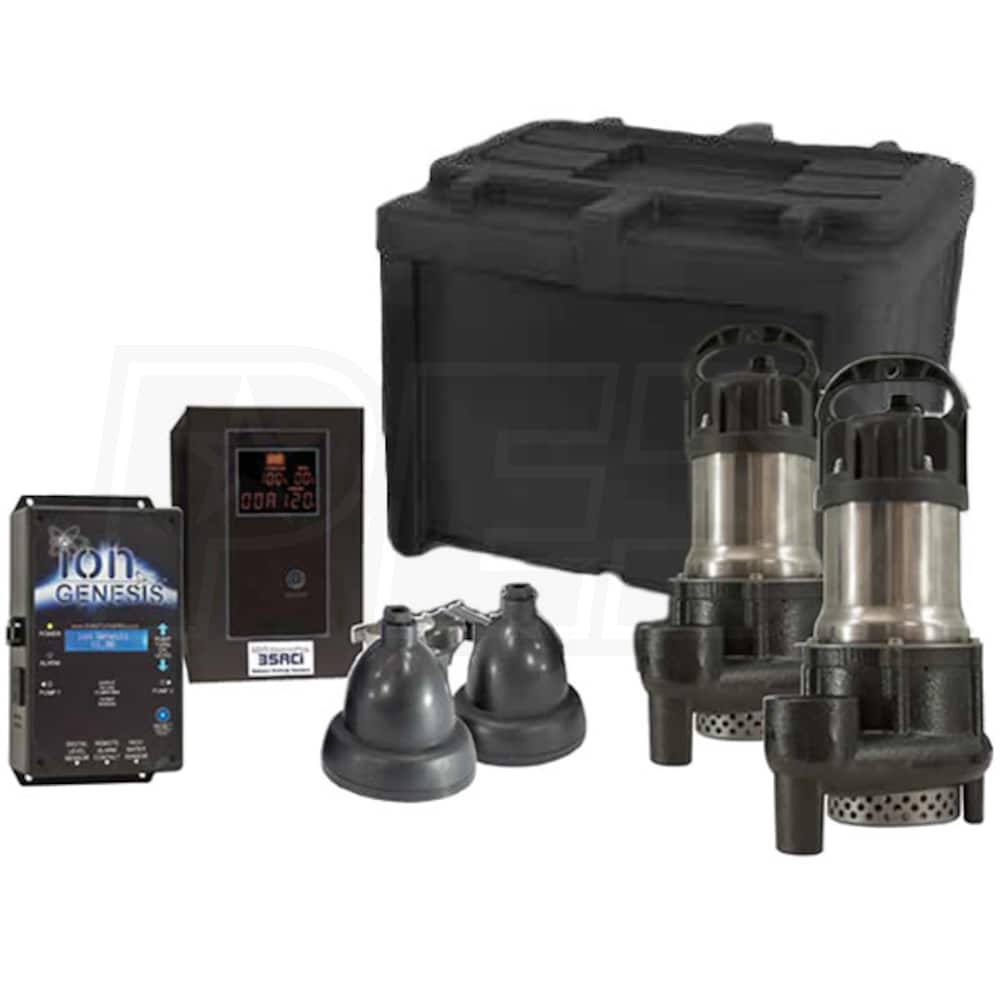

2 Digital Level Sensors w/ Discharge Pipe Mounting Brackets
Eliminates moving parts associated with 98% of switch failures
Determines pump malfunctions by trending water levels in pit
80 dB Audible Alarm and Illuminated LCD Screen
Hear and see when problems occur
Dry Contacts For Remote Monitoring
Optional dialer for remote "Alerts"
Uses ONE or TWO Deep Cycle Batteries (Not Included)
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
12 Volt DC/120 Volt AC
Thermal Protection
Yes
Battery Included
No
Oil Free Motor
No
Pump
Housing Material
Stainless Steel
Float Type
Ion Sensor
GPH @ 10 feet
3000
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
3 Years
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
12 Volt DC/120 Volt AC
Thermal Protection
Yes
Battery Included
No
Oil Free Motor
No
Pump
Housing Material
Stainless Steel
Float Type
Ion Sensor
GPH @ 10 feet
3000
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
3 Years
Reviews
(3)
+−
iON Products MET20339 Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jim, the Sump Pump Expert
+−
How long will it run on battery mode compared to a 12 volt pump like basement watchdog uses?
Troy
from Illinois
December 17, 2014
Answer
A standard 12V battery backup system like the Basement Watchdog will run approximately 7 hours continuous and 24-36 hours non-continuous or cycling when using the recommended fully charged battery. That said, these 12V systems will also loose pumping capacity (GPH) as the battery discharges much like a battery powered remote control car that slows as the battery dies, or any other battery powered device. The iON 35ACi System on the other hand is a 12V INVERTER system that converts 12V battery power into standard 120V electricity which means that you get full pumping capacity (GPH) until the batteries are fully discharged. The flow chart on page 8 of the OPERATIONS MANUAL will show you how much time you can expect when using 2 fully charged recommended batteries, from continuous duty up to 10% duty cycles.
If you have additional questions, please let me know.
