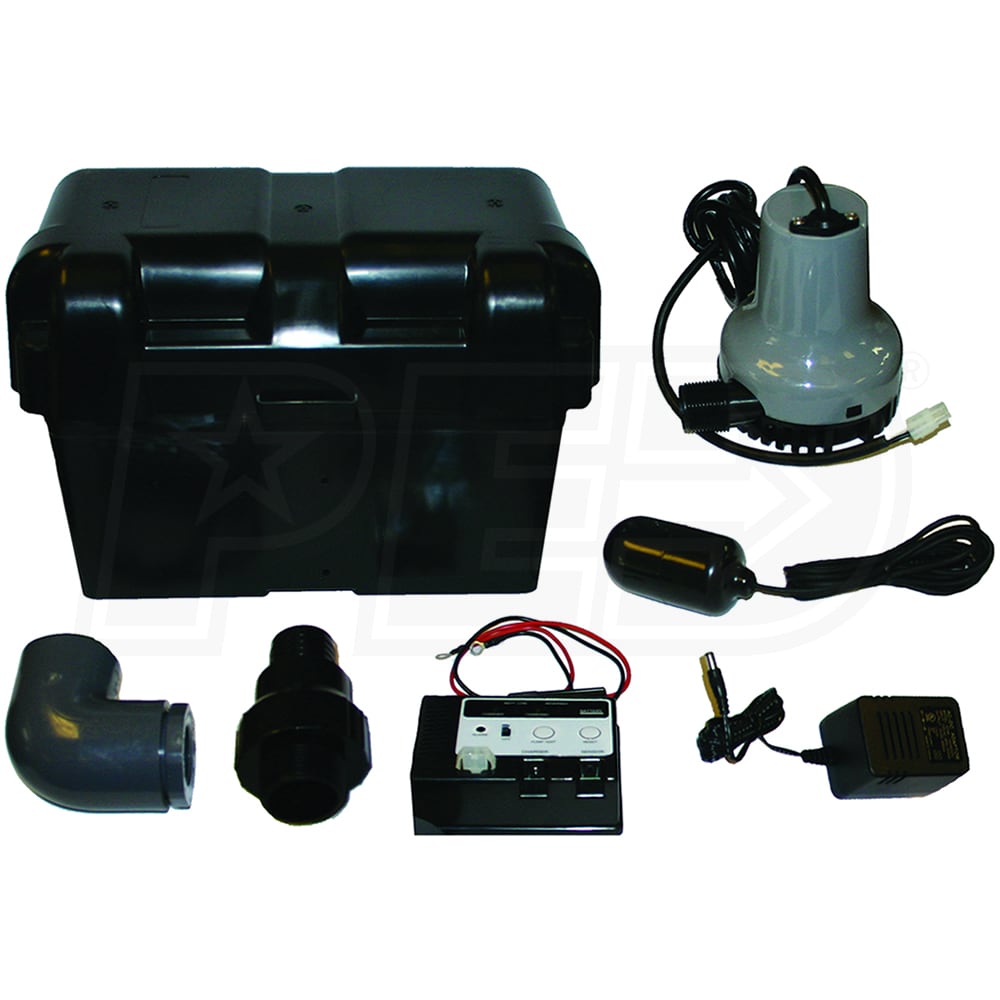

Barnes BUS - Battery Backup Sump Pump System (1000 GPH @ 10')
Model: 100940
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
1000
Gallons
Switch Type

Style
Back-up
GPH
1000 Gallons
Switch Type
Vertical
Features
Features
- Barnes BUS - 12V Battery Backup Sump Pump System
- Provides added protection during power outages and high water events
- Starts Automatically When Your Existing Pump Fails
- Operates independently from primary sump pump
- 12-Volt, Non-Corrosive Thermoplastic Pump
- Safe for use in fresh or salt (water softener residue) water
- Pumps 1000 gallons-per-hour @ 10' lift
- 12V Battery Charger w/ LED Indicator Light
- Smart charging technology for maximum battery efficiency
- Provides real-time battery charge status
- Battery Water Level Sensor Probe
- Let's you know when water needs to be added to battery
- Audible Alarm For Local Notification
- Alarms sounds when high water even occurs and pump is running
- Tether Float Switch
- Allows the pump to provide automatic operation
- Includes Thermoplastic Battery Box
- Corrosion-resistant design provides safer operation
- Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
- 1-Year Limited Warranty
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
8 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
1000
GPH @ 5 feet
1000
GPH @ 10 feet
1000
Discharge Port Size
1-1/4 Inch
Built-in check Valve
Yes
Battery Recharger
.4 Amps
Submersible
Yes
Remote Monitoring
No
Accessories
Float Switch
Yes
Overview
Assembly Required
Yes
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
7.5 Inches
Product Width
4.5 Inches
Product Height
6.5 Inches
Style

GPH
1000
Gallons
Switch Type

Style
Back-up
GPH
1000 Gallons
Switch Type
Vertical
Features
Features
- Barnes BUS - 12V Battery Backup Sump Pump System
- Provides added protection during power outages and high water events
- Starts Automatically When Your Existing Pump Fails
- Operates independently from primary sump pump
- 12-Volt, Non-Corrosive Thermoplastic Pump
- Safe for use in fresh or salt (water softener residue) water
- Pumps 1000 gallons-per-hour @ 10' lift
- 12V Battery Charger w/ LED Indicator Light
- Smart charging technology for maximum battery efficiency
- Provides real-time battery charge status
- Battery Water Level Sensor Probe
- Let's you know when water needs to be added to battery
- Audible Alarm For Local Notification
- Alarms sounds when high water even occurs and pump is running
- Tether Float Switch
- Allows the pump to provide automatic operation
- Includes Thermoplastic Battery Box
- Corrosion-resistant design provides safer operation
- Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
- 1-Year Limited Warranty
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
8 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
1000
GPH @ 5 feet
1000
GPH @ 10 feet
1000
Discharge Port Size
1-1/4 Inch
Built-in check Valve
Yes
Battery Recharger
.4 Amps
Submersible
Yes
Remote Monitoring
No
Accessories
Float Switch
Yes
Overview
Assembly Required
Yes
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
7.5 Inches
Product Width
4.5 Inches
Product Height
6.5 Inches
Product Specs
+−
Specifications
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
8 Feet
Oil Free Motor
Yes
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
1000
GPH @ 5 feet
1000
GPH @ 10 feet
1000
Discharge Port Size
1-1/4 Inch
Built-in check Valve
Yes
Battery Recharger
.4 Amps
Submersible
Yes
Remote Monitoring
No
Accessories
Float Switch
Yes
Overview
Assembly Required
Yes
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
7.5 Inches
Product Width
4.5 Inches
Product Height
6.5 Inches
