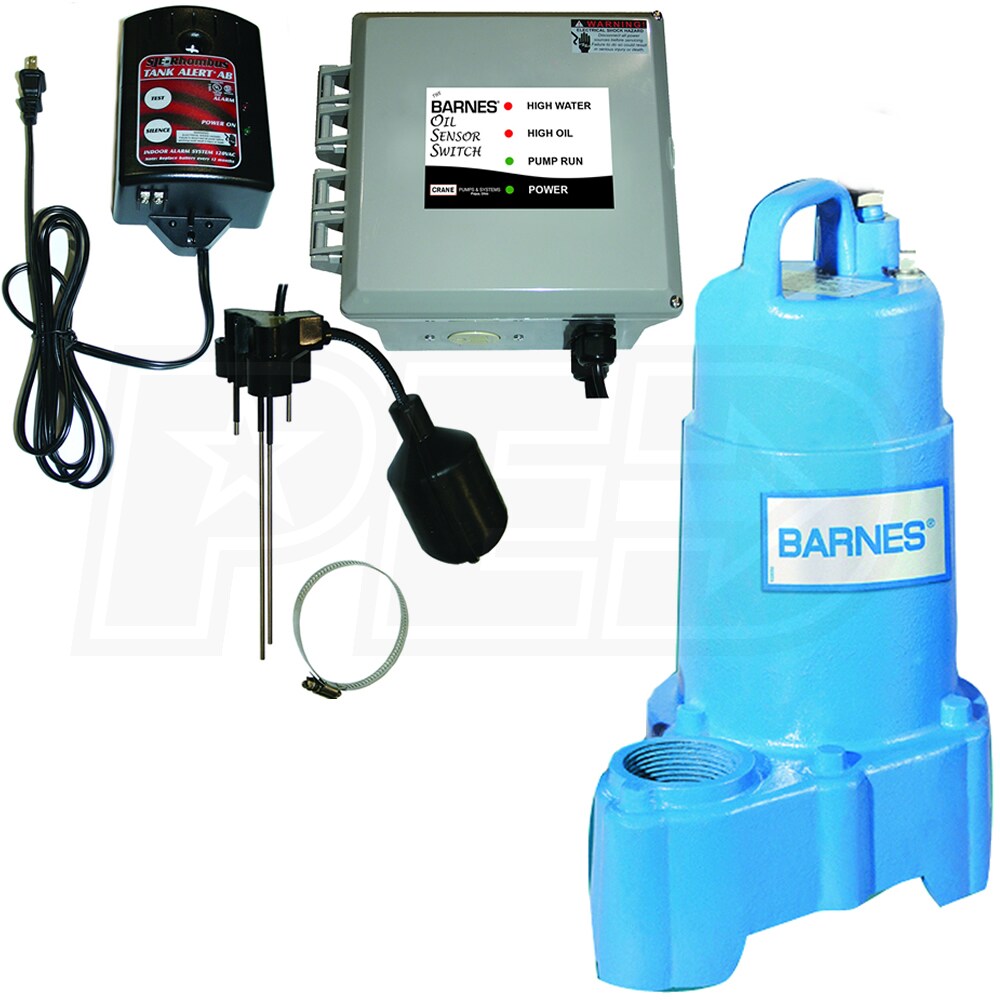

Barnes BOSS Oil Sensor Switch w/ SP75X 3/4 HP Sump Pump & Hight Water Alarm

Model:

135785

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes BOSS Oil Sensor Switch w/ SP75X 3/4 HP Sump Pump & Hight Water Alarm
Barnes BOSS Oil Sensor Switch w/ SP75X 3/4 HP Sump Pump & Hight Water Alarm
Model: 135785
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4800 Gallons

Switch Type

Electronic

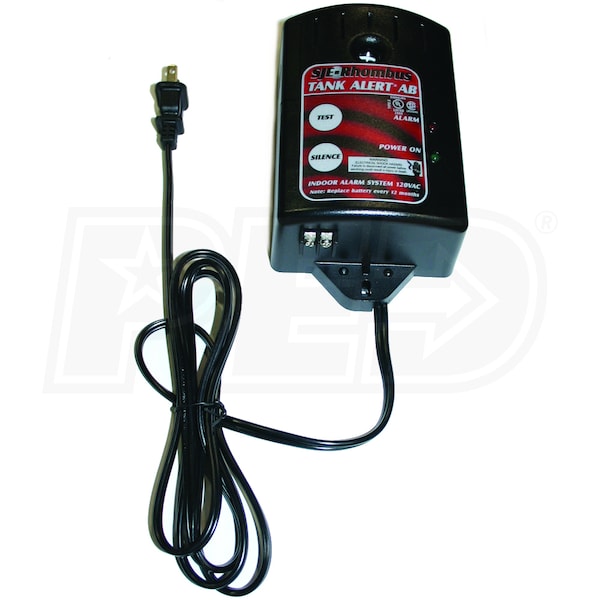

  • Barnes BOSS Oil Sensor Switch & High Water Alarm w/ 3/4 HP Sump Pump
  • For simplex pump control in elevator pits
  • Allows for water to be removed while preventing oil from being pump

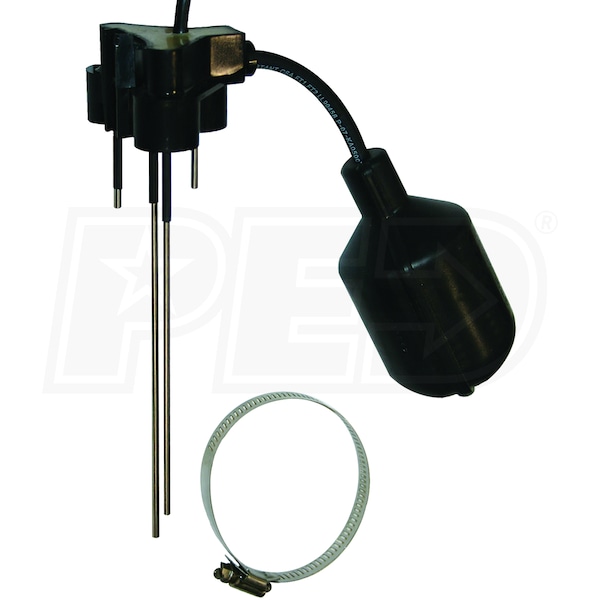

  • Oil Watch Switch - ASME A17.1 Compliant
  • Activates the pump to remove water from the pit
  • Stops the pump before oil/harmful substances are discharged

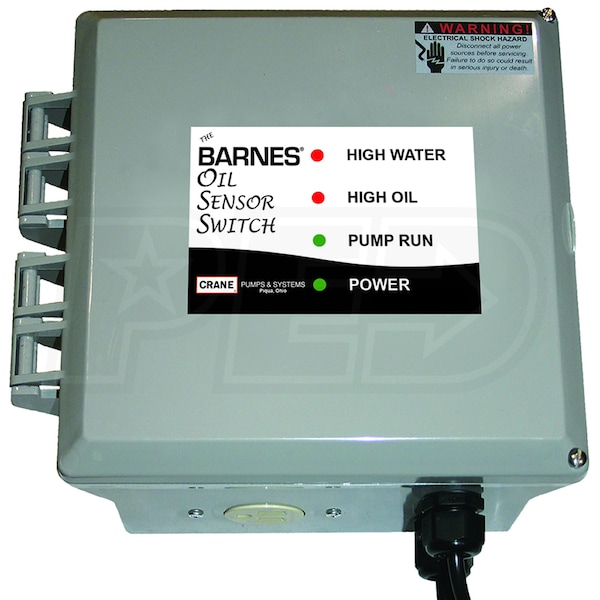

  • NEMA 1 Control Panel
  • Designed for indoor applications
  • LED Indicator Lights
  • Makes it easy to identify a high water / high water situation
  • Auxiliary Contacts
  • For connection of remote alarms, auto-dialers & building automation systems
  • 120V 15A Pump Plug Receptacle & 10-Foot Power Cord (120V)
  • Allows for easier installation

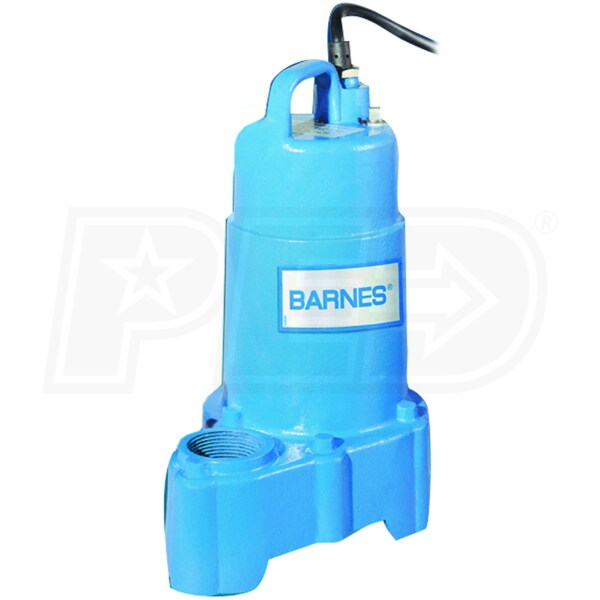

  • Barnes SP75X - 3/4 HP Cast Iron & Thermoplastic Sump Pump
  • Cast Iron motor housing and Thermoplastic pump body & strainer
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 9.8 FLA
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

135785
specs product image PID-80827
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
9.8
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
33 Feet
Float Type
Electronic
GPH @ 0 feet
4800
GPH @ 5 feet
4800
GPH @ 10 feet
4260
GPH @ 15 feet
3780
GPH @ 20 feet
3120
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.75 hp
Accessories
Control Box
Yes
Float Switch
Yes
Overview
Weight
44 Pounds
Consumer Warranty
2 Years
