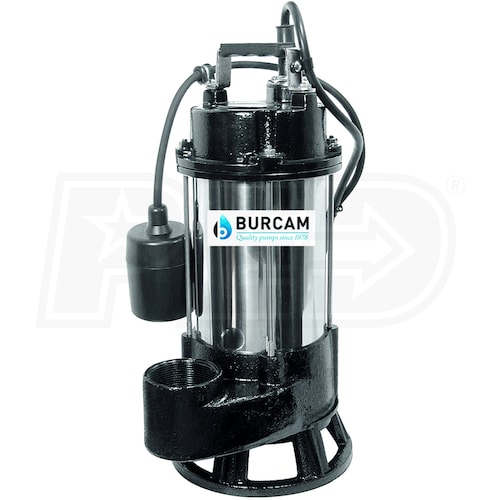

Burcam Pumps 3/4 HP Heavy Duty Cast Iron Stainless Steel Sewage Pump (2") w/ Piggyback Tether Float
Model:
400416T
+
Share This Product
Features
Style
Sewage Pump
GPH
4200 Gallons
Switch Type
Piggy-Back Tether
- Automatic Submersible Grinder-Type Sewage Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 25-feet
- Heavy-Duty, Stainless Steel & Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- Cast Iron Grinder Impeller (No Grinder Blades)
- Designed for better flow when small solids are present
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- 3/4 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Bottom Suction Base w/ Cast Iron Grip Plate
- Provides ample space between intake and bottom of sewage pit
- 2" Discharge
- Solid sewage handling capabilities
- Piggyback Tether Float Switch
- Provides reliable automatic operation
- 15' Cord
- Great for standard applications and deeper pits
Specifications
400416T
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
18
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3300
GPH @ 15 feet
2400
GPH @ 20 feet
1500
Discharge Port Size
2 Inch
Built-in check Valve
No
Float On
12-15 Inches
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.75 hp
Overview
Weight
36 Pounds
Consumer Warranty
2 Years
Product Width
10 Inches
Product Height
18.5 Inches
UPC
772910004163
Reviews
(23)
Burcam 400416T Reviews & Ratings
Product Q&A
(4)
Product Questions
Answered by Jim, the Sump Pump Expert
Question
+−
My grinder is not coming on. When I lift the float it does nothing. No humming sound or anything. The outlet it's plugged into works and it's not jammed. If it were jammed I would at least here the motor attempting to run. Any suggestions?
Chad
from Maryland
June 29, 2016
Answer
Chad,
Unfortunately, it sounds like you are going to have to reach out to Bur-Cam on this one. I would highly suggest giving them a call at (800) 361-1820.
Please let us know if we can help with anything else.
Unfortunately, it sounds like you are going to have to reach out to Bur-Cam on this one. I would highly suggest giving them a call at (800) 361-1820.
Please let us know if we can help with anything else.
Was this answer helpful?
Yes
0
No
0
Question
+−
Will this pump handle feminine products down the toilet?
Ryan S
from Washington
January 29, 2013
Answer
Thank you for visiting Sump Pumps Direct. In answer to your question, the Bur-Cam Grinder Pump, model 400416T will NOT handle feminine products and could jam if they are introduced into the sewage basin. My only recommendation would be to attempt to prevent that from happening or looking into installing a sewage pump with a 3" discharge. The larger discharge would handle the feminine products and a bit larger "solids" to pass through the pump. Possible options would be the Liberty Pumps - 3/4 HP Cast Iron Sewage Pump (3") w/ Piggyback Tether Float, model LE71A3, the Wayne 1/2 HP Commercial Grade Cast Iron Sewage Pump (2"/3") (Non-Automatic), model SEP4 or the Wayne 3/4 HP Commercial Grade Cast Iron Sewage Pump (2"/3") (Non-Automatic), model SEP5. Please note that the Wayne pumps are rated at 240 volts and would also require the purchase of a TETHER FLOAT SWITCH.
Was this answer helpful?
Yes
0
No
0
Question
+−
I need to lift sewage about 12 feet. Will this pump work well enough
Paul
from Colorado
April 11, 2012
Answer
This pump is designed and suitable for raw sewage applications where the total head requirements do not exceed 25 feet.
Was this answer helpful?
Yes
0
No
0
Question
+−
what is the voltage 220 or 110?
Ken Fors
from Connecticut
January 08, 2012
Answer
The Bur-Cam model 400416T is rated at 115 volts.
Was this answer helpful?
Yes
0
No
0
