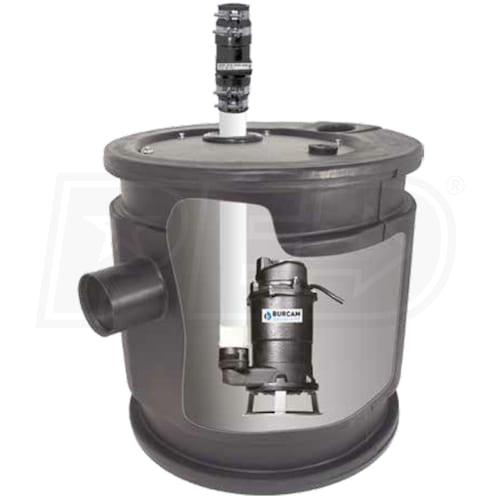

Burcam Pumps 401446P - 3/4 HP Cast Iron Grinder Pump System (24" x 24")
Model: 401446P
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
1875
Gallons
Switch Type

Style
Sewage Pump
GPH
1875 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Complete Residential Grinder Pump System
- Everything you need in one box
- Automatic Submersible Grinder Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 35'
- Vertical Float Switch
- Provides reliable automatic operation
- Heavy-Duty Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- 3/4 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Stainless Steel Cutter & Cutter Ring
- Designed for better flow when small solids are present
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- Bottom Suction Design w/ Elevated Pump Base
- Provides ample space between intake and bottom of sewage pit
- 24" x 24" Durable Polyethylene Sewage Basin (45-Gallon)
- Designed with a 4-inch inlet hub for easy installation
- 24" Polyethylene Sewage Basin Cover
- Accommodates 3-inch vent & 2-inch discharge pipes
- All Includes 2-Inch Check Valve & 2-Inch PVC Discharge Pipe
- Additional Pipe To Connect To Sewage/Septic Line (Not Included)
- 2 Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Oil Free Motor
No
Nominal Voltage
120 Volt
Starting Amps
14
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
35 Feet
Float Type
Vertical Float
GPH @ 0 feet
1875
GPH @ 5 feet
1875
GPH @ 10 feet
1875
GPH @ 20 feet
1635
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Float On
12-15 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.75 hp
Overview
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
24 Inches
Product Height
24 Inches
UPC
772910014469
Style

GPH
1875
Gallons
Switch Type

Style
Sewage Pump
GPH
1875 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Complete Residential Grinder Pump System
- Everything you need in one box
- Automatic Submersible Grinder Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 35'
- Vertical Float Switch
- Provides reliable automatic operation
- Heavy-Duty Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- 3/4 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Stainless Steel Cutter & Cutter Ring
- Designed for better flow when small solids are present
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- Bottom Suction Design w/ Elevated Pump Base
- Provides ample space between intake and bottom of sewage pit
- 24" x 24" Durable Polyethylene Sewage Basin (45-Gallon)
- Designed with a 4-inch inlet hub for easy installation
- 24" Polyethylene Sewage Basin Cover
- Accommodates 3-inch vent & 2-inch discharge pipes
- All Includes 2-Inch Check Valve & 2-Inch PVC Discharge Pipe
- Additional Pipe To Connect To Sewage/Septic Line (Not Included)
- 2 Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Oil Free Motor
No
Nominal Voltage
120 Volt
Starting Amps
14
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
35 Feet
Float Type
Vertical Float
GPH @ 0 feet
1875
GPH @ 5 feet
1875
GPH @ 10 feet
1875
GPH @ 20 feet
1635
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Float On
12-15 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.75 hp
Overview
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
24 Inches
Product Height
24 Inches
UPC
772910014469
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Oil Free Motor
No
Nominal Voltage
120 Volt
Starting Amps
14
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
35 Feet
Float Type
Vertical Float
GPH @ 0 feet
1875
GPH @ 5 feet
1875
GPH @ 10 feet
1875
GPH @ 20 feet
1635
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Float On
12-15 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.75 hp
Overview
Weight
49 Pounds
Consumer Warranty
2 Years
Product Width
24 Inches
Product Height
24 Inches
UPC
772910014469
