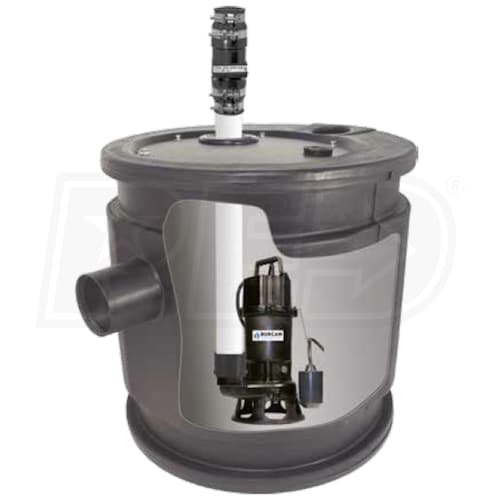

Burcam Pumps 401447P - 1 HP Cast Iron Grinder Pump System (24" x 24")
Burcam Pumps 401447P - 1 HP Cast Iron Grinder Pump System (24" x 24")
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
Product Description
+−
Style
GPH
2535
Gallons
Switch Type
Style
Sewage Pump
GPH
2535 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Complete Residential Grinder Pump System
- Everything you need in one box
- Automatic Submersible Grinder-Type Sewage Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 50-feet
- Heavy-Duty, Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- Cast Iron Grinder Impeller (No Grinder Blades)
- Designed for better flow when small solids are present
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- 1 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Bottom Suction Base w/ Cast Iron Grip Plate
- Provides ample space between intake and bottom of sewage pit
- 2" Discharge
- Solid sewage handling capabilities
- Piggyback Tether Float Switch
- Provides reliable automatic operation
- 24" x 24" Durable Polyethylene Sewage Basin (45-Gallon)
- Designed with a 4-inch inlet hub for easy installation
- 24" Polyethylene Sewage Basin Cover
- Accommodates 3-inch vent & 2-inch discharge pipes
- All Includes 2-Inch Check Valve & 2-Inch PVC Discharge Pipe
- Additional Pipe To Connect To Sewage/Septic Line (Not Included)
- Requires 20-Amp Breaker
- 2 Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2535
GPH @ 5 feet
2535
GPH @ 10 feet
2535
GPH @ 20 feet
2375
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Max Head
50 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Consumer Warranty
2 Years
Product Width
24 Inches
Product Height
24 Inches
UPC
772910014476
Style
GPH
2535
Gallons
Switch Type
Style
Sewage Pump
GPH
2535 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Complete Residential Grinder Pump System
- Everything you need in one box
- Automatic Submersible Grinder-Type Sewage Pump
- Ideal for residential and light commercial applications
- Total head for this pump should not exceed 50-feet
- Heavy-Duty, Epoxy-Coated Cast Iron Construction
- Corrosion-resistant design for extended pump life
- Cast Iron Grinder Impeller (No Grinder Blades)
- Designed for better flow when small solids are present
- Does Not Handle Baby Wipes, Feminine Hygiene Products, Etc.
- 1 HP Oil-Filled Motor
- Provides maximum motor cooling efficiency
- Thermal & Overload Protection
- Extends the life of the pump and provides added safety
- Bottom Suction Base w/ Cast Iron Grip Plate
- Provides ample space between intake and bottom of sewage pit
- 2" Discharge
- Solid sewage handling capabilities
- Piggyback Tether Float Switch
- Provides reliable automatic operation
- 24" x 24" Durable Polyethylene Sewage Basin (45-Gallon)
- Designed with a 4-inch inlet hub for easy installation
- 24" Polyethylene Sewage Basin Cover
- Accommodates 3-inch vent & 2-inch discharge pipes
- All Includes 2-Inch Check Valve & 2-Inch PVC Discharge Pipe
- Additional Pipe To Connect To Sewage/Septic Line (Not Included)
- Requires 20-Amp Breaker
- 2 Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2535
GPH @ 5 feet
2535
GPH @ 10 feet
2535
GPH @ 20 feet
2375
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Max Head
50 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Consumer Warranty
2 Years
Product Width
24 Inches
Product Height
24 Inches
UPC
772910014476
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Thermal Protection
Yes
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
2535
GPH @ 5 feet
2535
GPH @ 10 feet
2535
GPH @ 20 feet
2375
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Max Head
50 Feet
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Consumer Warranty
2 Years
Product Width
24 Inches
Product Height
24 Inches
UPC
772910014476
