Goulds EP0411F
Goulds EP0411F
Hover to zoom
1 Of 5

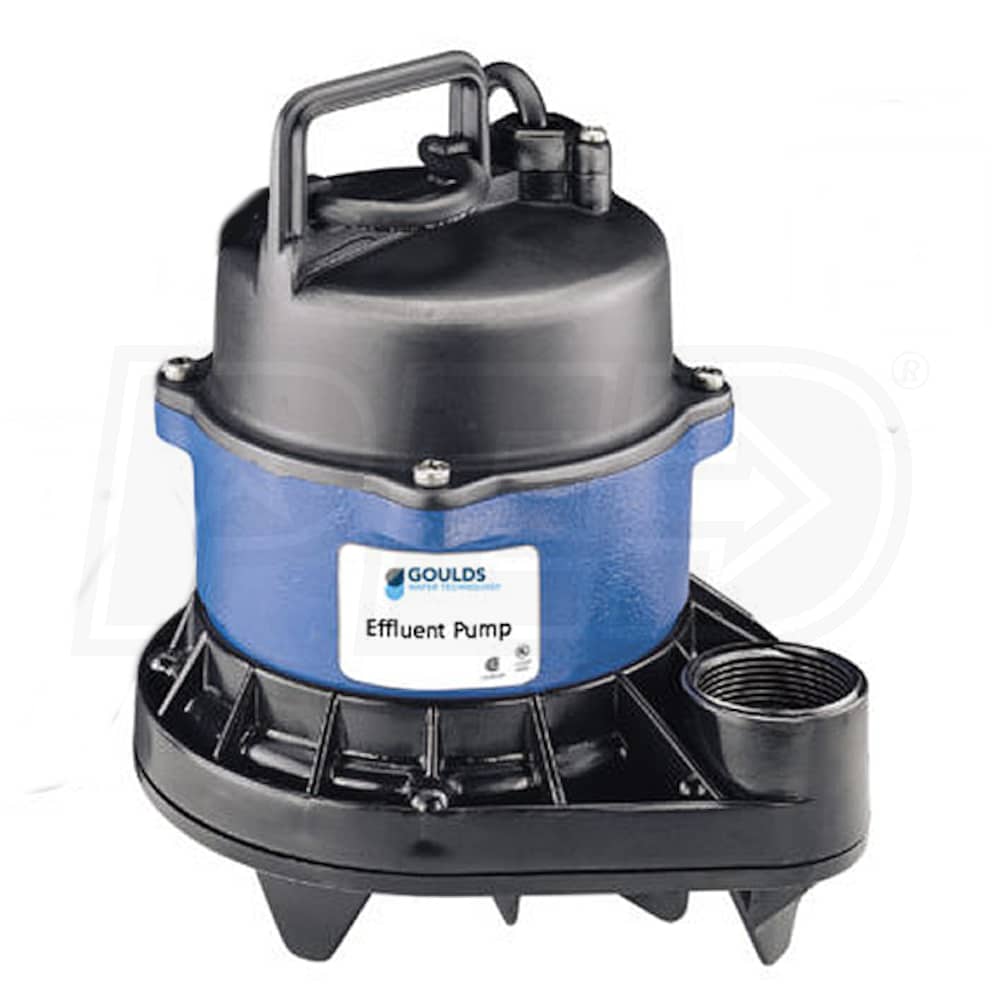

Goulds EP04 Series - 4/10 HP Cast Iron / Thermoplastic Effluent Pump (Non-Automatic) (20' Cord)

Model:

EP0411F

Write A Review
Add to Cart for Price
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 13th
Shipping to60601

Goulds EP04 Series - 4/10 HP Cast Iron / Thermoplastic Effluent Pump (Non-Automatic) (20' Cord)
Goulds EP04 Series - 4/10 HP Cast Iron / Thermoplastic Effluent Pump (Non-Automatic) (20' Cord)
Model: EP0411F
Add to Cart for Price
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

3180 Gallons

Switch Type

None

  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Goulds EP04 Series Submersible Effluent Pump
  • Ideal for residential greywater & septic applications
  • Sturdy Thermoplastic Casing, Cover & Base
  • Provides exceptional strength and minimizes corrosion
  • Heavy-Duty Cast Iron Housing
  • Robust design provides maximum heat dissipation
  • 4/10 HP (1550 RPM) Motor
  • Oil-filled and thermally protected w/ auto reset
  • Fully-submerged design provides efficient heat transfer
  • Thermoplastic, Semi-Open Impeller
  • Provides the ability to pass solids up to 3/4"
  • 1-1/2" NPT Discharge
  • Will replace most pumps without any plumbing changes
  • Heavy-Duty Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • Carbon-Rotary / Ceramic-Stationary Mechanical Seal
  • Capable of running dry without damage to components
  • 20' SJTW Power Cord w/ 3-Prong Plug
  • Meets the needs of most septic applications
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP0411F
specs product image PID-96935
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
2760
GPH @ 15 feet
2160
GPH @ 20 feet
1260
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
21 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
9.25 Inches
Product Width
7.5 Inches
Product Height
10.125 Inches
UPC
697666007469
