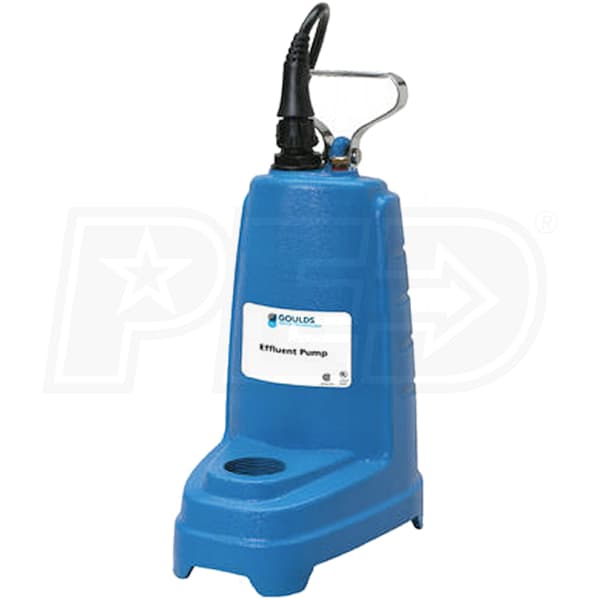

Goulds PE-Series - 1/3 HP Cast Iron Effluent Pump w/ Piggyback Tether Float

Model:

PE31P1

Write a Review
$326.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks

Goulds PE-Series - 1/3 HP Cast Iron Effluent Pump w/ Piggyback Tether Float
Goulds PE-Series - 1/3 HP Cast Iron Effluent Pump w/ Piggyback Tether Float
Model: PE31P1
$326.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

3120 Gallons

Switch Type

Piggy-Back Tether

  • Goulds PE Series Submersible Effluent Pump
  • Ideal for mound, dosing & low pressure pipe (LPP) systems
  • Cast Iron Pump Body
  • Robust design provides maximum heat dissipation
  • 1/3 HP Shaded Pole Motor
  • Oil-filled and thermally protected w/ auto reset
  • Designed for Continuous Operation
  • Can be operated continuously without damage when fully submerged
  • Piggyback Tether Float Switch (Not Shown)
  • Allows for automatic operation in 18" or larger basins
  • Thermoplastic Impeller
  • Easily pass solids up to 1/2"
  • Carbon, Ceramic, BUNA & Stainless Steel Mechanical Seal
  • Provides superior abrasion resistance
  • 1-1/2" NPT Discharge
  • Will replace most pumps without any plumbing changes
  • Stainless Steel Fasteners
  • Helps extend the lifespan of the pump
  • 20' SJTW Power Cord w/ 3-Prong Plug
  • Plugs into a standard outlet
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

PE31P1
specs product image PID-96945
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
13
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3120
GPH @ 5 feet
3120
GPH @ 10 feet
2520
GPH @ 15 feet
1740
GPH @ 20 feet
960
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Max Head
25 Feet
Engine
Horsepower
.33 hp
Overview
Weight
24 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
9.6 Inches
Product Width
6.4 Inches
Product Height
12.1 Inches
UPC
697666225023
