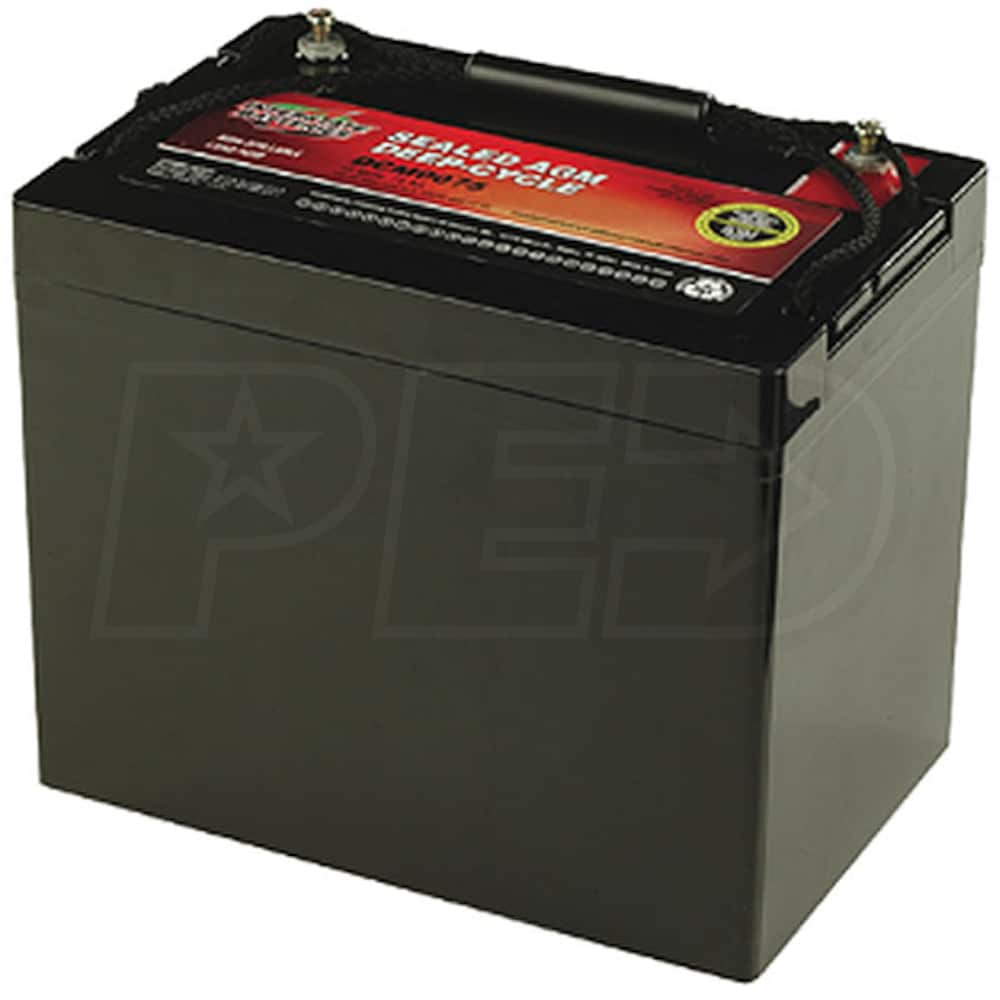

Interstate Batteries 12V Maintenance-Free Deep Cycle 75AH AGM Battery
Model: DCM0075
+
Share This Product
-
Product Description
-
8Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- 75-Amp Hour 12-Volt Maintenance-Free AGM Battery
- Deep cycle design works with virtually all backup systems
- Absorbent Glass Mat (AGM)
- Efficient glass recombination of up to 99%
- Maintenance-Free
- Sealed, spill-proof and no exposure to hazardous chemicals
- Computer-Generated Grid Design & Robust Plate
- Optimized for high-power density & extended cycle life
- One-Way Pressure Relief Value
- Flame arresting for safety and long life
- Variable Orientation Design & Polypropylene Case /Cover
- Thermally welded case-to-cover bond stops leakage
- Upright, side or end mounting recommended
- Capacity:
- 20 Hour Rate (3.8A) 76AH
- 10 Hour Rate (7A) 70AH
- 5 Hour Rate (11.2A) 56AH
- 1 Hour Rate (38A) 38AH
- Safe For Ground & Air Transportation In The U.S.
- 1 Year Warranty (Group Size 24)
Specifications
Overview
Weight
54 Pounds
Consumer Warranty
1 Year
Product Length
10.23 Inches
Product Width
6.6 Inches
Product Height
8.3 Inches
Features
Features
- 75-Amp Hour 12-Volt Maintenance-Free AGM Battery
- Deep cycle design works with virtually all backup systems
- Absorbent Glass Mat (AGM)
- Efficient glass recombination of up to 99%
- Maintenance-Free
- Sealed, spill-proof and no exposure to hazardous chemicals
- Computer-Generated Grid Design & Robust Plate
- Optimized for high-power density & extended cycle life
- One-Way Pressure Relief Value
- Flame arresting for safety and long life
- Variable Orientation Design & Polypropylene Case /Cover
- Thermally welded case-to-cover bond stops leakage
- Upright, side or end mounting recommended
- Capacity:
- 20 Hour Rate (3.8A) 76AH
- 10 Hour Rate (7A) 70AH
- 5 Hour Rate (11.2A) 56AH
- 1 Hour Rate (38A) 38AH
- Safe For Ground & Air Transportation In The U.S.
- 1 Year Warranty (Group Size 24)
Specifications
Overview
Weight
54 Pounds
Consumer Warranty
1 Year
Product Length
10.23 Inches
Product Width
6.6 Inches
Product Height
8.3 Inches
Product Specs
+−
Specifications
Overview
Weight
54 Pounds
Consumer Warranty
1 Year
Product Length
10.23 Inches
Product Width
6.6 Inches
Product Height
8.3 Inches
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Sump Pump Expert
+−
Will this battery fit into the Wayne ES25 sump pump system box?
John
from Alabama
March 19, 2017
Answer
The battery box that is included with that Wayne ESP25 Battery Backup system measures: 13 inches long 7 inches wide 9 inches tall. The dimensions on the battery are: Product Length - 10.23 InchesProduct Width - 6.6 InchesProduct Height - 8.3 Inches Based on this, you will not have any problem with that Interstate battery.
