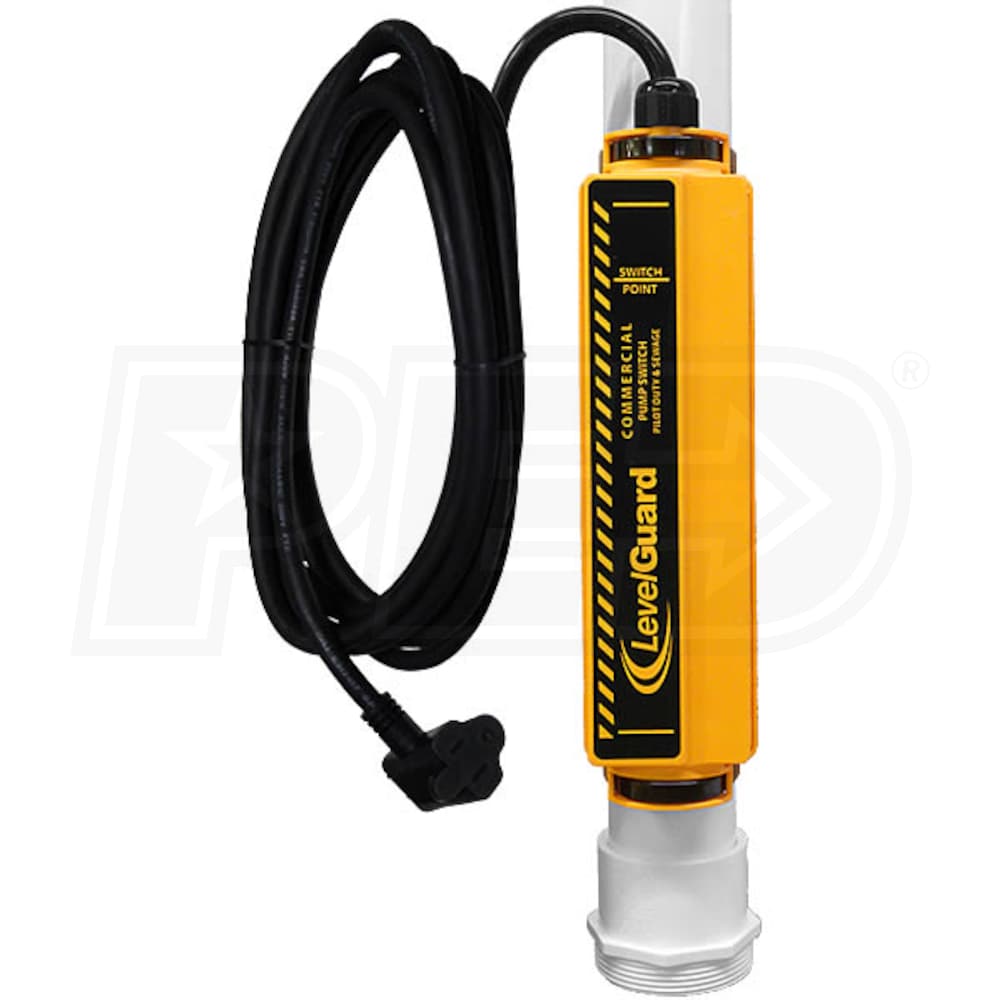

LevelGuard Z24803PTZ - Electronic Sewage & Effluent Pump Switch

LevelGuard Z24803PTZ - Electronic Sewage & Effluent Pump Switch
Model: Z24803PTZ
$119.99
In-Stock
Ships Friday, Feb 23rd
Tax-Free (Except IL)
In-Stock No Sales Tax* (Except IL)$119.99Buy Now
No Sales Tax* (Except IL)$119.99Visit Site

(as of 07:32 CST - Details) Sales Tax Extra $116.45Visit Site
In-Stock
Ships Friday, Feb 23rd
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
  • Product Description
  • 21
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • LevelGuard™ Electronic Pump Control
  • The most dependable electronic switch on the market today
  • Designed For Sewage & Effluent Applications
  • For sewage pits, lift stations, underground vaults and wet wells
  • “Field-Effect” Sensing Technology
  • Reliably detects water level and solid-state digital switching
  • NO MOVING PARTS
  • Eliminates the #1 failure mode in traditional sewage pump systems
  • Heavy-Duty Water-Tight Thermoplastic Shell
  • Requires less working space than mechanical float switches
  • 8"-10" Effective Differental Range
  • Two upper level sensors for reliable operation, cycle after cycle
  • Tested To Over 4 Million Cycles w/ Fused Over-Current Protection
  • Outperforms conventional float switches 7 to 1
  • Protects against pump electrical failures
  • 15' Cord, Piggyback Plug - Ideal For Retrofit, Maintenance/Repair
  • **Rated For Pumps Up To 1/2 HP (Please Review Spec Sheet)**
  • Should Not Be Used If Water Softener Empties Into Pit
  • May Cycle Rapidly On Install - Allow 24 Hrs For Switch To Adjust
  • 5-Year Limited Warranty - UL-Listed & RoHS Compliant
Specifications
Motor
Power Cord Length
15 Feet
Pump
Float Type
Electronic
Overview
Made in USA
Yes
Weight
2.5 Pounds
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
Consumer Warranty
5 Years
UPC
816073010132


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • LevelGuard™ Electronic Pump Control
  • The most dependable electronic switch on the market today
  • Designed For Sewage & Effluent Applications
  • For sewage pits, lift stations, underground vaults and wet wells
  • “Field-Effect” Sensing Technology
  • Reliably detects water level and solid-state digital switching
  • NO MOVING PARTS
  • Eliminates the #1 failure mode in traditional sewage pump systems
  • Heavy-Duty Water-Tight Thermoplastic Shell
  • Requires less working space than mechanical float switches
  • 8"-10" Effective Differental Range
  • Two upper level sensors for reliable operation, cycle after cycle
  • Tested To Over 4 Million Cycles w/ Fused Over-Current Protection
  • Outperforms conventional float switches 7 to 1
  • Protects against pump electrical failures
  • 15' Cord, Piggyback Plug - Ideal For Retrofit, Maintenance/Repair
  • **Rated For Pumps Up To 1/2 HP (Please Review Spec Sheet)**
  • Should Not Be Used If Water Softener Empties Into Pit
  • May Cycle Rapidly On Install - Allow 24 Hrs For Switch To Adjust
  • 5-Year Limited Warranty - UL-Listed & RoHS Compliant
Specifications
Motor
Power Cord Length
15 Feet
Pump
Float Type
Electronic
Overview
Made in USA
Yes
Weight
2.5 Pounds
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
Consumer Warranty
5 Years
UPC
816073010132
Product Specs
+
Specifications
Motor
Power Cord Length
15 Feet
Pump
Float Type
Electronic
Overview
Made in USA
Yes
Weight
2.5 Pounds
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
Consumer Warranty
5 Years
UPC
816073010132
Reviews
(21)
+
LevelGuard Z24803PTZ Reviews & Ratings
95% of Reviewers Recommend This Product
Product Q&A
(3)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
When I installed my LevelGuard, it did not empty all the water from the sump pit right away. The pump ran several times until finally the water level went below the lower switch point line. Is something wrong?
Francis J
from Illinois
July 31, 2014
Answer
No. When the LevelGuard is first plugged in, it initiates a 'sump calibration routine'. This runs as follows assuming the sump pit is full of water:

Runs pump for 15 seconds, then stops.
Runs pump for 16 seconds, then stops.
Runs pump for 17 seconds, then stops.
This continues, increasing the pumping time in 1 second increments up to 99 seconds or until the bottom sensor is reached.
The purpose of this routine is to protect the equipment from running continuously in the event of a failure of the LevelGuard to detect a change of state by the lower sensor. This might occur if buildup of foreign material on the LevelGuard occurs or an object such as a sock falls into the pit and clings/covers LevelGuard's sensor area.
+
The side of my sump pit gets covered with a scum build up that can get up to two inches thick. Will this cause a problem with this field sensing technology?
Kurtis Y
from Iowa
July 15, 2014
Answer
Thank you for your interest in Sump Pumps Direct. I brought your concerns up with the folks at LevelGuard and received the following response.

Yes, build up like that can definitely prevent activation of the LevelGuard sensors. This could particularly be of concern if the sump was filling and the LG fails to sense the rise in water level. Heavy build up of material on the LG surface can also cause false activation of the sensors but this is less of a problem due to the pump run-on prevention feature built into the software.
Regarding their "Peanut Butter Test" Video that we show on our site:
While this seems like a straight forward question the answer is highly dependent upon what the build-up material consists of. For a non-porous, non conductive material such as peanut butter the thickness would be 4 to 5 mm. For a material that soaks up water as it sits it would be considerably lower.


In addition, all manufacturers do recommend that you inspect your pumps, switches, batteries (if applicaple) and basins every 3-6 months to insure that the pumps and switches are operating correctly and there is no debris that might impede their operation. In addition, batteries should be checked for acid levels and terminals should be clean.
If you have additional questions, please let me know.
+
How does the level guard switch work
Gary R
from Ohio
May 03, 2014
Answer
Thank you for your interest in Sump Pumps Direct. The LevelGuard switch works based on Field Effect sensing technology that was developed by TouchSensors, Inc out of Wheaton, IL.
Field-Effect sensors are digital, solid-state electronic devices that can detect conductive materials such as water or the human touch. The sensor’s cell design uses an integrated circuit (IC) that switches its output state when the conductive target is sensed. A Field-Effect cell is comprised of three main elements, the IC, a unique sensing electrode geometry, and two tuning resistors. Moreover, Field-Effect requires no moving parts, floats, software, or any other mechanism to operate.
When 5 VDC is supplied to the sensor, a low power, invisible field is created. The field emanates directly through any protective dielectric barrier such as plastic or glass that may surround or cover the sensor. When a conductive object or material enters the field, the sensor detects the change and indicates an event has occurred with a corresponding output signal. The input stimulus to the field is typically water in most liquid level sensing applications, as is the case in TouchSensor’s™ LevelGuard Home Sump Pump Control product line.
