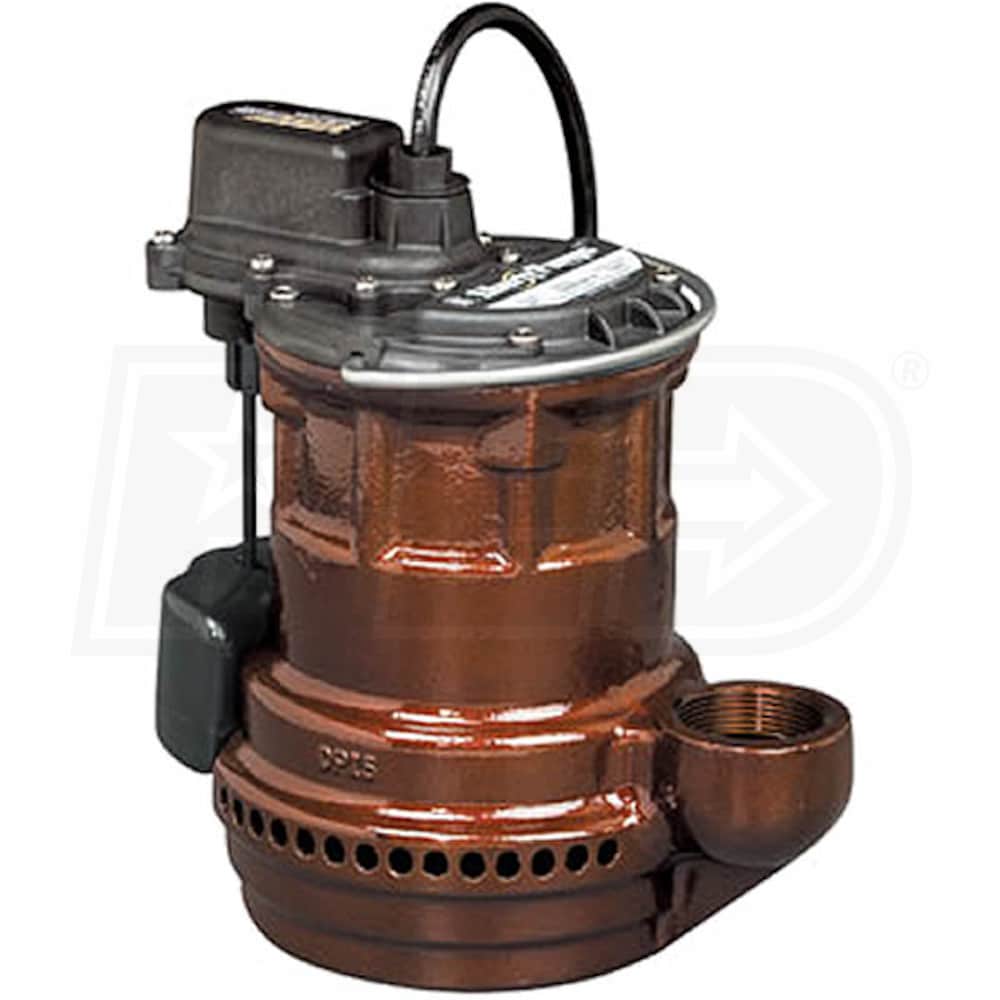

Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 247-2
$140.70
Only 1 In-Stock
Ships Wednesday, Jul 18th
Free Shipping &
Tax-Free (Except IL)
Only 1 In-Stock
Ships Wednesday, Jul 18th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Primary Sumps Pumps
GPH
2040
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2040 Gallons
Switch Type
Vertical
Features
Features
  • Automatic Submersible Cast Iron Sump Pump
  • A "workhorse" designed for years of reliable operation
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • Rugged, Energy Efficient & Thermally Protected 1/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 8-Vane, Glass Reinforced Thermoplastic Impeller
  • Non-cloggy design for superior solid handling (up to 1/4")
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 25' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Engine
Horsepower
.25 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.25 inch
Float Type
Vertical Float

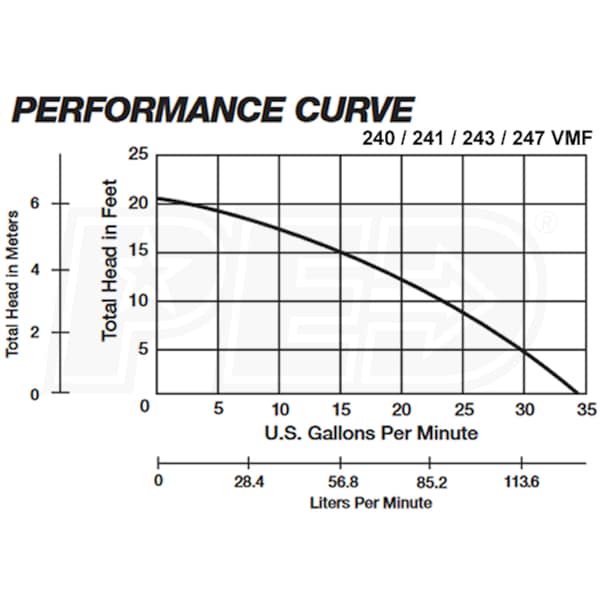

GPH @ 0 feet
2040
GPH @ 5 feet
1800
GPH @ 10 feet
1440
GPH @ 15 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Overview
Weight
21 Pounds
Product Length
9 Inches
Product Width
9 Inches
Product Height
10 Inches
Consumer Warranty
3 Years
UPC
671812103267
Style
Primary Sumps Pumps
GPH
2040
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2040 Gallons
Switch Type
Vertical
Features
Features
  • Automatic Submersible Cast Iron Sump Pump
  • A "workhorse" designed for years of reliable operation
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • Rugged, Energy Efficient & Thermally Protected 1/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 8-Vane, Glass Reinforced Thermoplastic Impeller
  • Non-cloggy design for superior solid handling (up to 1/4")
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 25' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
Specifications
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Engine
Horsepower
.25 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.25 inch
Float Type
Vertical Float
GPH @ 0 feet
2040
GPH @ 5 feet
1800
GPH @ 10 feet
1440
GPH @ 15 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Overview
Weight
21 Pounds
Product Length
9 Inches
Product Width
9 Inches
Product Height
10 Inches
Consumer Warranty
3 Years
UPC
671812103267
Product Specs
+
Specifications
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Engine
Horsepower
.25 hp
Pump
Housing Material
Cast Iron
Solids Handling Size
.25 inch
Float Type
Vertical Float
GPH @ 0 feet
2040
GPH @ 5 feet
1800
GPH @ 10 feet
1440
GPH @ 15 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Overview
Weight
21 Pounds
Product Length
9 Inches
Product Width
9 Inches
Product Height
10 Inches
Consumer Warranty
3 Years
UPC
671812103267
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Sump Pump Expert
icon-social-fb1
+
How reliable is the magnetic vertical float, and can it be replaced or repaired if it fails in 2-3 years?
Richard K.
from New Jersey
February 03, 2017
Answer
The Liberty VMF vertical float switch has been very reliable and probably one of the more reliable switches. While these are more prone to fail however, over the actual pump, they can be replaced if needed. Unfortunately, we do not offer these, so you would need to contact Liberty tech support (800-543-2550) for assistance on this when needed.
