Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Model:

247

Write a Review
$146.25
Free Shipping
  Learn More About Free Freight
In-Stock
Ships Wednesday, May 12th
Shipping to60601
Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Liberty Pumps 247 VMF - 1/4 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 247
$146.25
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

2040 Gallons

Switch Type

Vertical

  • Automatic Submersible Cast Iron Sump Pump
  • A "workhorse" designed for years of reliable operation
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • Rugged, Energy Efficient & Thermally Protected 1/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • 8-Vane, Glass Reinforced Thermoplastic Impeller
  • Non-cloggy design for superior solid handling (up to 1/4")
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

247
Base
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.25 inch
Float Type
Vertical Float

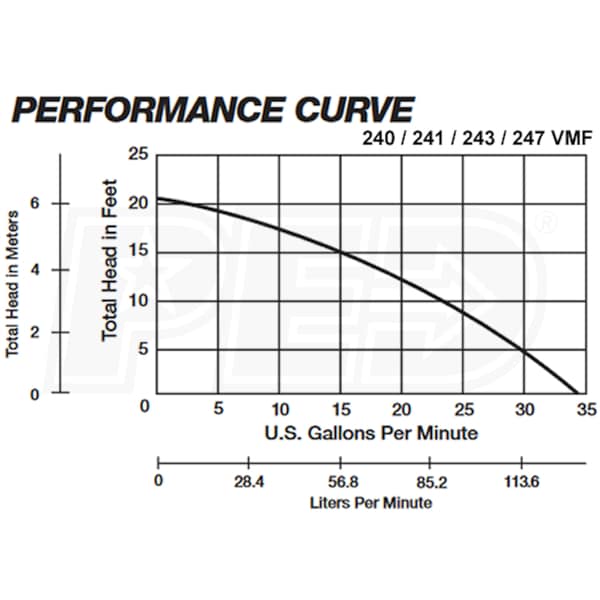

GPH @ 0 feet
2040
GPH @ 5 feet
1800
GPH @ 10 feet
1440
GPH @ 15 feet
900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7 Inches
Float Off
3.5 Inches
Manual Override
No
Engine
Horsepower
.25 hp
Overview
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
9 Inches
Product Height
10 Inches
UPC
671812002478

Reviews

(11)
Liberty Pumps 247 Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Sump Pump Expert
Question
+
How reliable is the magnetic vertical float, and can it be replaced or repaired if it fails in 2-3 years?
Richard K.
from New Jersey
February 03, 2017
Answer
The Liberty VMF vertical float switch has been very reliable and probably one of the more reliable switches. While these are more prone to fail however, over the actual pump, they can be replaced if needed. Unfortunately, we do not offer these, so you would need to contact Liberty tech support (800-543-2550) for assistance on this when needed.
Was this answer helpful?
Yes
1
No
0
