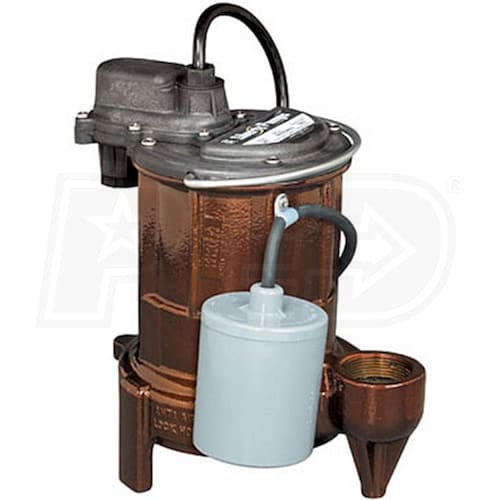

Liberty Pumps 253 - 1/3 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float

Model:

253

Write a Review
$188.25
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-3 Business Days
Shipping to60601
Liberty Pumps 253 - 1/3 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float
Liberty Pumps 253 - 1/3 HP Cast Iron Submersible Sump Pump w/ Piggyback Tether Float
Model: 253
$188.25
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

Primary

GPH

3000 Gallons

Switch Type

Piggy-Back Tether



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Submersible Cast Iron Sump Pump
  • A "workhorse" designed for years of reliable operation
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Quick-Disconnect Wide Angle Piggyback Tether Float Switch
  • Provides automatic operation in sump pits as small as 14-inches
  • Rugged, Energy Efficient & Thermally Protected 1/3 HP Motor
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

253
specs product image PID-8571
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Piggy-Back Tether Switch

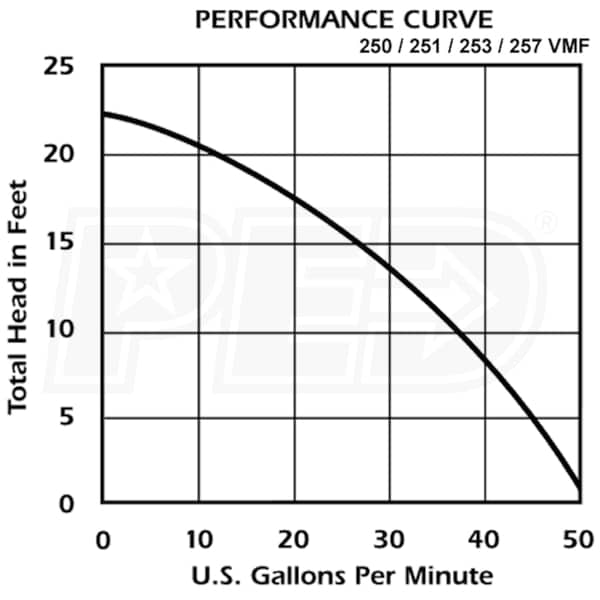

GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
10 Inches
Float Off
4 Inches
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
24 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
10.7 Inches
UPC
671812002539

Reviews

(16)
Liberty Pumps 253 Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Jim, the Sump Pump Expert
Question
+
Liberty Pump Customer Service Tech recommended Liberty 253 for our application (Pit is recessed in floor' Pit measures 19" in diameter and 24" deep; Washer drains into utility sink and then into pit; Outlet pipe measure 2" OD). Would 257 be as good or better choice for this application?
Mike S
from Ohio
November 13, 2014
Answer
Thank you for your interest in Sump Pumps Direct. While the model 257 is the same pump as the 253, the 257 comes with a vertical float switch instead of the tether float switch on the 253. The tether float switches do tend to hold up and last a bit longer in cases where you also have laundry water draining into the pump. So, based on this, I would recommend sticking with the Liberty model 253.
Was this answer helpful?
Yes
0
No
0
