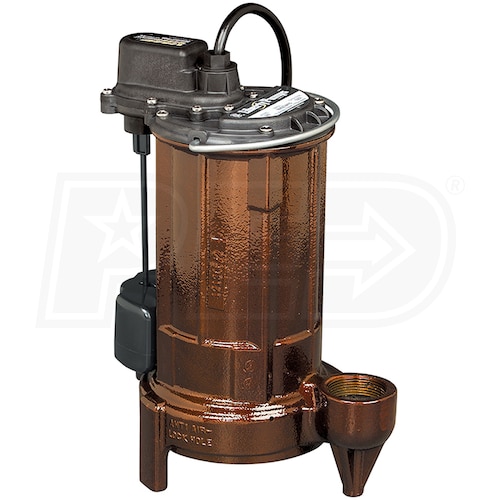

Liberty Pumps 297 - 3/4 HP Cast Iron Sump/Effluent Pump w/ Vertical Float

Model:

297

Write A Review
$411.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 16th
Shipping to60601

Liberty Pumps 297 - 3/4 HP Cast Iron Sump/Effluent Pump w/ Vertical Float
Liberty Pumps 297 - 3/4 HP Cast Iron Sump/Effluent Pump w/ Vertical Float
Model: 297
$411.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

5040 Gallons

Switch Type

Vertical

  • Submersible Cast Iron Sump Pump
  • For high head (up to 48') and/or high output applications
  • Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Rugged, Energy Efficient & Thermally Protected 3/4 HP Motor
  • Hermetically sealed, permanently lubricated design
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge (3/4" Solid Handling)
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners
  • Increases the lifespan of the pump even in the harshest sump pits
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • Removable Stainless Steel Bottom Screen
  • Keeps larger debris from damaging the pump
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

297
specs product image PID-71419
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
3/4 inch
Handles Solids
Yes
Float Type
Vertical Float

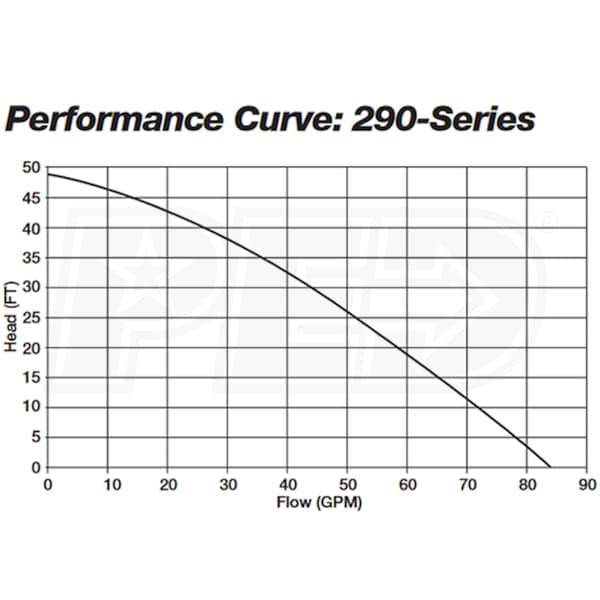

GPH @ 0 feet
5040
GPH @ 5 feet
4680
GPH @ 10 feet
4320
GPH @ 15 feet
3900
GPH @ 20 feet
3540
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9.5
Float Off
4
Max Head
48 Feet
Engine
Oil-Cooled
Yes
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
671812121049
