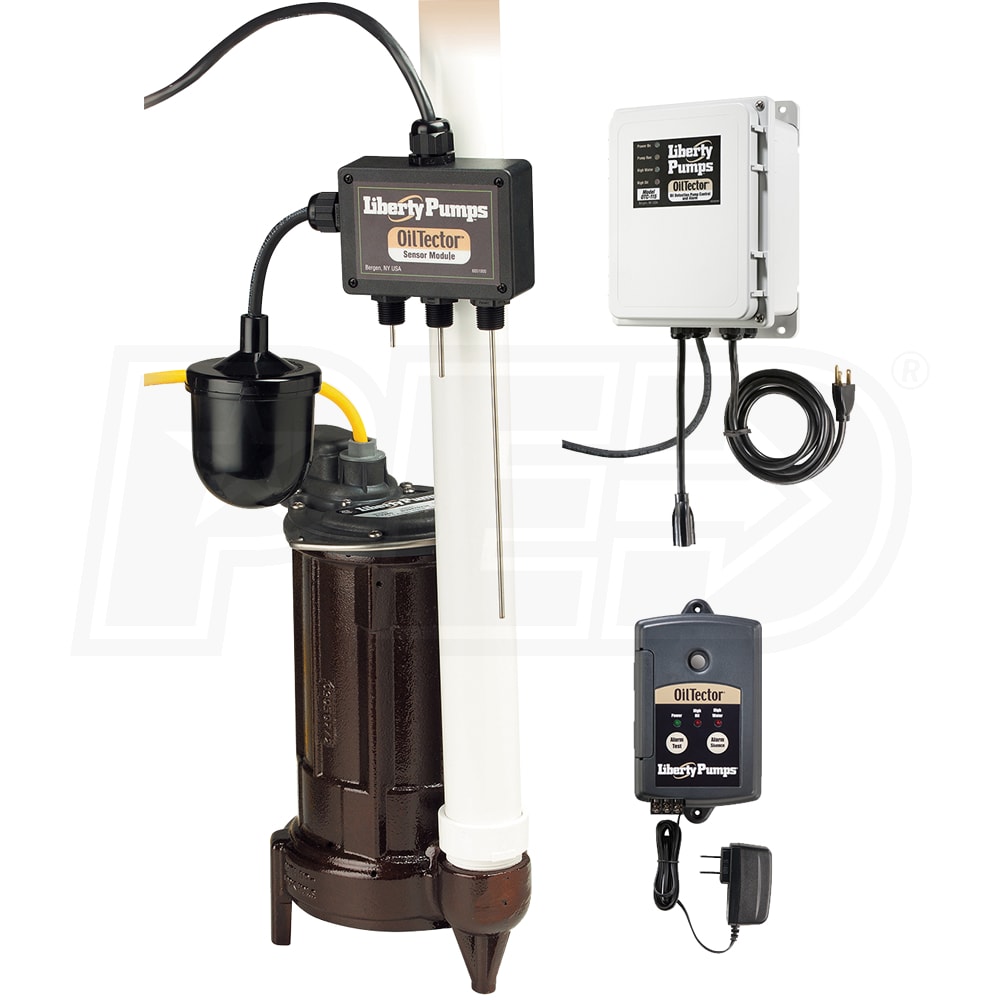

Liberty Pumps ELV250 - 1/3 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm
Model: ELV250
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
3000
Gallons
Switch Type

Style
Primary
GPH
3000 Gallons
Switch Type
Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 1/3 HP ELV-Series OilTector® Elevator Sump Pump System
- For elevator sump pits, transformer vaults and other applications
- For applications where oil and water must be detected
- OilTector® System - ASME A17.1 Compliant
- Activates the pump to remove water from the pit
- Stops the pump before oil/harmful substances are discharged
- Heavy-Duty Cast Iron 1/3 HP Sump Pump
- With 25-foot oil-resistant SJEOOW cord for added protection
- Easy Installation
- No field adjustments required, just install & plug-in
- NEMA 1 Control Panel
- Separate pump and control circuits for added protection
- Remote Alarm w/ Audio/Visual Warnings
- Also provides additional auxiliary (24 VDC) contacts
- For connection to building automation system or SCADA system
- Easy To Read Warning Lights
- Power on, pump run, high water and high oil
- Includes:
- 1/3 HP Sump Pump, Level Sensor, Alarm & Control Panel
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
2640
GPH @ 10 feet
2160
GPH @ 15 feet
1560
GPH @ 20 feet
840
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
34 Pounds
Consumer Warranty
3 Years
UPC
671812114874
Style

GPH
3000
Gallons
Switch Type

Style
Primary
GPH
3000 Gallons
Switch Type
Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- 1/3 HP ELV-Series OilTector® Elevator Sump Pump System
- For elevator sump pits, transformer vaults and other applications
- For applications where oil and water must be detected
- OilTector® System - ASME A17.1 Compliant
- Activates the pump to remove water from the pit
- Stops the pump before oil/harmful substances are discharged
- Heavy-Duty Cast Iron 1/3 HP Sump Pump
- With 25-foot oil-resistant SJEOOW cord for added protection
- Easy Installation
- No field adjustments required, just install & plug-in
- NEMA 1 Control Panel
- Separate pump and control circuits for added protection
- Remote Alarm w/ Audio/Visual Warnings
- Also provides additional auxiliary (24 VDC) contacts
- For connection to building automation system or SCADA system
- Easy To Read Warning Lights
- Power on, pump run, high water and high oil
- Includes:
- 1/3 HP Sump Pump, Level Sensor, Alarm & Control Panel
- 3-Year Limited Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
2640
GPH @ 10 feet
2160
GPH @ 15 feet
1560
GPH @ 20 feet
840
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
34 Pounds
Consumer Warranty
3 Years
UPC
671812114874
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
2640
GPH @ 10 feet
2160
GPH @ 15 feet
1560
GPH @ 20 feet
840
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.33 hp
Overview
Weight
34 Pounds
Consumer Warranty
3 Years
UPC
671812114874
