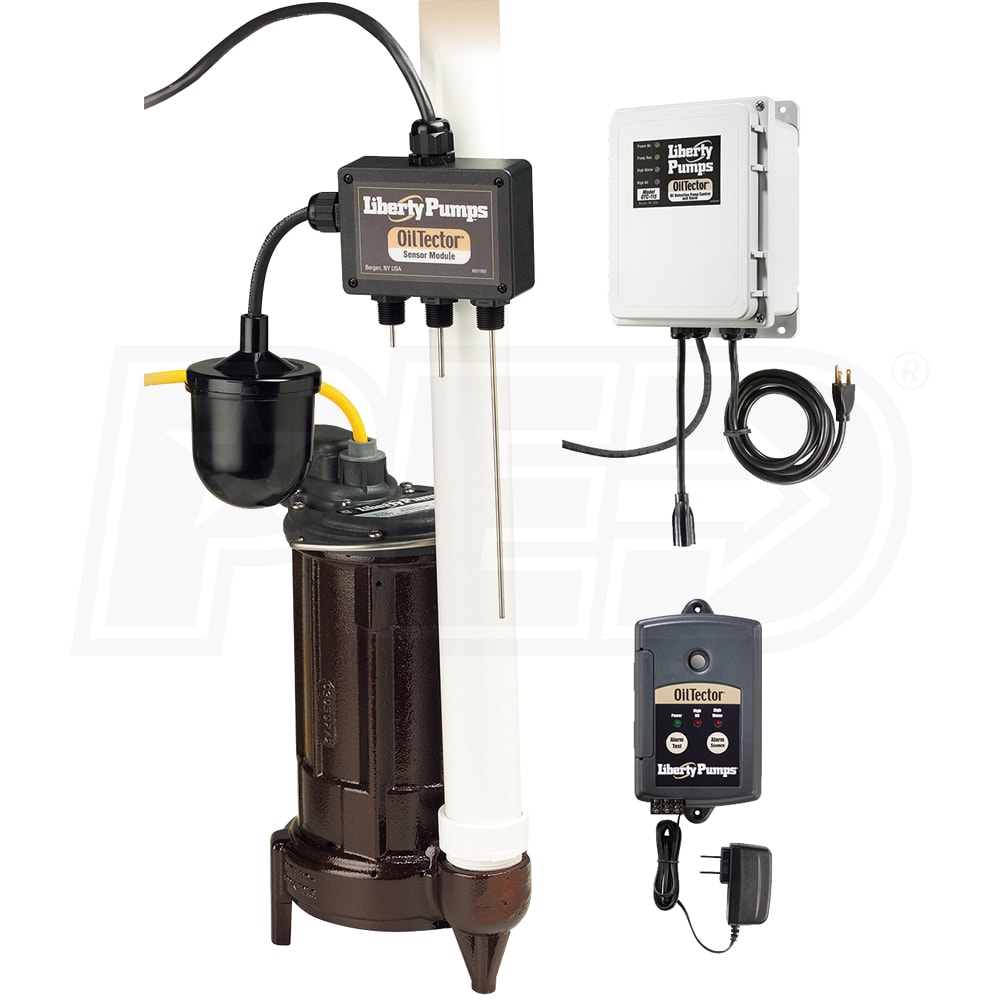

Liberty Pumps ELV280 - 1/2 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm

Model:

ELV280

Write A Review
$2,499.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Oct 10th
Shipping to60601

Liberty Pumps ELV280 - 1/2 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm
Liberty Pumps ELV280 - 1/2 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm
Model: ELV280
$2,499.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4020 Gallons

Switch Type

Tether



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 1/2 HP ELV-Series OilTector® Elevator Sump Pump System
  • For elevator sump pits, transformer vaults and other applications
  • For applications where oil and water must be detected
  • OilTector® System - ASME A17.1 Compliant
  • Activates the pump to remove water from the pit
  • Stops the pump before oil/harmful substances are discharged
  • Heavy-Duty Cast Iron 1/2 HP Sump Pump
  • With 25-foot oil-resistant SJEOOW cord for added protection
  • Easy Installation
  • No field adjustments required, just install & plug-in

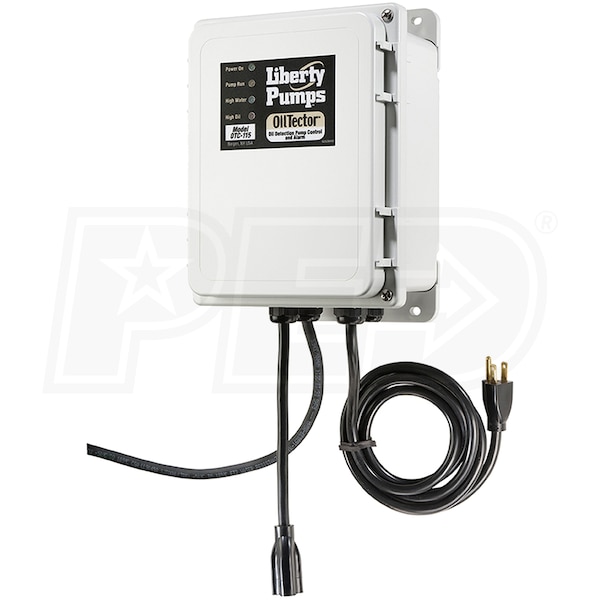

  • NEMA 1 Control Panel
  • Separate pump and control circuits for added protection

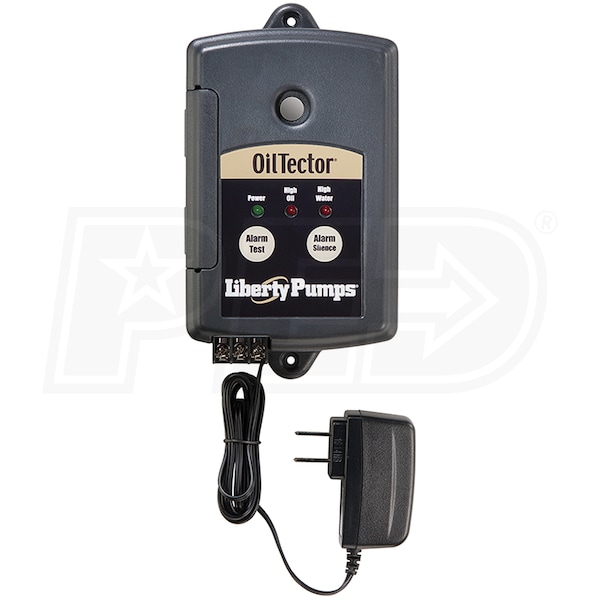

  • Remote Alarm w/ Audio/Visual Warnings
  • Also provides additional auxiliary (24 VDC) contacts
  • For connection to building automation system or SCADA system
  • Easy To Read Warning Lights
  • Power on, pump run, high water and high oil
  • Includes:
  • 1/2 HP Sump Pump, Level Sensor, Alarm & Control Panel
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ELV280
specs product image PID-8588
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
23
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.75 inch
Float Type
Tether Switch
GPH @ 0 feet
4020
GPH @ 5 feet
3780
GPH @ 10 feet
3360
GPH @ 15 feet
2970
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
40 Pounds
Consumer Warranty
3 Years
Product Style
Elevator
UPC
671812114850
