Liberty Pumps PC257-442-10A - 1/3 Primary (257) & StormCell® Standard Battery Backup Sump Pump System
Model: PC257-442-10A
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
3000
Gallons
Switch Type

Style
Combo
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
- Liberty Pumps 1/3 HP Primary (257) & StormCell® Standard Backup Sump Pump System
- Pre-assembled from the factory for quick and easy installation
- Fully Automatic Operation - Provides Uninterrupted Pumping
- Keeps the water moving during an outage or primary pump failure

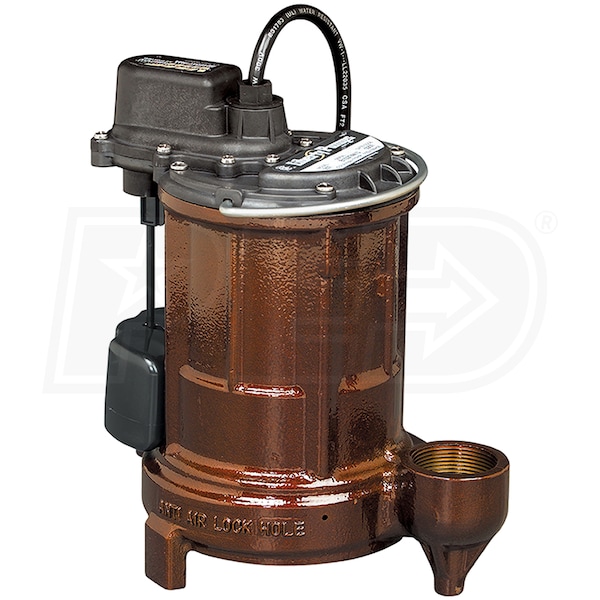

- 1/3 HP Cast Iron Primary Pump w/ Vertical Float Switch (257)
- Rugged, energy efficient & thermally protected 1/3 HP motor
- UNI-BODY casting w/ epoxy coated power coat finish
- Magnetically operated vertical float switch
- Energy-Efficient, High-Flow 12V DC Submersible Pump (442-10A)
- Corrosion-resistant, thermoplastic construction; Manufactured in the USA
- Pumps up to 2100 GPH @ 0' / 1800 GPH @ 10' on battery power
- Professional-Grade, StormCell® Standard 10A Charger/Controller
- Microprocessor controlled, Sophisticated algorithm continually tests charging process
- Remote, Wall-Mount User Interface w/ LCD Display
- Runs up to 12-hours on 9V battery w/ alarm active & up to 7-days in standby mode
- Auxiliary Contacts make it easy to connect to a home alarm/security system
- Super-Bright LED Alarm Ring & High Water Level Audio Alarm
- Red LED makes it easy to see when there's a problem
- Easily hear when a high water condition is occurring; Self-reset after alarm is silenced
- Compact, Snap-On Float Switch w/ 10-Foot Cord
- Fits on 1-1/2" discharge pipes; Allows for use in basins 18" and larger
- High water float acts as a redundant "On" float for the backup pump
- Also Includes:
- Battery Case, Check Valves & Plumbing / Mounting Components
- Requires (1) Type 27 or 31 Marine Battery (Sold Separately)
- 3-Year Limited Warranty
- ***Note - Main Image Is System Example - 2nd Image Is Primary Pump Included***
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Running Amps
5.2
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Backup GPH @ 0 feet
2760
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7
Float Off
3.5
Backup GPH @ 10 feet
1800
Battery Recharger
10 Amps
Engine
Horsepower
.3 hp
Overview
Weight
42 Pounds
Certification
SSPMA, CSA
Consumer Warranty
3 Years
UPC
671812137989
Style

GPH
3000
Gallons
Switch Type

Style
Combo
GPH
3000 Gallons
Switch Type
Vertical
Features
Features
- Liberty Pumps 1/3 HP Primary (257) & StormCell® Standard Backup Sump Pump System
- Pre-assembled from the factory for quick and easy installation
- Fully Automatic Operation - Provides Uninterrupted Pumping
- Keeps the water moving during an outage or primary pump failure
- 1/3 HP Cast Iron Primary Pump w/ Vertical Float Switch (257)
- Rugged, energy efficient & thermally protected 1/3 HP motor
- UNI-BODY casting w/ epoxy coated power coat finish
- Magnetically operated vertical float switch
- Energy-Efficient, High-Flow 12V DC Submersible Pump (442-10A)
- Corrosion-resistant, thermoplastic construction; Manufactured in the USA
- Pumps up to 2100 GPH @ 0' / 1800 GPH @ 10' on battery power
- Professional-Grade, StormCell® Standard 10A Charger/Controller
- Microprocessor controlled, Sophisticated algorithm continually tests charging process
- Remote, Wall-Mount User Interface w/ LCD Display
- Runs up to 12-hours on 9V battery w/ alarm active & up to 7-days in standby mode
- Auxiliary Contacts make it easy to connect to a home alarm/security system
- Super-Bright LED Alarm Ring & High Water Level Audio Alarm
- Red LED makes it easy to see when there's a problem
- Easily hear when a high water condition is occurring; Self-reset after alarm is silenced
- Compact, Snap-On Float Switch w/ 10-Foot Cord
- Fits on 1-1/2" discharge pipes; Allows for use in basins 18" and larger
- High water float acts as a redundant "On" float for the backup pump
- Also Includes:
- Battery Case, Check Valves & Plumbing / Mounting Components
- Requires (1) Type 27 or 31 Marine Battery (Sold Separately)
- 3-Year Limited Warranty
- ***Note - Main Image Is System Example - 2nd Image Is Primary Pump Included***
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Running Amps
5.2
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Backup GPH @ 0 feet
2760
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7
Float Off
3.5
Backup GPH @ 10 feet
1800
Battery Recharger
10 Amps
Engine
Horsepower
.3 hp
Overview
Weight
42 Pounds
Certification
SSPMA, CSA
Consumer Warranty
3 Years
UPC
671812137989
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Running Amps
5.2
Battery Included
No
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
2700
GPH @ 10 feet
2250
GPH @ 15 feet
1560
GPH @ 20 feet
720
Backup GPH @ 0 feet
2760
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
7
Float Off
3.5
Backup GPH @ 10 feet
1800
Battery Recharger
10 Amps
Engine
Horsepower
.3 hp
Overview
Weight
42 Pounds
Certification
SSPMA, CSA
Consumer Warranty
3 Years
UPC
671812137989
