Liberty Pumps XLSGX202M-2 - 2 HP Explosion Proof Omnivore® X2 2-Stage Grinder Pump (25' Cord - Bare Lead) (230V)

Model:

XLSGX202M-2

Write A Review
Coming Soon
Sorry, this product is no longer available.
Continue Shopping With These Categories
Liberty Pumps XLSGX202M-2 - 2 HP Explosion Proof Omnivore® X2 2-Stage Grinder Pump (25' Cord - Bare Lead) (230V)
Liberty Pumps XLSGX202M-2 - 2 HP Explosion Proof Omnivore® X2 2-Stage Grinder Pump (25' Cord - Bare Lead) (230V)
Model: XLSGX202M-2
Coming Soon
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Style

Sewage Pump

GPH

2280 Gallons

Switch Type

None

  • Liberty XLSG-Series Explosion Proof 2-Stage Omnivore® X2 Grinder Pump
  • For residential/commercial systems where hazardous location ratings* are required
  • Requires ISS/ISD control panel and capacitor kit for use
  • 2-Stage High-Head Design
  • Provides higher-pressure with maximum head of 185'
  • Uni-Body Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Rugged & Thermally Protected 2 HP Motor (230V - Single-Phase)
  • Hermetically sealed, permanently lubricated design
  • V-Slice® Cutter Technology (440 Stainless Steel)
  • Provides improved shredding performance over radial cutters
  • Back Vanes On Impeller & Spiraled Bottom Plate
  • Clog-free volute design provides superior solids clearing
  • Stainless Steel Rotor Shaft w/ Dual Seals
  • Silicon carbide w/ Viton® elastomers
  • Built-In Seal Fail Sensor
  • Integral moisture sensing probe (functionality requires indicator in ISS/ISD panel)
  • Non-Corrosive Stainless Steel Impeller
  • Increases the lifespan of the pump even in the harshest systems
  • 25-Foot Power Cord - Bare Lead
  • 1-1/2" Threads provided at power cords for optional conduit connections
  • Maximum Fluid Temperature: 104°F Continuous Duty Rated
  • 3-Year Limited Warranty
  • (GR20NS) Flange May Be Required For Installation (Not Included)
  • *Approved Hazardous Locations:
  • Class 1, Div. 1, Groups C & D - Class 1, Zone 1, Groups IIA & IIB
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

XLSGX202M-2
specs product image PID-80761
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
20
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
64.3
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
Yes

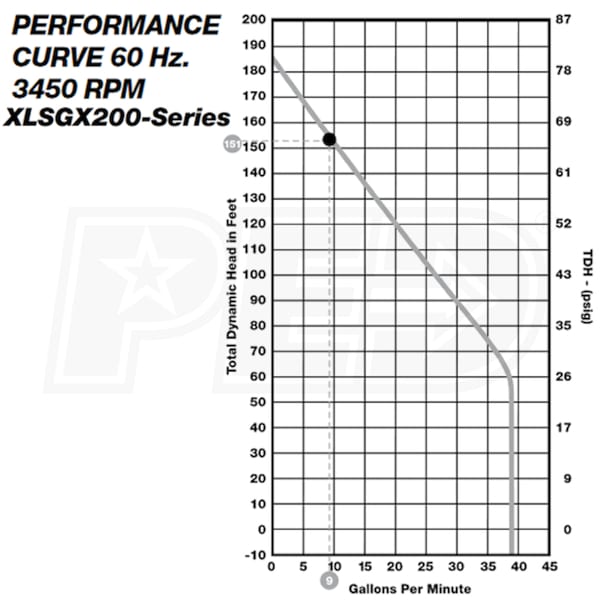

Total Head Lift
185 Feet
Float Type
No Switch
GPH @ 0 feet
2280
GPH @ 5 feet
2280
GPH @ 10 feet
2280
GPH @ 15 feet
2280
GPH @ 20 feet
2280
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Submersible
Yes
Engine
Horsepower
2 hp
Overview
Weight
127 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
9.66 Inches
Product Width
22.06 Inches
UPC
671812140552
