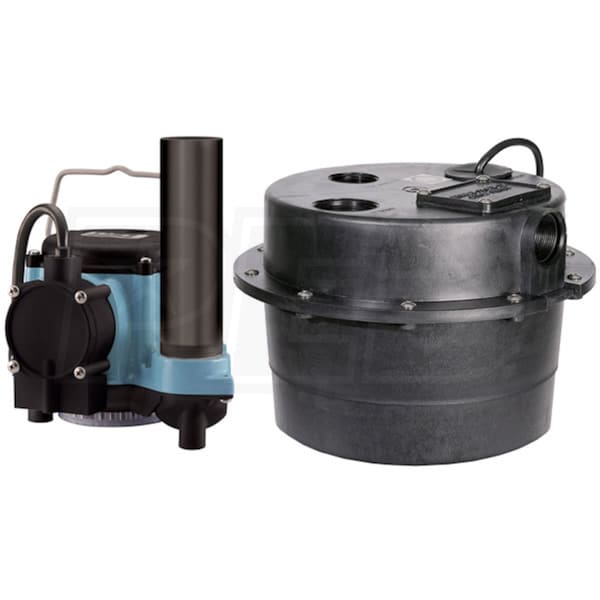

Little Giant WRSC-6 - Compact Drainosaur® 1/3 HP Sink/Drain Pump System w/ Diaphragm Switch

Model:

506065

Write a Review
$273.84
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days

Little Giant WRSC-6 - Compact Drainosaur® 1/3 HP Sink/Drain Pump System w/ Diaphragm Switch
Little Giant WRSC-6 - Compact Drainosaur® 1/3 HP Sink/Drain Pump System w/ Diaphragm Switch
Model: 506065
$273.84
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

2700 Gallons

Switch Type

Diaphragm

  • Compact Drainosaur® Water Removal System
  • Ideal for below grade sinks and wash machines
  • Pre-Assembled Design
  • Makes installing this system an easy task
  • Contractor-Grade Cast Iron Submersible Sump Pump
  • Protective epoxy coating provides excellent corrosion resistance
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Integral Diaphragm Pressure Switch
  • Provides reliable automatic operation
  • 3.5 Gallon Cylindrical Polypropylene Tank
  • Compact design for limited space applications
  • Easy Removable Screened Intake
  • Provides added protection and easy cleaning
  • Built-In O-Rings & Rubber Cord Grommet
  • Allows the basin to to be water tight
  • Additiona Specs:
  • 1-1/2" Intake & Discharge, 2" Vent, 8-Foot Power Cord
  • IAPMO Approved Basin
  • 2-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506065
specs product image PID-10808
Base
Min Sump Basin Size
15 Inch
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2700
GPH @ 5 feet
2700
GPH @ 10 feet
1740
GPH @ 15 feet
720
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
4-7 Inches
Float Off
1-3 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
25 Pounds
Consumer Warranty
2 Years
Product Width
14.5 Inches
Product Height
9.91 Inches
UPC
010121060654
